3M Products & Supplies

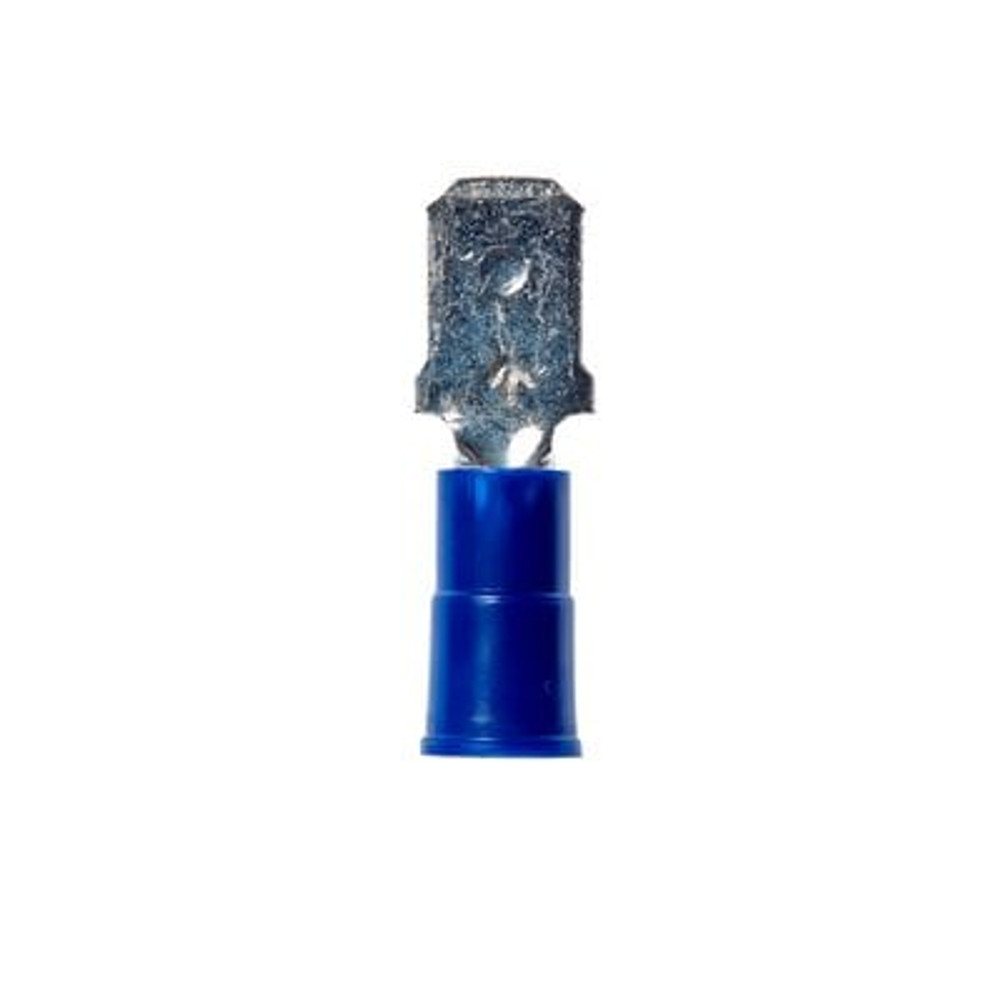

3M™ Scotchlok™ Male Disconnect, Vinyl Insulated Butted Seam MVU14-250DMK, 16-14 AWG, 1000/Case - 7100024640

Sold As: 1000-Pack
SKU: 7100024640
MPN: 7100024640
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017905
3M ID: 80610046973
5 Digit UPC: 1790
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Features

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Solution forWireless Network: Infrastructure Accessories
Barrel StyleButted
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Male Tab Width (W')0.25 Inch
UL File NumberE70512
Connection Width (Imperial)0.25
Fastener OrientationMale
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel Inside Diameter0.085 Inch
Terminal TypeDisconnect
Terminal StyleStandard
Pad Width0.25
Minimum Conductor Size (Imperial)16 AWG
Packaging1000 per bulk box
Disconnect TypeMale
Tab Width0.375
Maximum Conductor Size (Metric)2.5 mm²
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial)0.17
Overall Length (Imperial)0.93
Units per Case1000.0
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Imperial) UOMin
Connection Width (Metric)6.35
