3M Products & Supplies

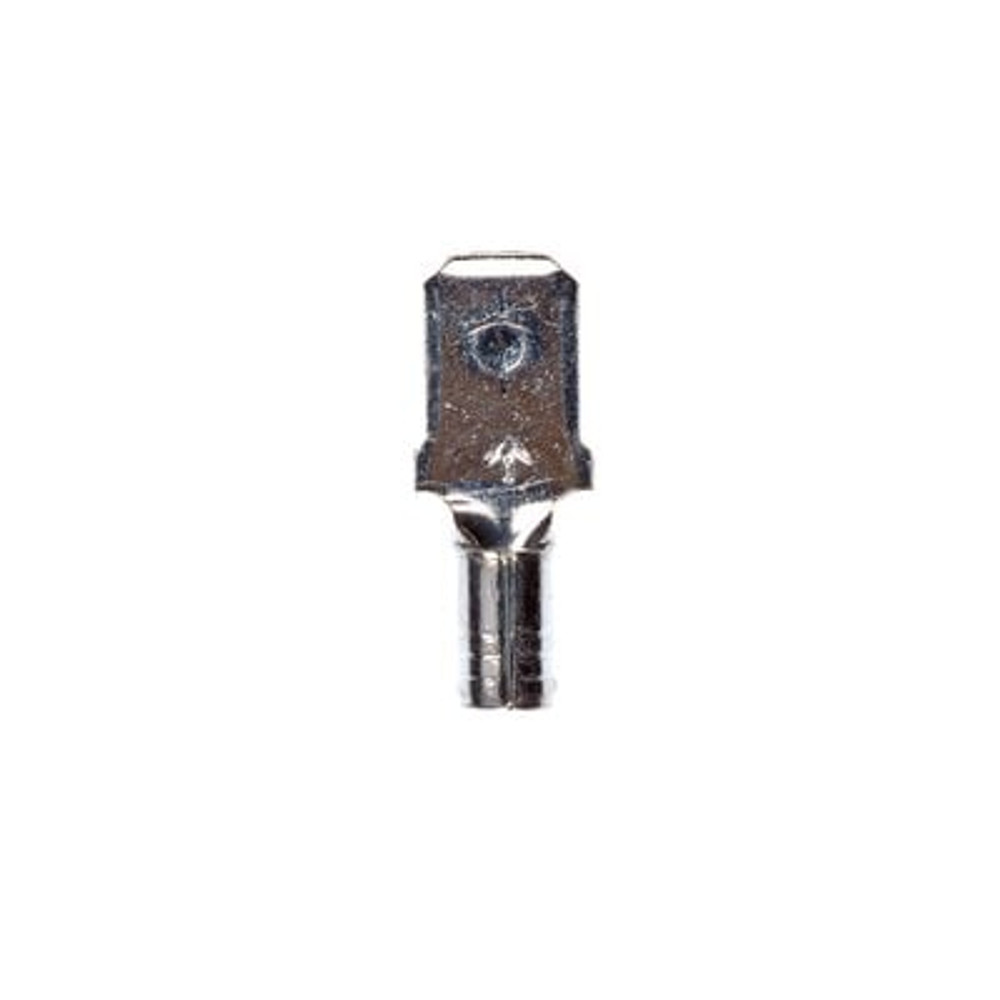

3M™ Scotchlok™ Male Disconnect, Non-Insulated Butted Seam MU14-250DMK, 16-14 AWG, 1000/Case - 7100164052

Sold As: 1000-Pack
SKU: 7100164052
MPN: 7100164052
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017844
3M ID: 80610046916
5 Digit UPC: 1784
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Male Disconnect terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
  • This male disconnect terminal offers excellent holding force
  • Accommodates wire sizes 16 to 14 AWG
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)2.5 mm²
Fastener OrientationMale
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Terminal TypeDisconnect
Male Tab Width (W')0.25 Inch
Maximum Conductor Size (Imperial)14 AWG
Tab Width0.187
Disconnect TypeMale
Minimum Conductor Size (Metric)1.5 mm²
Barrel Length (Imperial)0.25 Inch
Packaging1000 per bulk box
Terminal StyleStandard
Connection Width (Metric)6.35
Barrel Inside Diameter0.085 Inch
Pad Width0.25
Units per Case1000.0
UL File NumberE70512
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Imperial) UOMin
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.25
Barrel StyleButted
Insulation MaterialNon-insulated
Overall Length (Imperial)0.73
