3M Products & Supplies

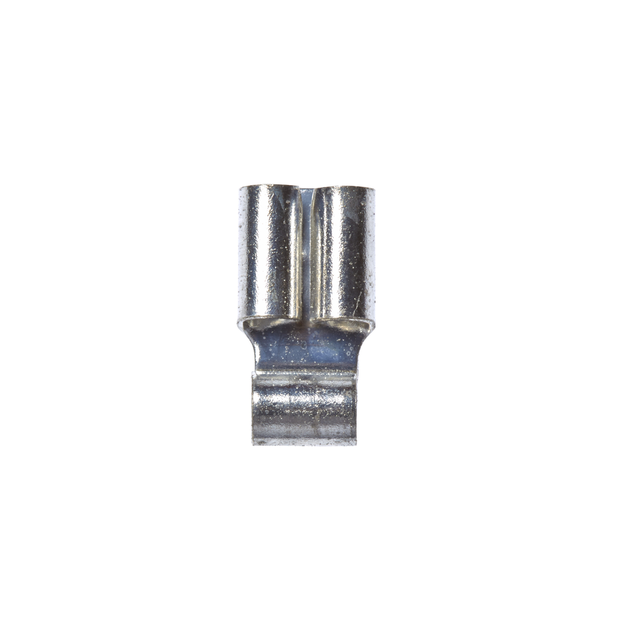

3M™ Scotchlok™ Female Disconnect, Non-Insulated Butted Seam MU14-187DFK, 16-14 AWG, 1000/Case - 7100164047

Sold As: 1000-Pack
SKU: 7100164047
MPN: 7100164047
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017677
3M ID: 80610046684
5 Digit UPC: 1767
$179.77 ($0.18 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Allows for quick and easy disconnect of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Length (Imperial)0.25 Inch
Insulation MaterialNon-insulated
Connection Width (Metric) UOMmm
Packaging1000 per bulk box
Mates with Female Width0.187 Inch
Terminal StyleStandard
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.187
Overall Length (Imperial) UOMin
UL File NumberE70512
Fastener OrientationFemale
Solution forWireless Network: Infrastructure Accessories
Mates with Male Tab Width (W')0.187 Inch
Units per Case1000.0
Barrel StyleButted
Disconnect TypeFemale
Maximum Conductor Size (Imperial)14 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Pad Width0.187
Connection Width (Metric)4.75
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial)0.58
Barrel Inside Diameter0.085 Inch
Maximum Conductor Size (Metric)2.5 mm²
Minimum Conductor Size (Metric)1.5 mm²
Tab Width0.187
Terminal TypeDisconnect
