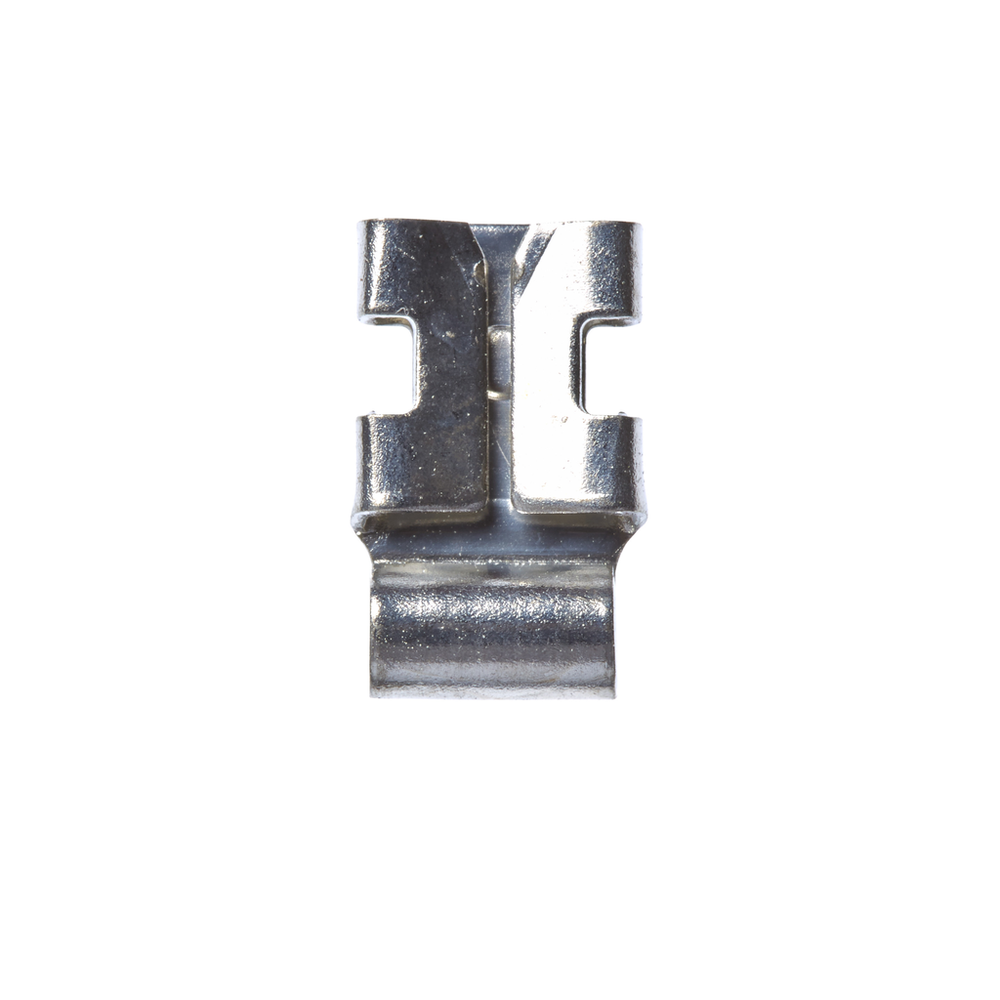

3M™ Scotchlok™ Female Disconnect Flag, Non-Insulated Butted Seam MU14-250DF/FLAGK, 16-14 AWG, 1000/Case - 7100164050

Sold As: 1000-Pack
SKU: 7100164050
MPN: 7100164050
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017790
3M ID: 80610046866
5 Digit UPC: 1779
$245.69 ($0.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Female Flag Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect flag terminal offer excellent holding force
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Bullet Diameter0.156
Connection Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Packaging1000 per bulk box
Pad Width0.25
Minimum Conductor Size (Imperial)16 AWG
Units per Case1000.0
Fastener OrientationFemale
Insulation MaterialNon-insulated
Barrel Inside Diameter0.095 Inch
Solution forWireless Network: Infrastructure Accessories
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleFlag
Mates with Male Tab Width (W')0.250 Inch
Maximum Conductor Size (Imperial)14 AWG
UL File NumberE70512
Mates with Female Width0.250 Inch
Barrel Length (Imperial)0.26 Inch
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Imperial) UOMin
Connection Width (Metric)6.35
Overall Length (Imperial)0.51
Terminal TypeDisconnect
Disconnect TypeFemale
Connection Width (Imperial)0.25
Barrel StyleButted
Maximum Conductor Size (Metric)2.5 mm²
