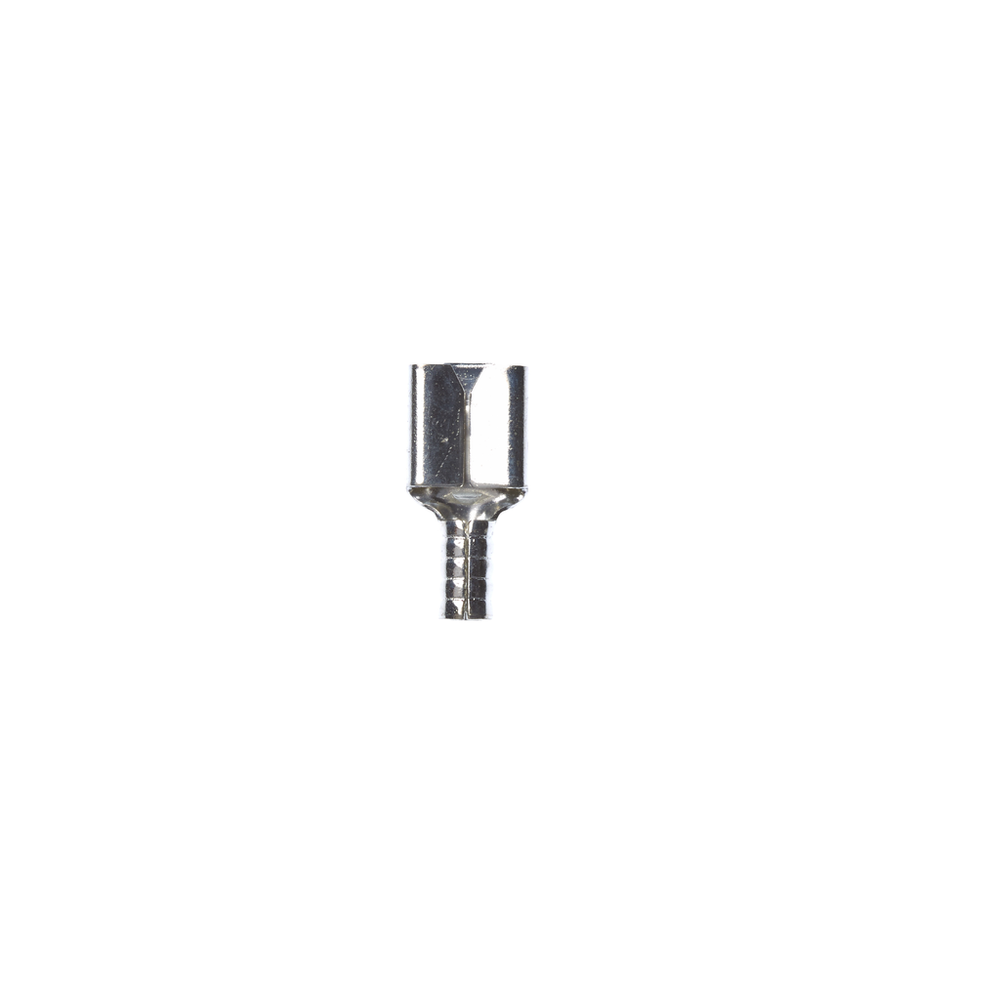

3M™ Scotchlok™ Female Disconnect, Non-Insulated Butted Seam MU14-250DFK, 16-14 AWG, 1000/Case - 7100164048

Sold As: 1000-Pack
SKU: 7100164048
MPN: 7100164048
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017684
3M ID: 80610046692
5 Digit UPC: 1768
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Packaging1000 per bulk box
UL File NumberE70512
Terminal StyleStandard
Connection Width (Metric)6.35
Barrel Length (Imperial)0.25 Inch
Fastener OrientationFemale
Mates with Male Tab Width (W')0.25 Inch
Barrel StyleButted
Barrel Inside Diameter0.08 Inch
Minimum Conductor Size (Metric)1.5 mm²
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial) UOMin
Tab Width0.250
Overall Length (Imperial)0.66
Mates with Female Width0.25 Inch
Connection Width (Imperial) UOMin
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric)2.5 mm²
Disconnect TypeFemale
Connection Width (Imperial)0.25
Solution forWireless Network: Infrastructure Accessories
Units per Case1000.0
Terminal TypeDisconnect
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialNon-insulated
Pad Width0.25
Minimum Conductor Size (Imperial)16 AWG
