3M Products & Supplies

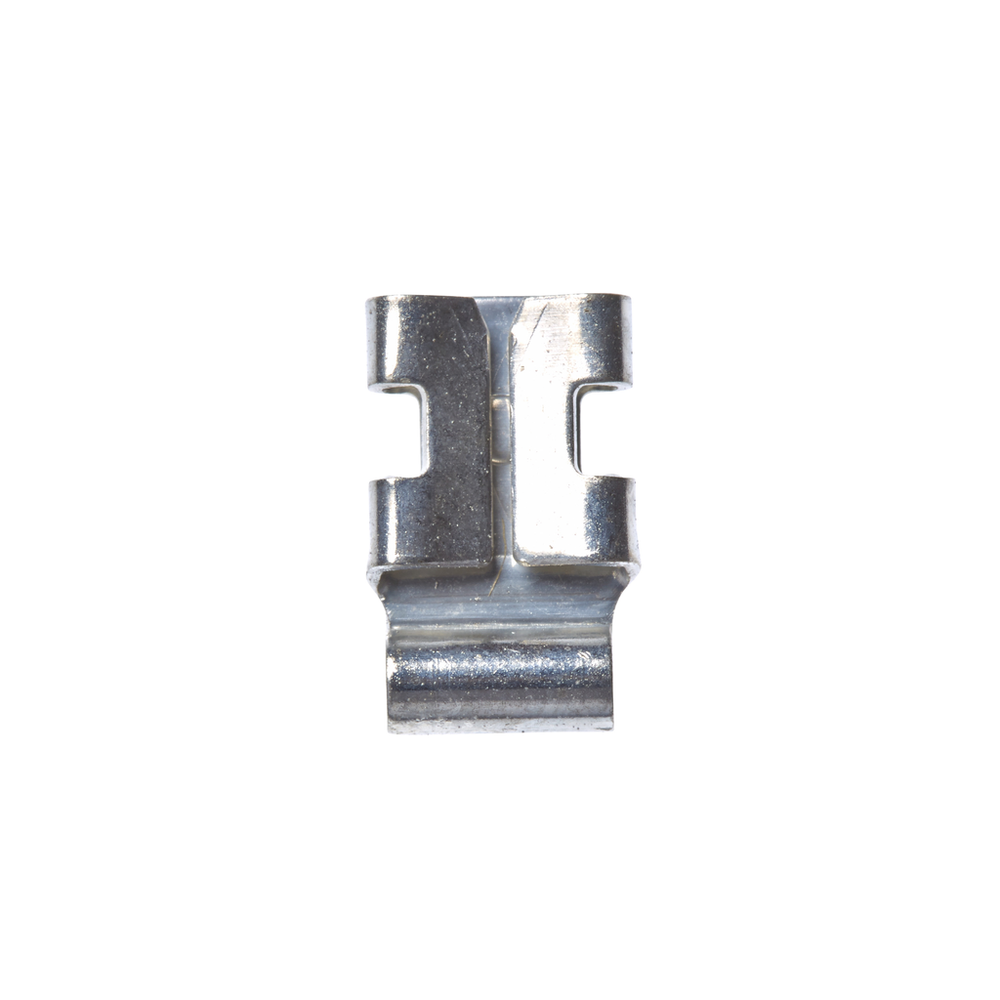

3M™ Scotchlok™ Female Disconnect Flag, Non-Insulated Butted Seam MU18-250DF/FLAGK, 22-18 AWG, 1000/Case - 7100163967

Sold As: 1000-Pack
SKU: 7100163967
MPN: 7100163967
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013037
3M ID: 80610039234
5 Digit UPC: 1303
$245.69 ($0.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Female Flag Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Dents and rolled edges of this female disconnect flag terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.25
Terminal StyleFlag
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial) UOMin
Disconnect TypeFemale
Minimum Conductor Size (Metric).34 mm²
Units per Case1000.0
Tab Width0.110
Insulation MaterialNon-insulated
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mates with Female Width0.250 Inch
UL File NumberE70512
Solution forWireless Network: Infrastructure Accessories
Connection Width (Metric) UOMmm
Packaging1000 per bulk box
Maximum Conductor Size (Metric)1 mm²
Pad Width0.25
Maximum Conductor Size (Imperial)18 AWG
Fastener OrientationFemale
Minimum Conductor Size (Imperial)22 AWG
Barrel Inside Diameter0.075 Inch
Connection Width (Metric)6.35
Barrel StyleButted
Mates with Male Tab Width (W')0.250 Inch
Terminal TypeDisconnect
Overall Length (Imperial) UOMin
Overall Length (Imperial)0.5
