3M Products & Supplies

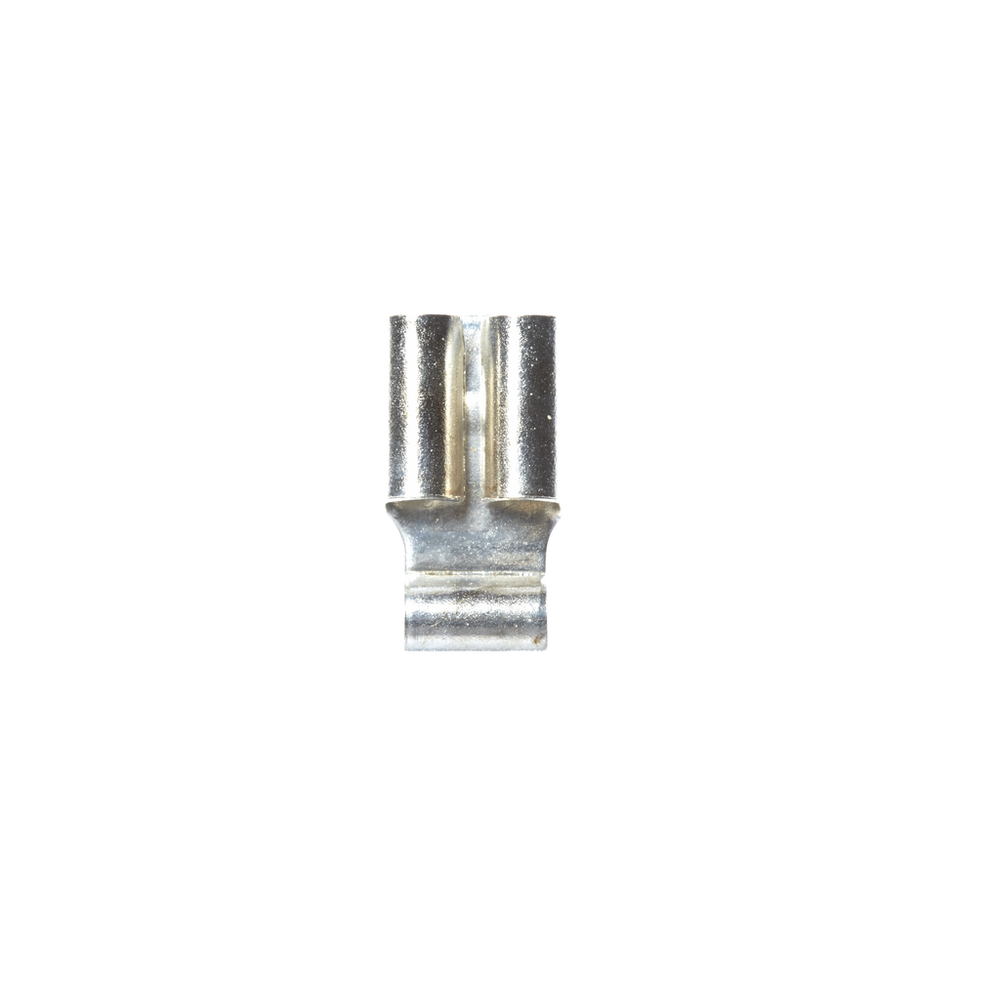

3M™ Scotchlok™ Female Disconnect Flag, Non-Insulated Butted Seam MU18-187DF/FLAGK, 22-18 AWG, 1000/Case - 7100163966

Sold As: 1000-Pack
SKU: 7100163966
MPN: 7100163966
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013020
3M ID: 80610039226
5 Digit UPC: 1302
$241.19 ($0.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Female Flag Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Dents and rolled edges of this female disconnect flag terminal offer excellent holding force
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Tab Width0.250
Minimum Conductor Size (Metric).34 mm²
Barrel Length (Imperial)0.20 Inch
Minimum Conductor Size (Imperial)22 AWG
Packaging1000 per bulk box
Maximum Conductor Size (Metric)1 mm²
Pad Width0.187
Solution forWireless Network: Infrastructure Accessories
Barrel Inside Diameter0.075 Inch
Disconnect TypeFemale
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mates with Male Tab Width (W')0.187 Inch
Fastener OrientationFemale
Connection Width (Metric)4.75
Terminal StyleFlag
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.187
Units per Case1000.0
Barrel StyleButted
Mates with Female Width0.187 Inch
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Imperial)0.46
Connection Width (Imperial) UOMin
Terminal TypeDisconnect
Connection Width (Metric) UOMmm
Insulation MaterialNon-insulated
