3M Products & Supplies

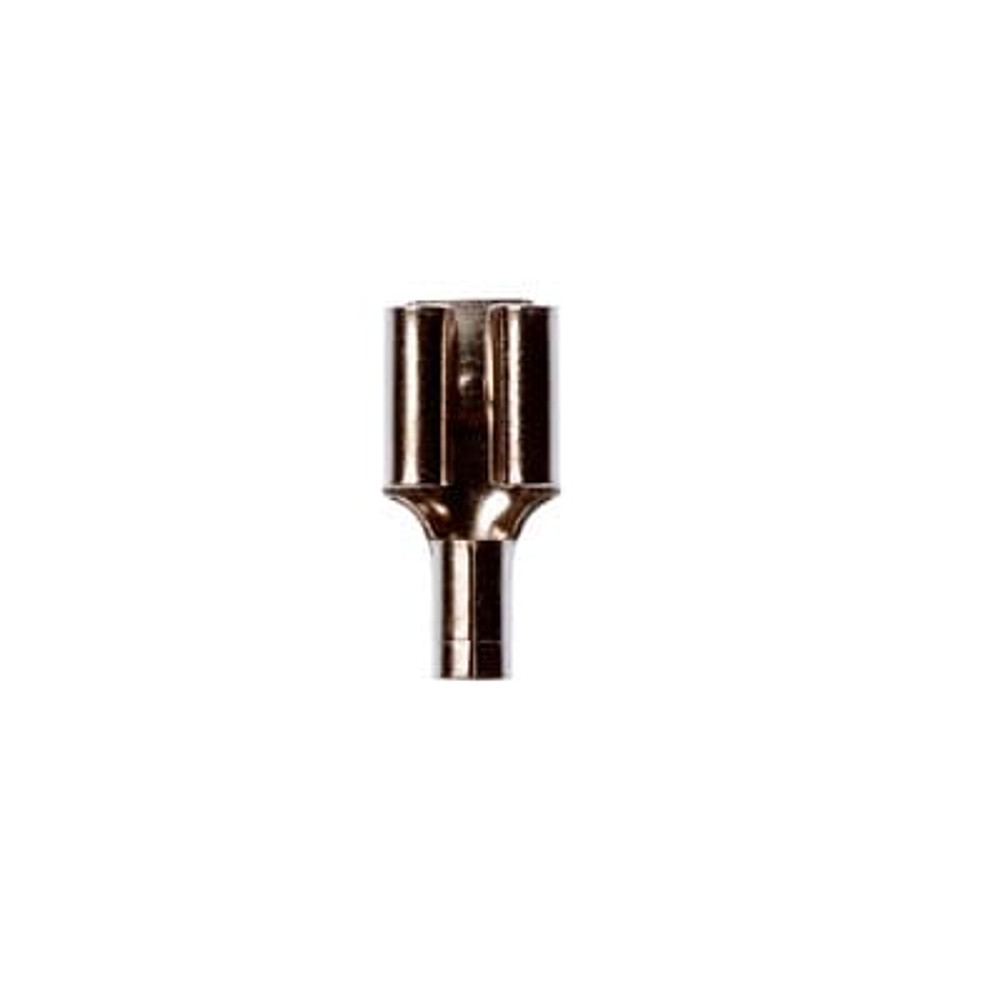

3M™ Scotchlok™ Female Disconnect, High Temperature Butted Seam MU14-250DFHTK, 16-14 AWG, 1000/Case - 7100164045

Sold As: 1000-Pack
SKU: 7100164045
MPN: 7100164045
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017639
3M ID: 80610046635
5 Digit UPC: 1763
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ High-Temperature Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Its steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Made of durable steel for high-temperature applications and has corrosion-resistant nickel plating
  • Accommodates wire sizes 16 to 14 AWG
  • This high-temperature female disconnect terminal has dents and rolled edges to allow for excellent holding force
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Units per Case1000.0
Minimum Conductor Size (Metric)1.5 mm²
Terminal TypeDisconnect
Connection Width (Imperial)0.25
Connection Width (Metric)6.35
Fastener OrientationFemale
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleHigh Temp
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial)0.64
Connection Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Packaging1000 per bulk box
Mates with Male Tab Width (W')0.25 Inch
Solution forWireless Network: Infrastructure Accessories
Barrel StyleButted
Pad Width0.25
Barrel Length (Imperial)0.23 Inch
Insulation MaterialNon-insulated
Maximum Conductor Size (Imperial)14 AWG
Disconnect TypeFemale
Maximum Conductor Size (Metric)2.5 mm²
Connection Width (Imperial) UOMin
Tab Width0.250
Mates with Female Width0.25 Inch
Barrel Inside Diameter0.095 Inch
