3M Products & Supplies

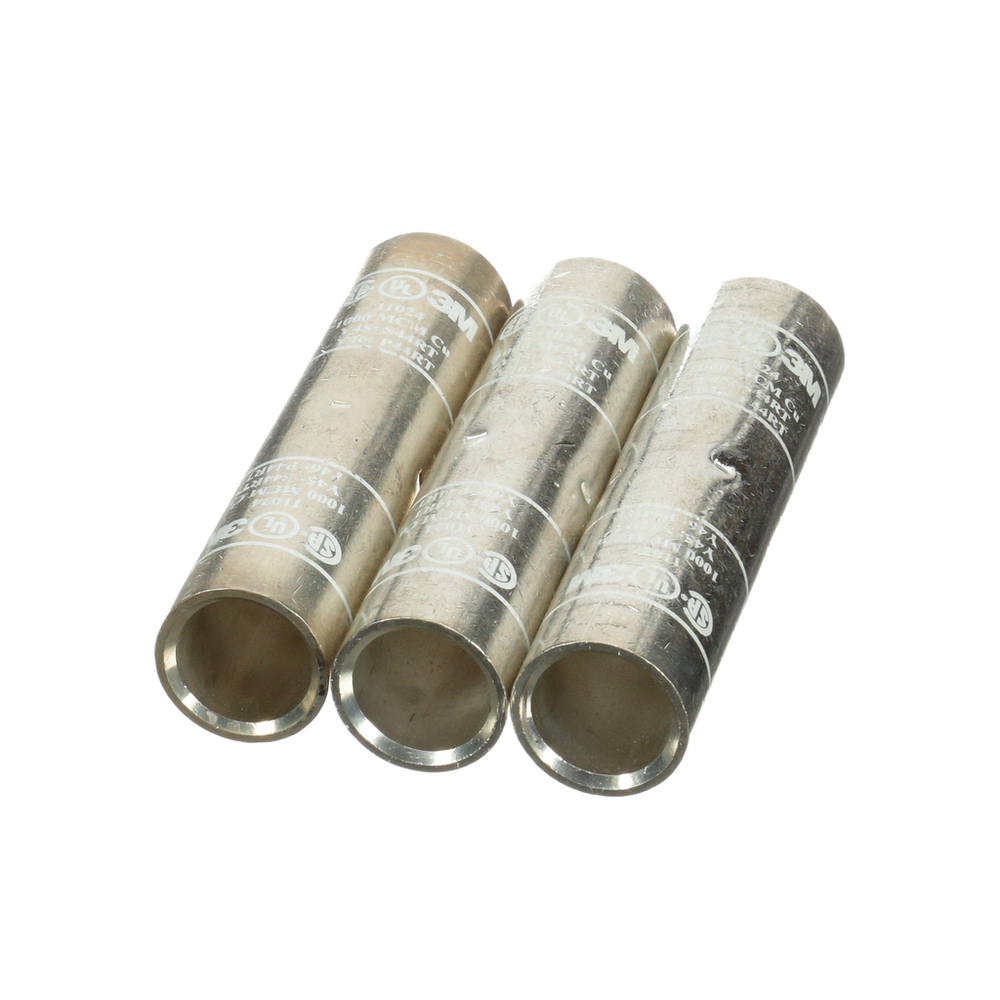

3M™ Scotchlok™ Butt Connector Non-Insulated, 100/bottle, MU14BCX, built-in wire stop for correct positioning, 500/Case - 7010398228

Sold As: 100-Pack
SKU: 7010398228
MPN: 7010398228
For an accurate lead time please contact us
UPC: 00051128590072
3M ID: 80611466535
5 Digit UPC: 59007
$46.67 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Brazed Seam Butt Connector ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Built-in wire stop for correct positioning
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Beveled mouth offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)0.56
Solution forWireless Network: Infrastructure Accessories
Units per Case500.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleStandard
Maximum Conductor Size (Imperial)16 AWG
Packaging100 per bottle
Minimum Conductor Size (Metric)2.5 mm²
Insulation MaterialNon-insulated
Connector TypeButt
Maximum Conductor Size (Metric)1.5 mm²
Barrel Inside Diameter0.090 Inch
Overall Length (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Barrel StyleButted
Terminal TypeButt Connectors
Body MaterialCopper Alloy
Minimum Conductor Size (Imperial)14 AWG
