3M Products & Supplies

3M™ Scotchlok™ Butt Connector Nylon Insulated, 100/bottle, MNG18BCX, built-in wire stop for correct positioning, 500/Case - 7000133275

Sold As: 100-Pack
SKU: 7000133275
MPN: 7000133275
For an accurate lead time please contact us
UPC: 00051128586488
3M ID: 80611457930
5 Digit UPC: 58648
$159.57 ($1.60 / Count)
Hurry up! Current stock:

Product Description

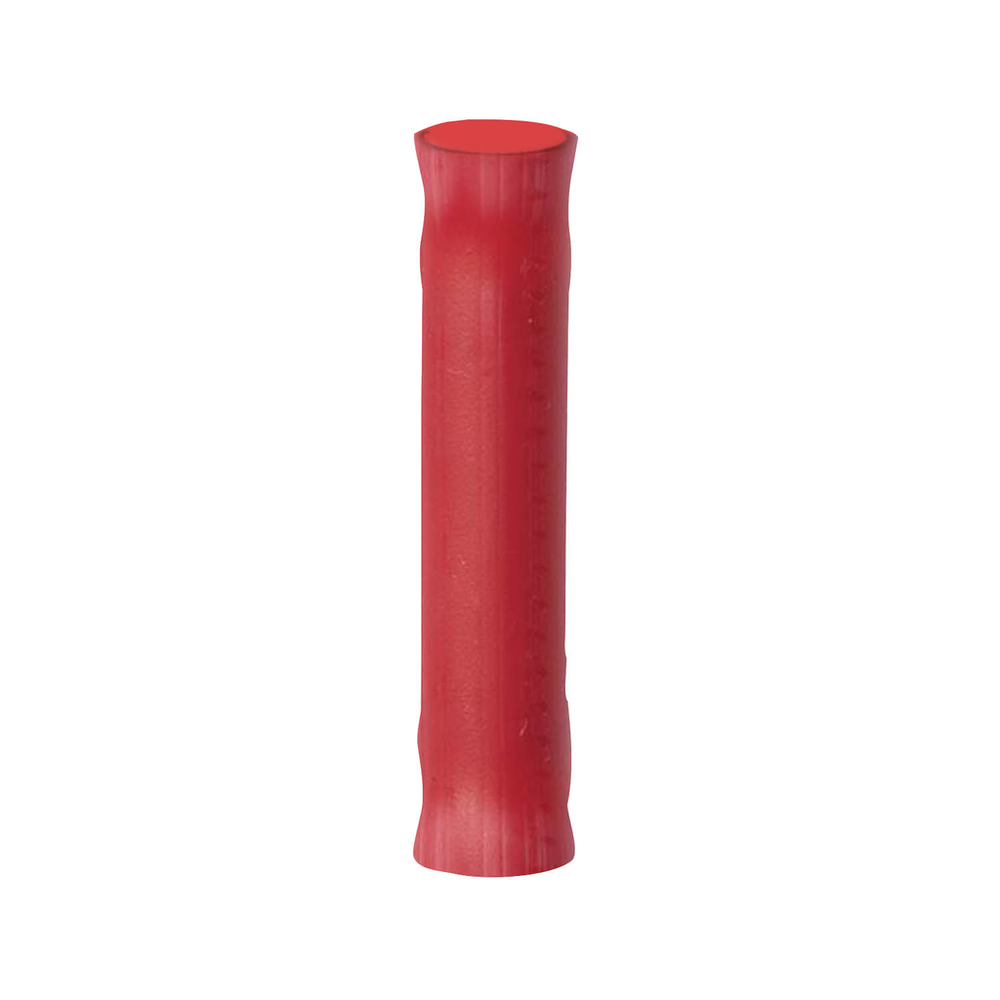

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

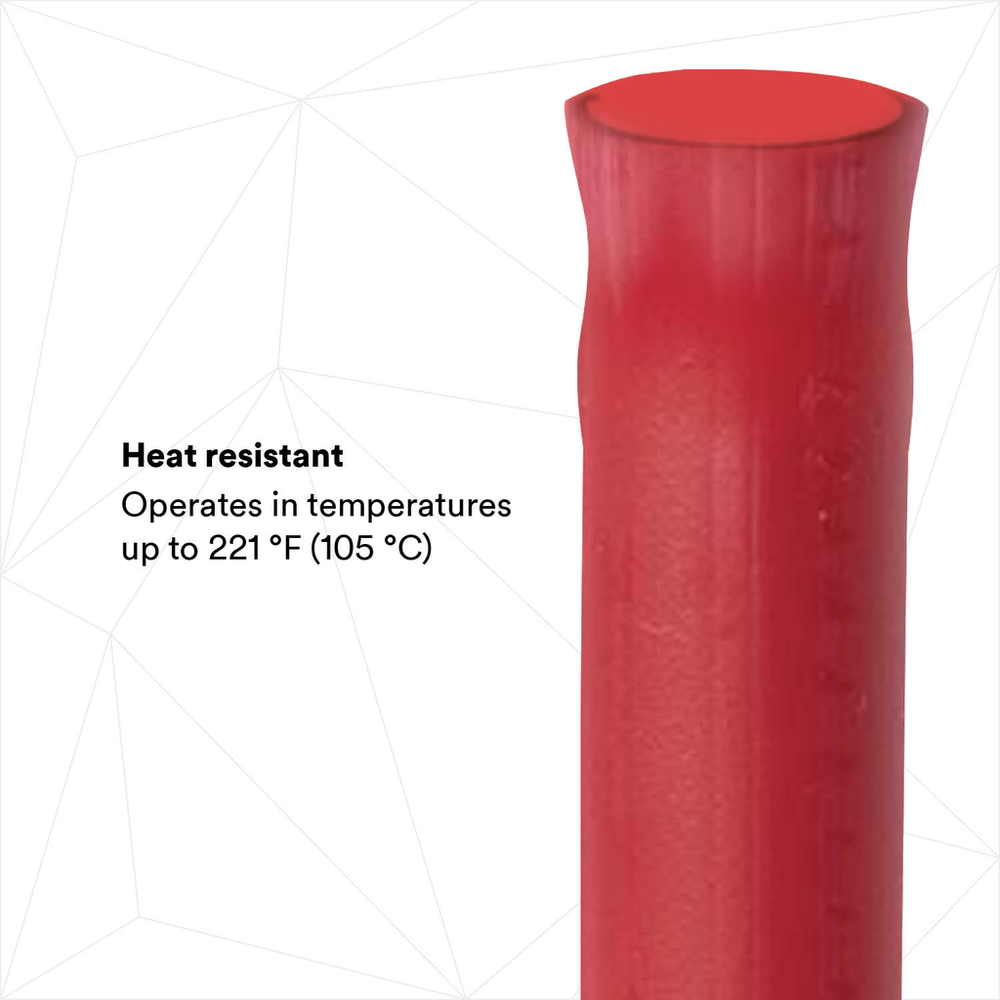

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Built-in wire stop for correct positioning
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

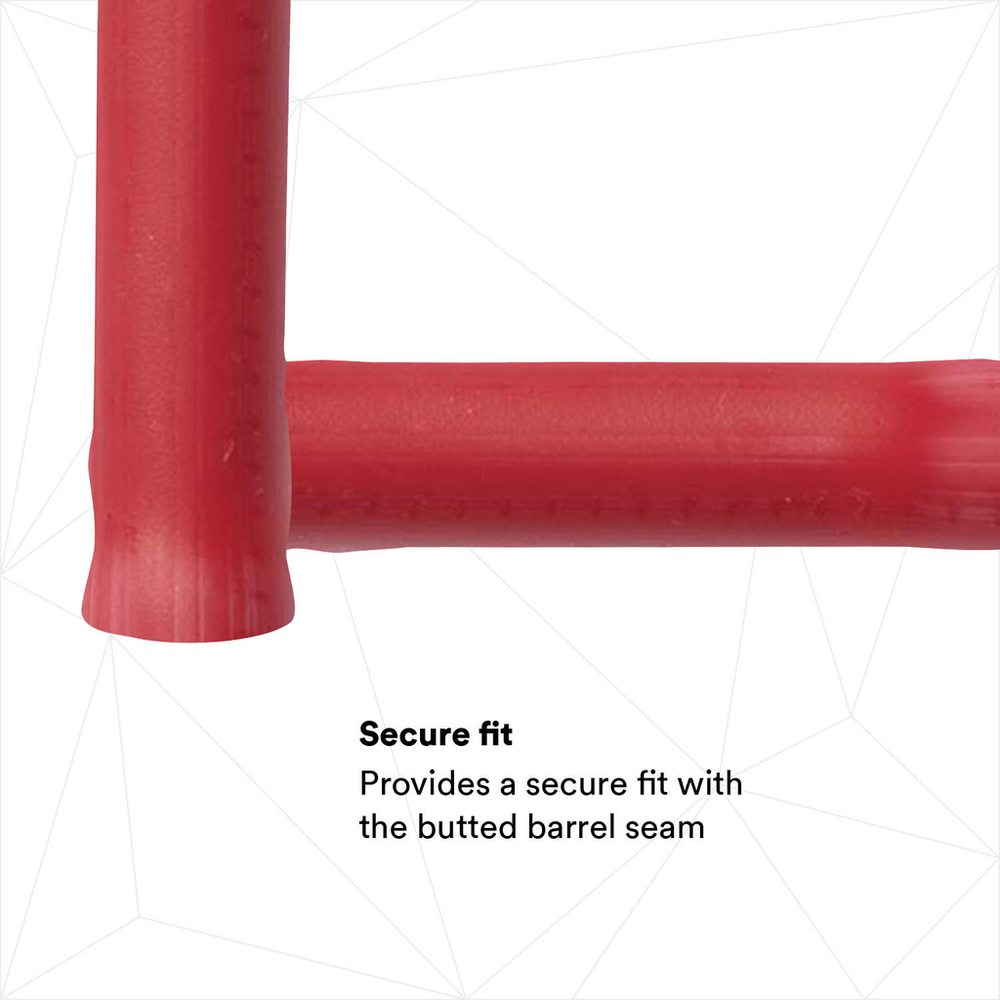

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Specifications

Country of OriginUnited States
Overall Length (Metric) UOMmm
Minimum Conductor Size (Imperial)22 AWG
Terminal StyleStandard
Connection Width (Imperial)0.0
Overall Length (Imperial) UOMin

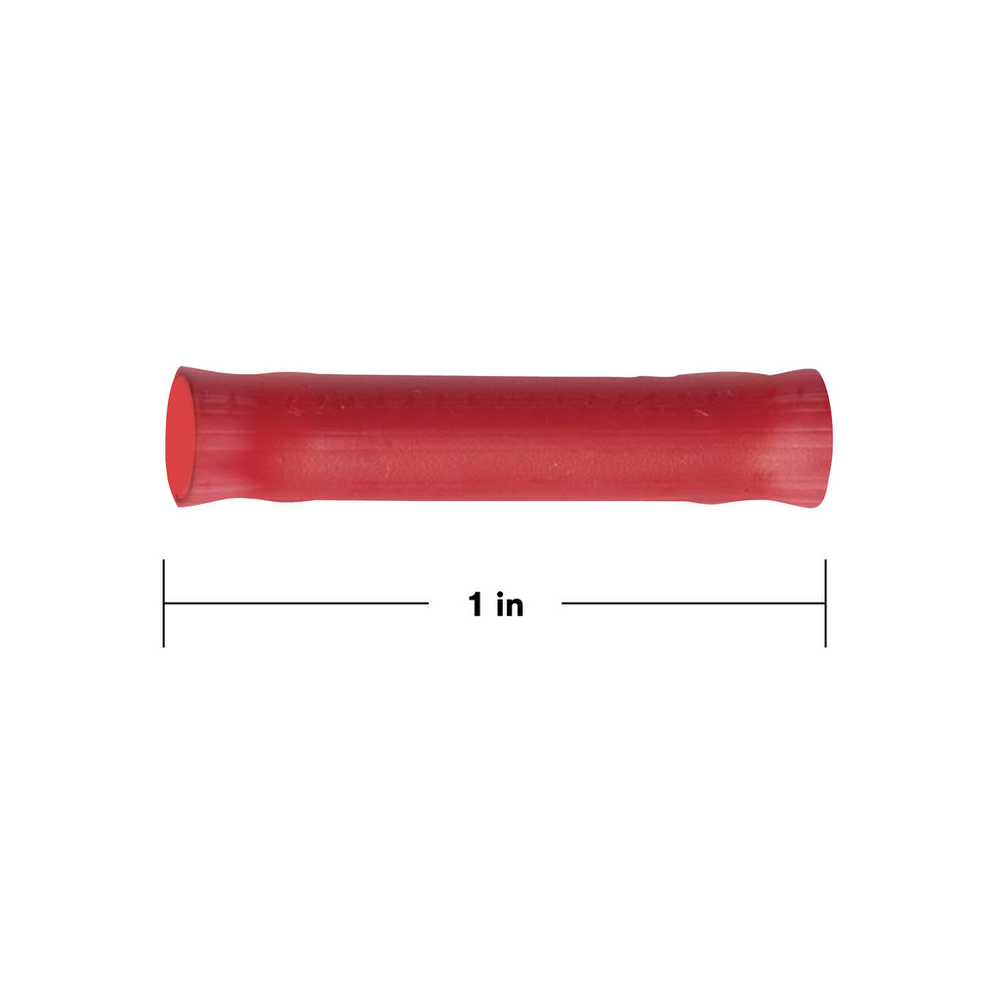

Overall Length (Imperial)1.0
Minimum Conductor Size (Metric).34 mm²
Connector TypeButt
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Metric)25.4
Product ColorRed
Maximum Operating Temperature (Celsius)105.0
Terminal TypeButt Connectors
Disconnect TypeFemale
Body MaterialCopper Alloy
Connection Width (Metric)0.0
Insulation MaterialNylon with Insulation Grip
Maximum Conductor Size (Metric)1 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Insulation Outer Diameter (Metric)3.68
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
