3M Products & Supplies

3M™ Scotchlok™ Butt Connector Nylon Insulated, 100/bottle, MNG14BCX, built-in wire stop for correct positioning, 500/Case - 7000133292

Sold As: 100-Pack
SKU: 7000133292
MPN: 7000133292
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586792
3M ID: 80611458243
5 Digit UPC: 58679
$159.57 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Built-in wire stop for correct positioning
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)2.5 mm²
Maximum Conductor Size (Imperial)14 AWG
Insulation MaterialNylon with Insulation Grip
Terminal StyleStandard
Terminal TypeButt Connectors

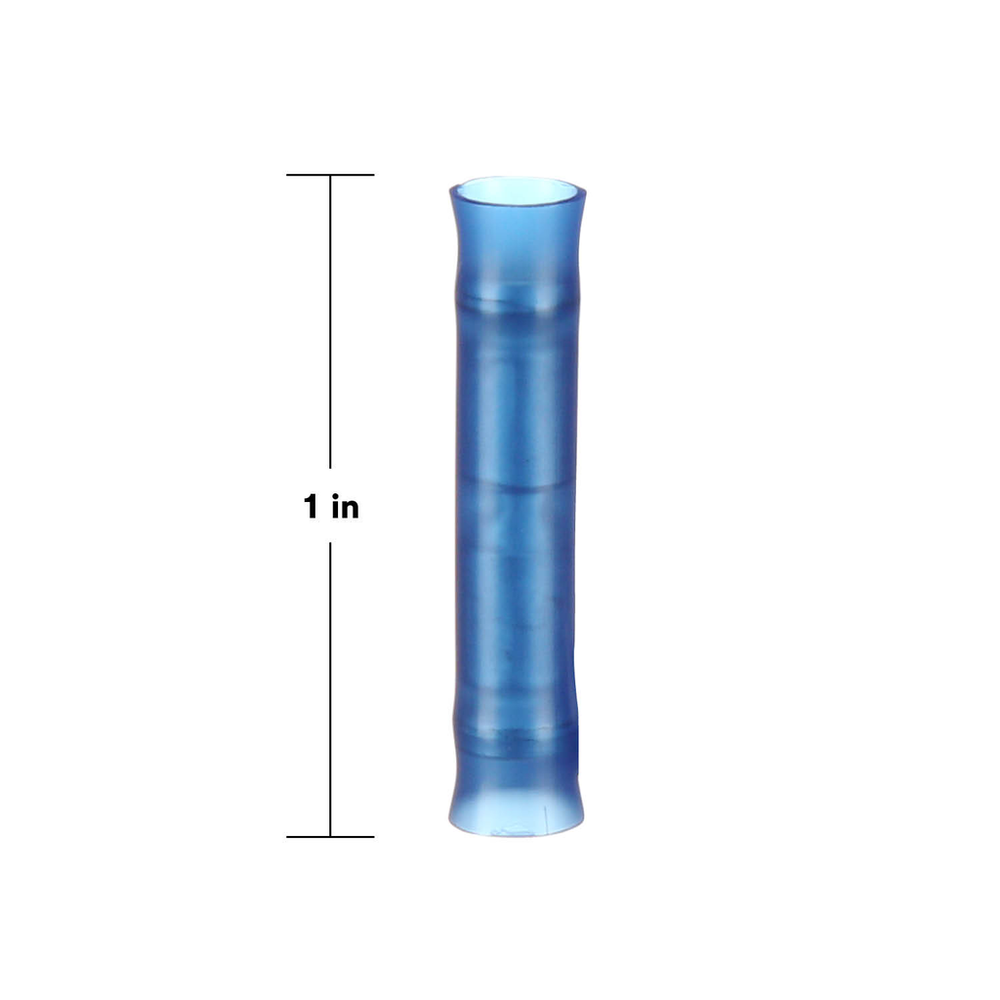

Overall Length (Metric)25.4
Connection Width (Metric)0.0
Minimum Conductor Size (Metric)1.5 mm²
Product ColorBlue
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial)1.0
Fork TypeStandard
Overall Length (Imperial) UOMin
Stud Diameter (Metric)0.0
Overall Length (Metric) UOMmm
Stud Diameter (Imperial)0.0
Disconnect TypeFemale
Connection Width (Imperial)0.0
