3M Products & Supplies

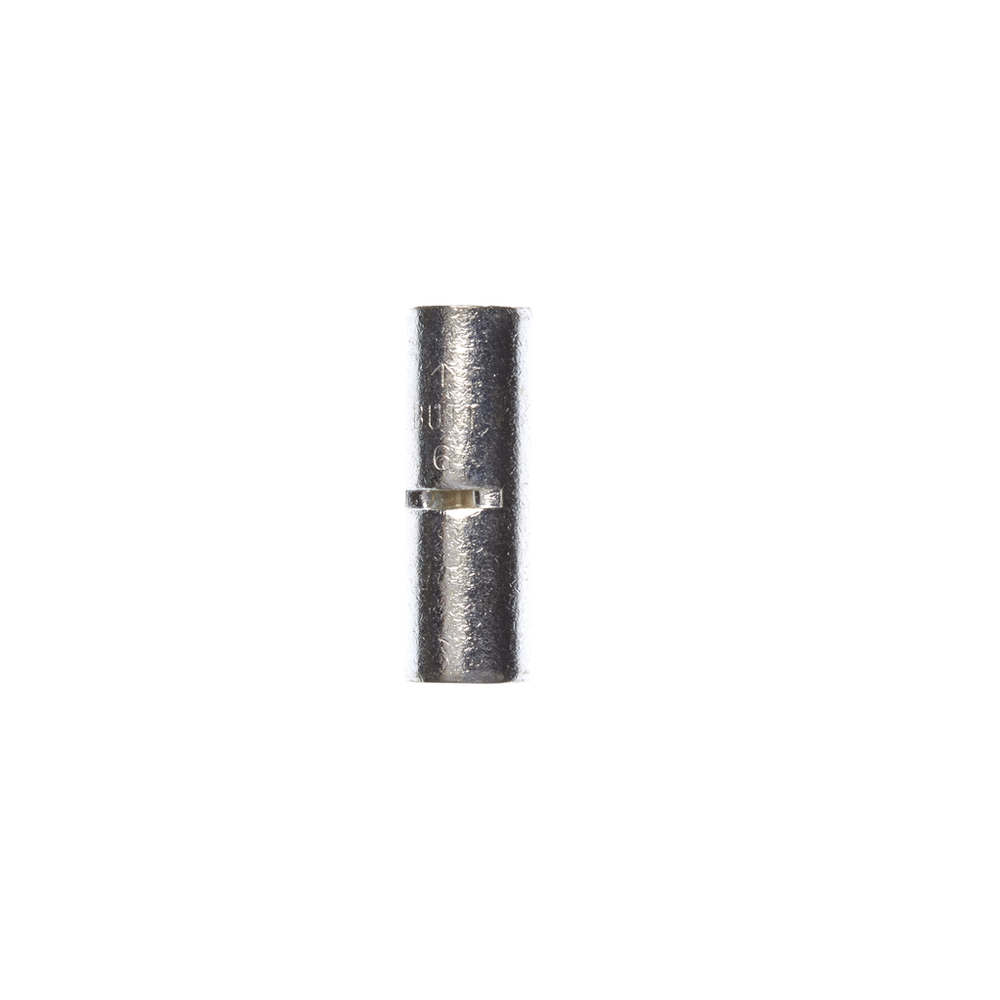

3M™ Scotchlok™ Butt Connector, Non-Insulated Brazed Seam M6BCK, 6 AWG, built-in wire stop for correct positioning, 200/Case - 7100164159

Sold As: 200-Pack
SKU: 7100164159
MPN: 7100164159
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021728
3M ID: 80610051791
5 Digit UPC: 2172
$319.14 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Brazed Seam Butt Connector ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Built-in wire stop for correct positioning
  • Beveled mouth offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connector TypeButt
Maximum Conductor Size (Metric)16 mm²
Minimum Conductor Size (Metric)16 mm²
Overall Length (Imperial)1.02
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)6 AWG
Maximum Conductor Size (Imperial)6 AWG
Insulation MaterialNon-insulated
Body MaterialCopper Alloy
