3M Products & Supplies

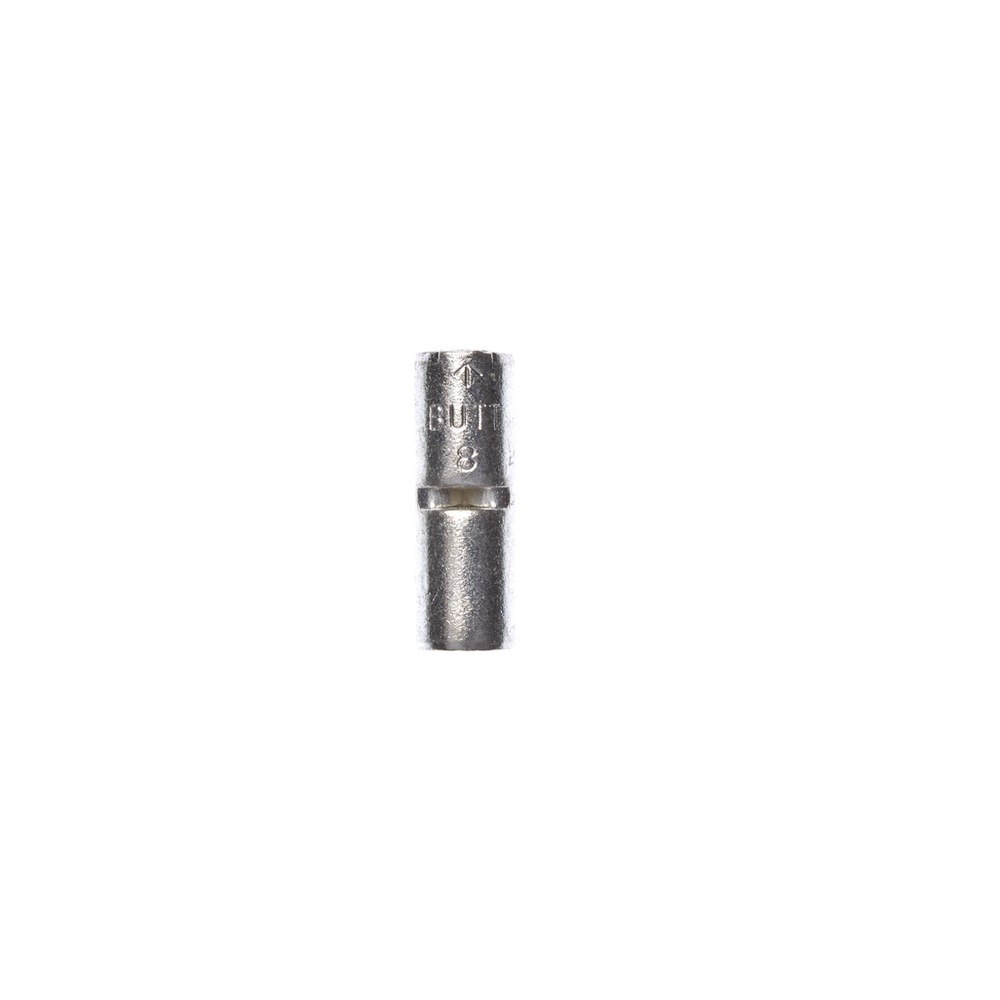

3M™ Scotchlok™ Butt Connector, Non-Insulated Brazed Seam M8BCK, 8 AWG, built-in wire stop for correct positioning, 200/Case - 7100164152

Sold As: 200-Pack
SKU: 7100164152
MPN: 7100164152
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021438
3M ID: 80610051486
5 Digit UPC: 2143
$194.78 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Brazed Seam Butt Connector ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Built-in wire stop for correct positioning
  • Beveled mouth offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)8 AWG
Insulation MaterialNon-insulated
Overall Length (Imperial)0.81
Minimum Conductor Size (Metric)10 mm²
Body MaterialCopper Alloy
Maximum Conductor Size (Imperial)8 AWG
Maximum Conductor Size (Metric)10 mm²
Overall Length (Imperial) UOMin
Connector TypeButt
