3M Products & Supplies

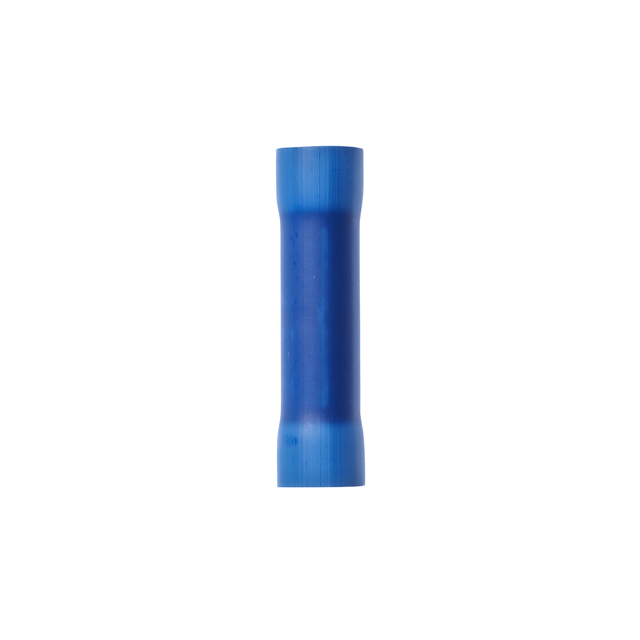

3M™ Scotchlok™ Butt Connector Vinyl Insulated, 10/bottle, MV8BCX, built-in wire stop for correct positioning, 100/Case - 7000149333

Sold As: 10-Pack
SKU: 7000149333
MPN: 7000149333
For an accurate lead time please contact us
UPC: 00638060414460
3M ID: 80611464191
5 Digit UPC: 41446
$25.70 ($2.57 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Built-in wire stop for correct positioning

Downloads

Specifications

Country of OriginUnited States
Stud Diameter (Imperial)0.0
Maximum Conductor Size (Imperial)8 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Stud Diameter (Metric)0.0
Overall Length (Imperial) UOMin
Insulation MaterialVinyl
Overall Length (Imperial)1.5
Minimum Conductor Size (Imperial)8 AWG
Maximum Conductor Size (Metric)10 mm²
Product ColorRed
Minimum Conductor Size (Metric)10 mm²
Fork TypeStandard
Maximum Operating Temperature (Celsius)105.0
Terminal StyleStandard
