3M Products & Supplies

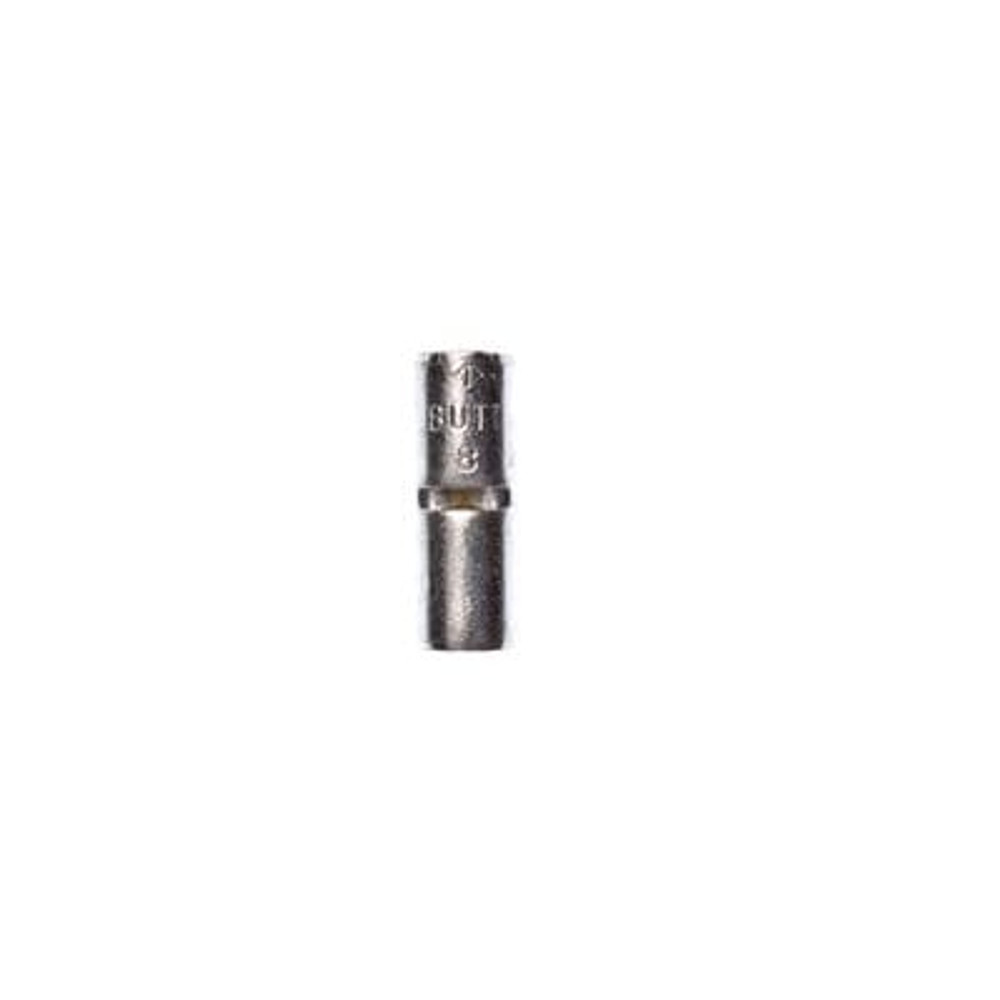

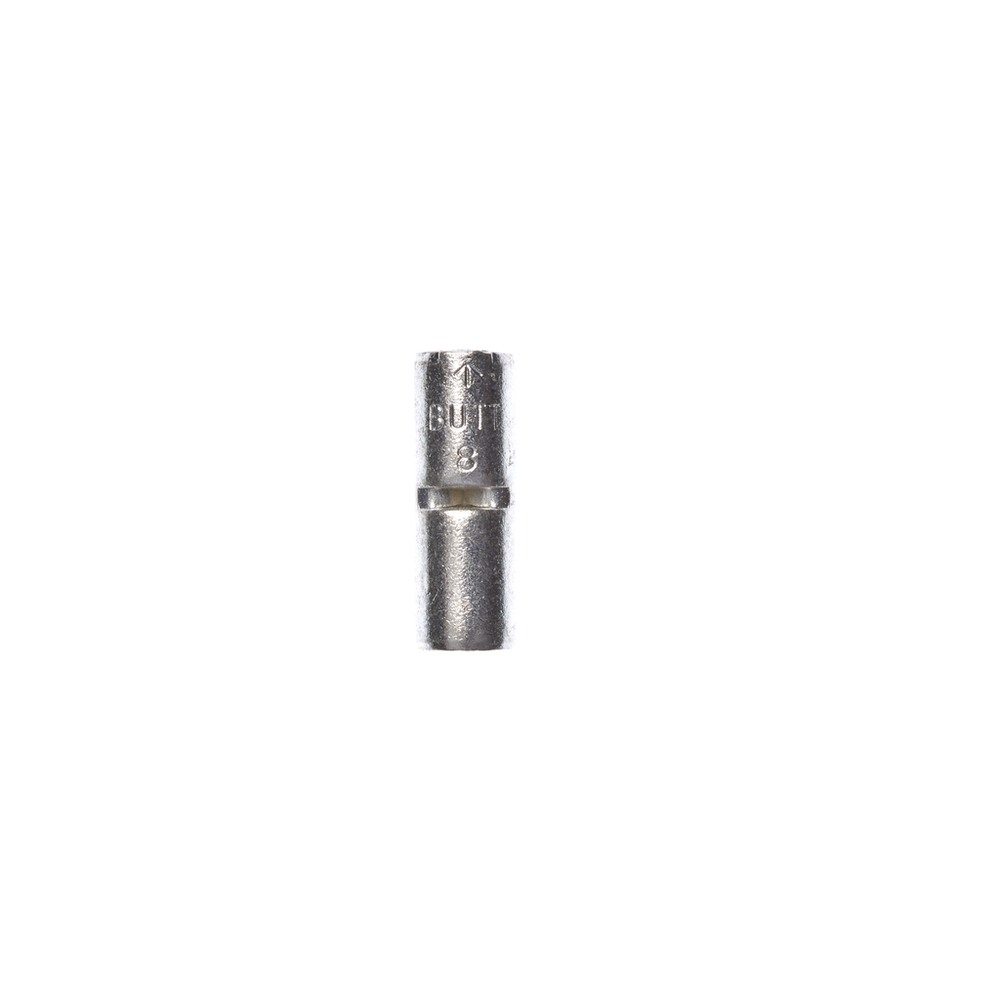

3M™ Scotchlok™ Butt Connector Non-Insulated, 10/bottle, M8BCX, built-in wire stop for correct positioning, 100/Case - 7100027556

Sold As: 10-Pack
SKU: 7100027556
MPN: 7100027556
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128587277
3M ID: 80611458722
5 Digit UPC: 58727
$25.70 ($2.57 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Brazed Seam Butt Connector ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Built-in wire stop for correct positioning
  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Specifications

Country of OriginUnited States
Insulation MaterialNon-insulated
Barrel StyleBrazed
Maximum Conductor Size (Imperial)8 AWG
Maximum Conductor Size (Metric)10 mm²
Connector TypeButt
Overall Length (Imperial)0.81
Overall Length (Imperial) UOMin
Packaging10 per bottle
UL File NumberE23438
Terminal TypeButt Connectors
MaterialETP Copper
Barrel Inside Diameter0.175 Inch
Units per Case100.0
Body MaterialCopper Alloy
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric)20.574
Minimum Conductor Size (Imperial)8 AWG
Minimum Conductor Size (Metric)10 mm²
Conductor Sizes (Imperial)8 AWG
Product ColorMetal
Terminal StyleStandard
Overall Length (Metric) UOMmm
Barrel Length (Imperial)0.38 Inch
Connection Width (Metric)0.0
Connection Width (Imperial)0.0
