3M Products & Supplies

3M™ Scotchlok™ Butt Connector Vinyl Insulated, 100/bottle, MVU14BCX, built-in wire stop for correct positioning, 5 Packs/Case - 7000058839

Sold As: 100-Pack
SKU: 7000058839
MPN: 7000058839
For an accurate lead time please contact us
UPC: 00051128588239
3M ID: 80611464696
5 Digit UPC: 58823
$36.42 ($0.36 / Count)
Hurry up! Current stock:

Product Description

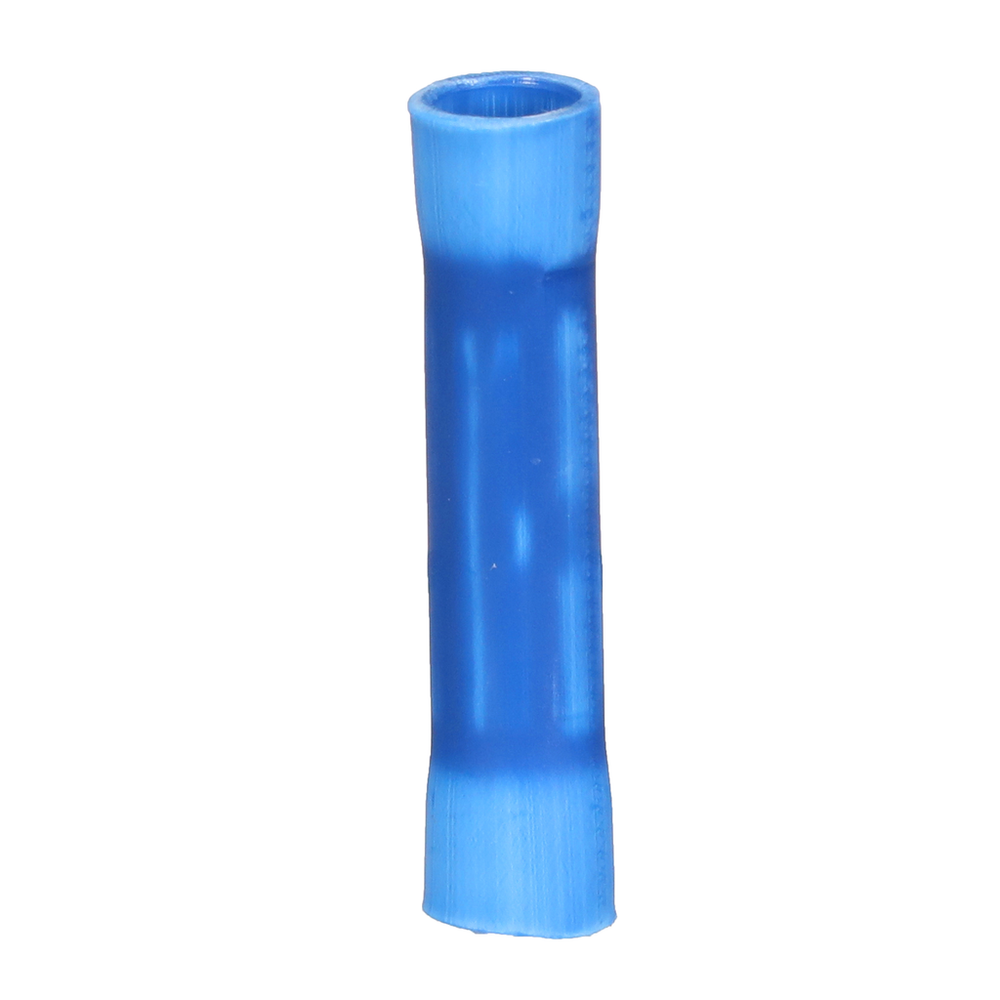

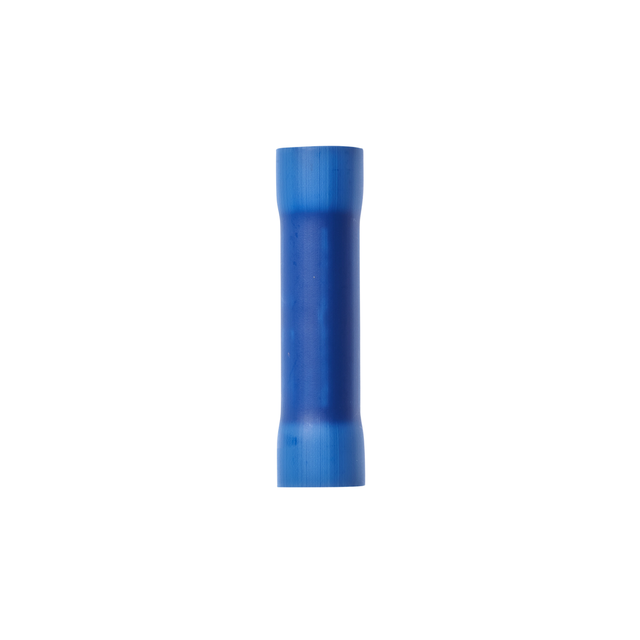

3M™ Scotchlok™ Vinyl Insulated Butted Seam Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

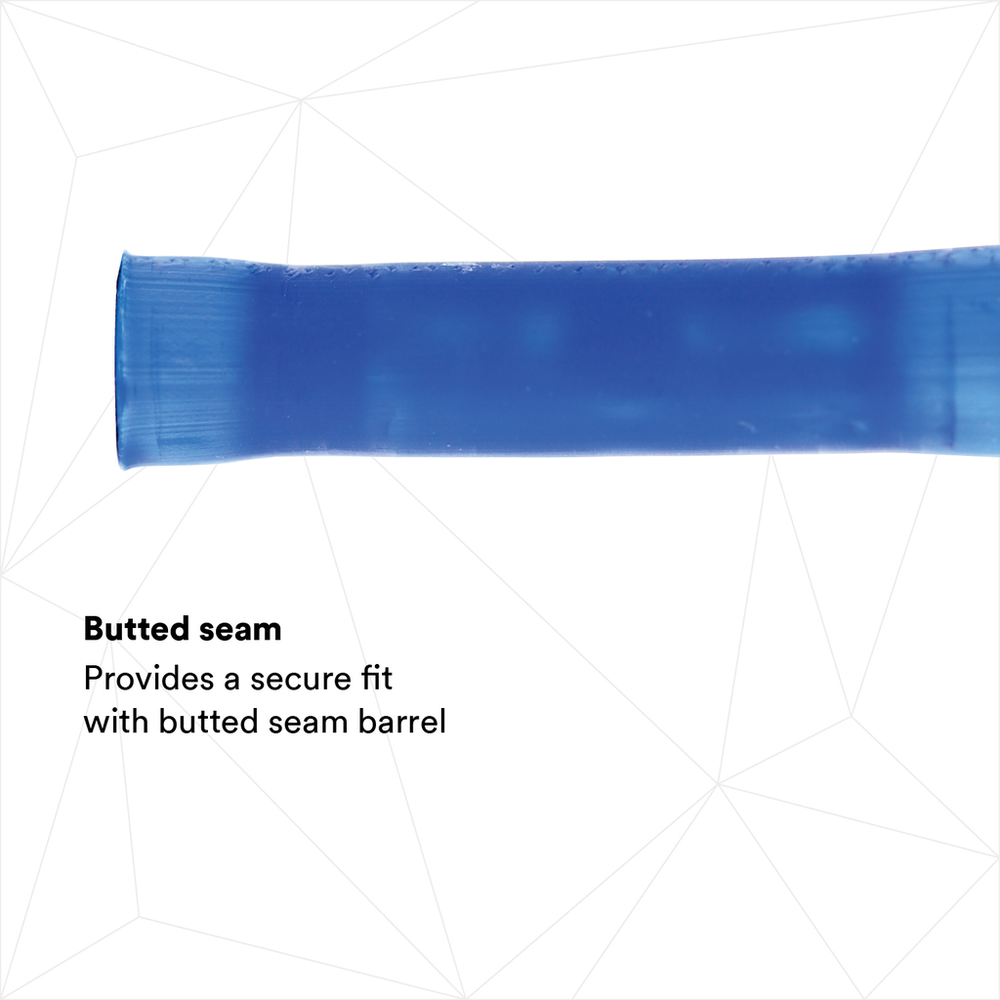

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Built-in wire stop for correct positioning
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric) UOMmm
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Metric)3.7
Barrel Inside Diameter0.090 Inch
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Diameter (Metric)1.209
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial)0.17
Minimum Conductor Diameter (Metric) UOMmm
Terminal StyleStandard
Product ColorBlue
Connector TypeButt
Maximum Recommended Voltage Rating600.0
Connection TypeButt
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Length (Imperial)0.25 Inch
Disconnect TypeFemale
Body MaterialCopper Alloy
MaterialETP Copper
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)25.4
Maximum Recommended Voltage Rating UOMV
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption

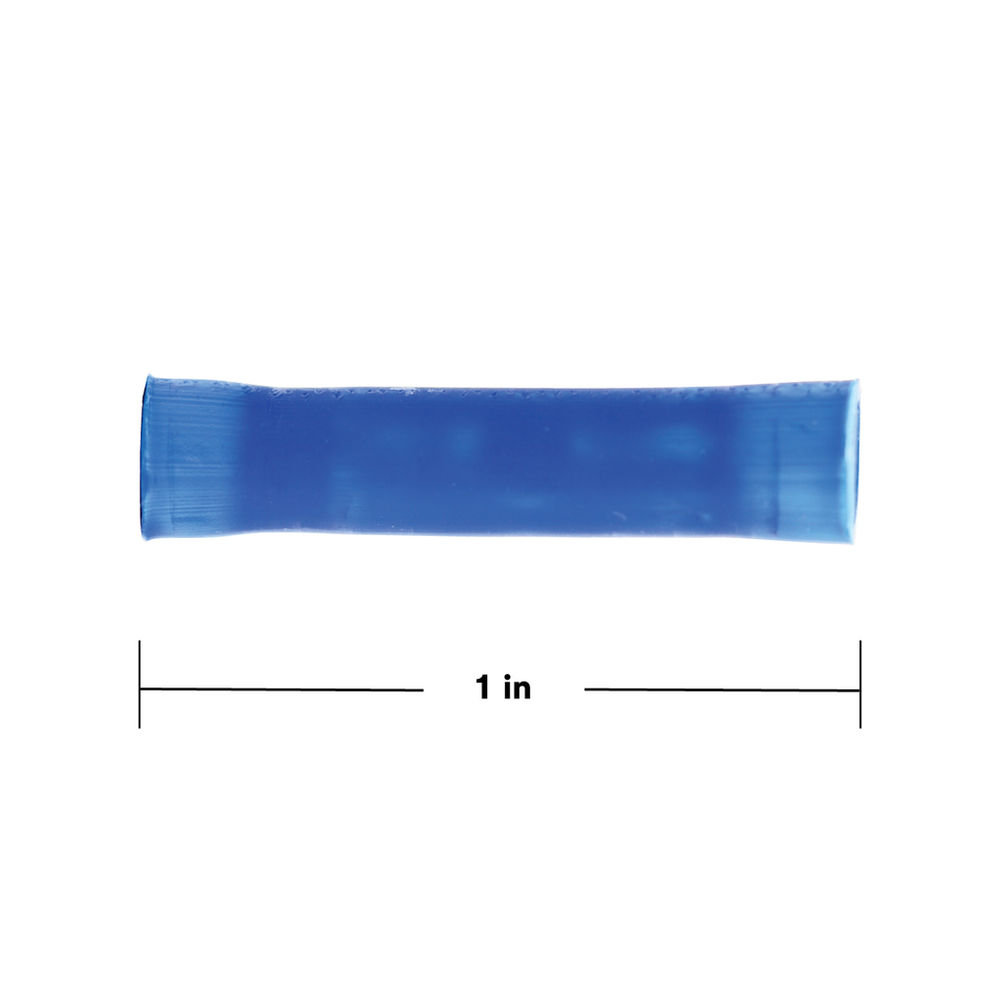

Overall Length (Imperial)1.0

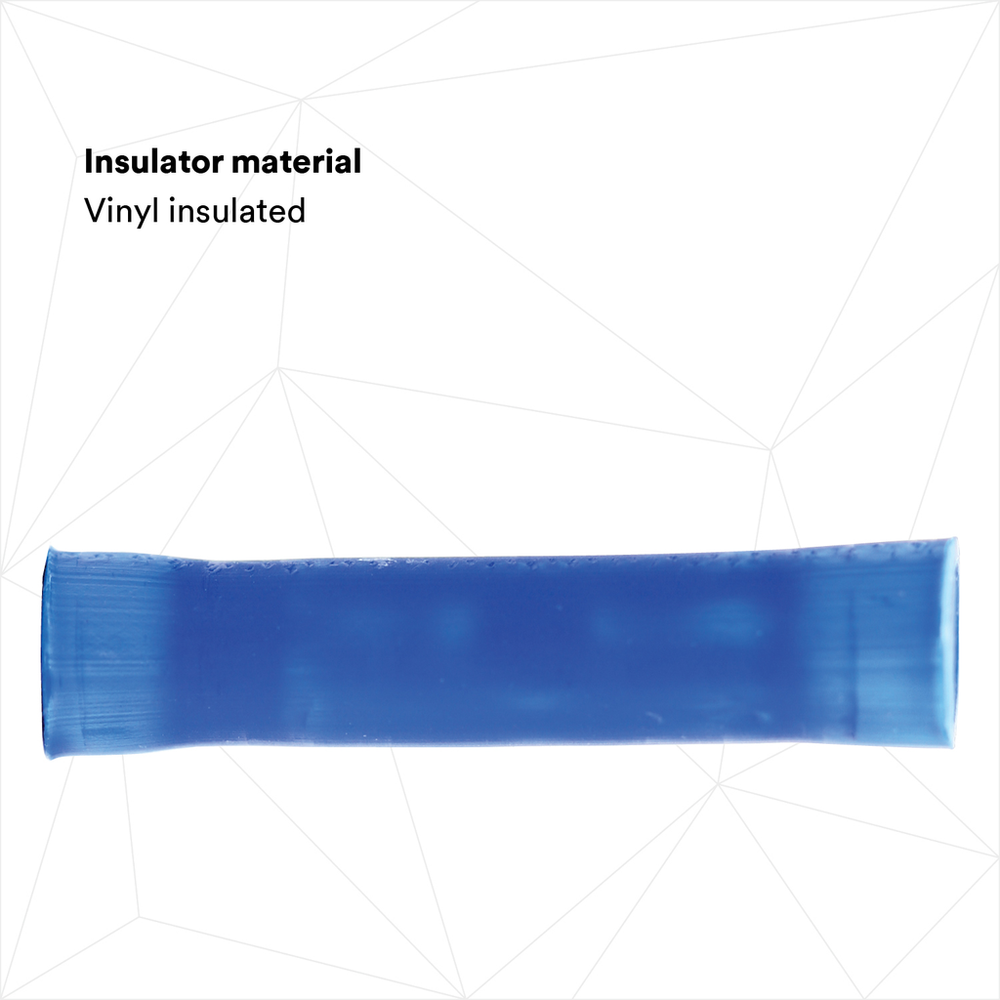

Insulation MaterialVinyl
Solution forWireless Network: Infrastructure Accessories
Packaging100 per bottle
UL File NumberE23438
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)1.5 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Insulation ColorBlue
Product TypeConnector
Maximum Conductor Size (Metric)2.5 mm²
Operating Temperature Range (Celsius)-40 °C to 105 °C
Connection Width (Imperial)0.0
Units per Case500.0
Terminal TypeButt Connectors
Conductor Sizes (Imperial)16 - 14 AWG
Connection Width (Metric)0.0
Maximum Insulation Outside Diameter0.145 in
Maximum Conductor Size (Imperial)14 AWG
