3M Products & Supplies

3M™ Scotchlok™ Closed End Connector Vinyl Insulated, 50/bottle, S-31-A(Boxed), 500/Case - 7000133426

Sold As: 50-Pack
SKU: 7000133426
MPN: 7000133426
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589960
3M ID: 80611466428
5 Digit UPC: 58996
$33.71 ($0.67 / Count)
Hurry up! Current stock:

Product Description

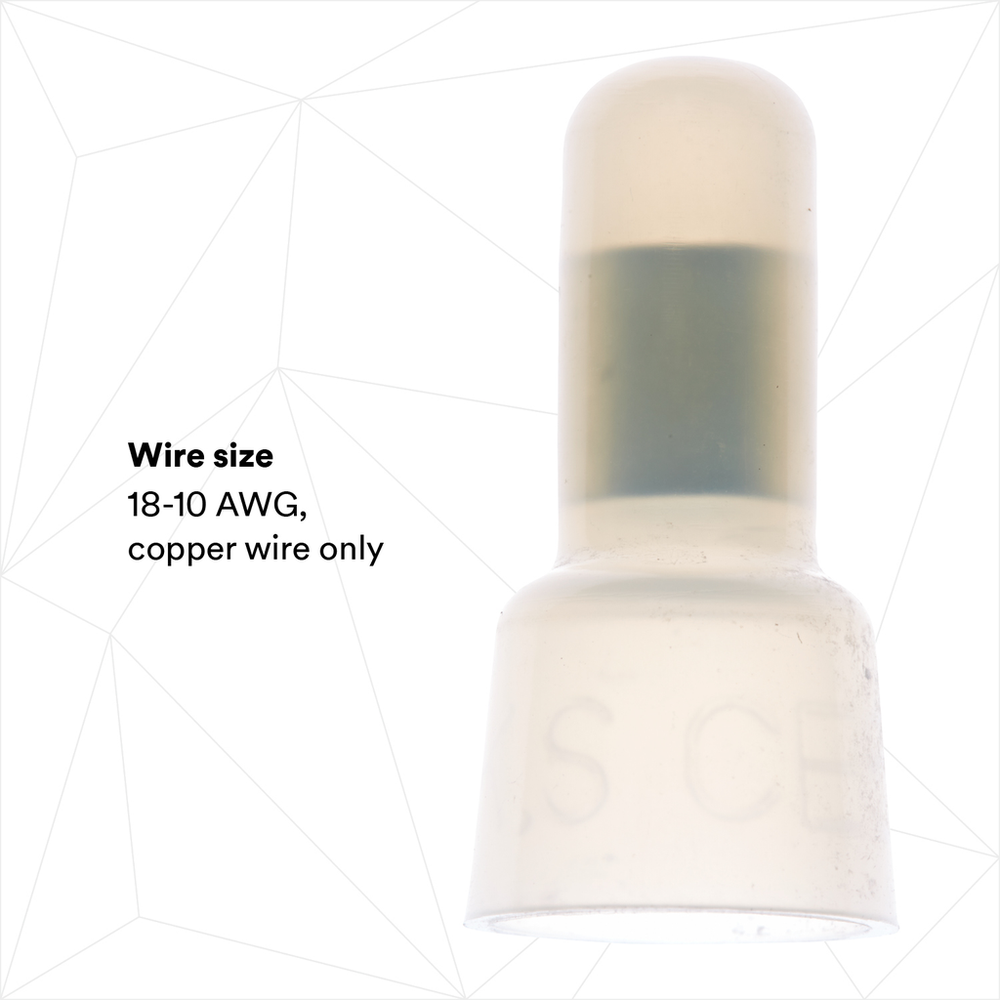

3M™ Scotchlok™ Color-Coded Closed-End Connector is an electrical crimp sleeve connector with a copper insert that allows for fast splicing of copper conductors. The vinyl-insulated connector is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C).

Features

  • Copper insert offers good conductivity
  • A smooth, flared end provides quick wire insertion
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 18 to 10 AWG
  • Vinyl-insulated barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginTaiwan
Minimum Conductor Size (Imperial)10 AWG
Insulation MaterialNylon
Maximum Conductor Size (Metric)1 mm²
Overall Length (Metric) UOMmm
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Imperial)1.0
Minimum Conductor Size (Metric)6 mm²
Overall Length (Imperial) UOMin
Body MaterialCopper
Overall Length (Metric)25.4
Product ColorTranslucent White
