3M Products & Supplies

3M™ Scotchlok™ Pin Vinyl Insulated, 50/bottle, MVU10-55PX-A, 500/Case - 7100055061

Sold As: 50-Pack
SKU: 7100055061
MPN: 7100055061
For an accurate lead time please contact us
UPC: 00051128588635
3M ID: 80611465099
5 Digit UPC: 58863
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

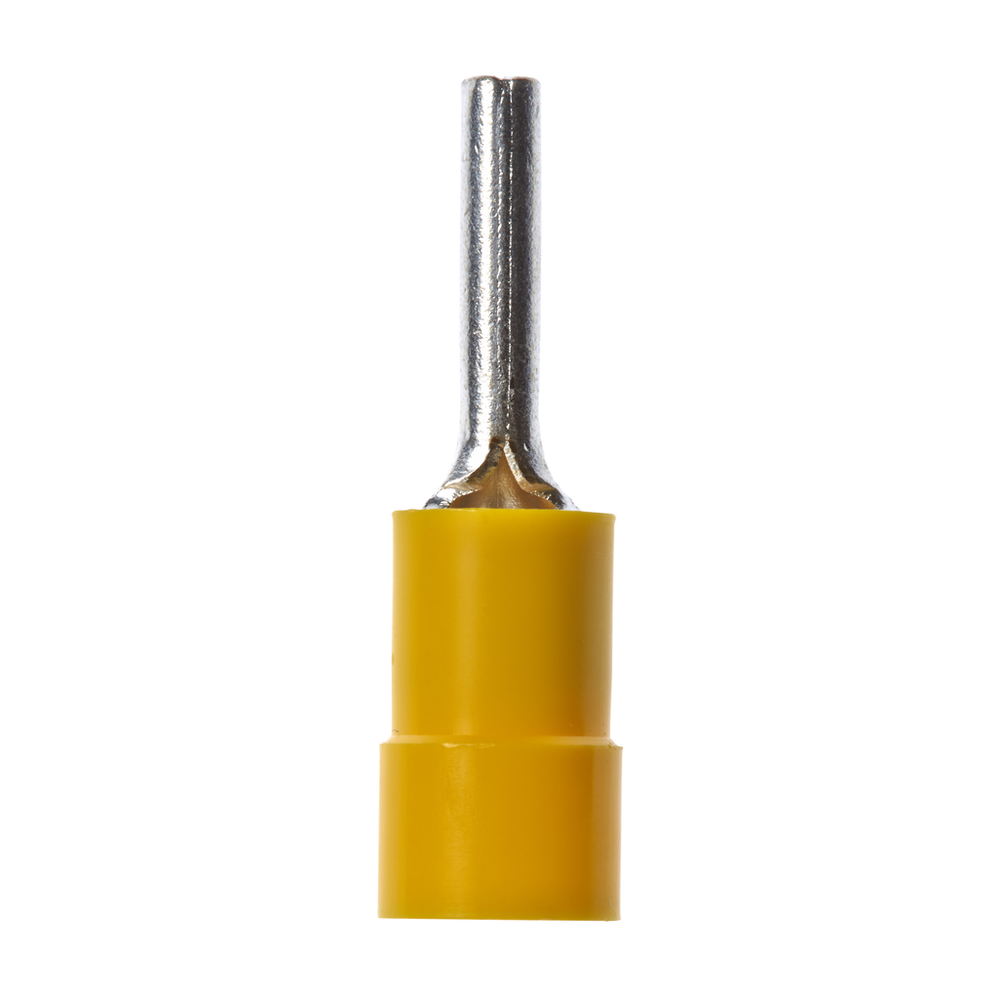

3M™ Scotchlok™ Pin Terminal - Vinyl Insulated Butted Seam, MVU10-55PX-A, 12-10 AWG

Features

  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 167 degrees F (75 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginTaiwan
Diameter (D)Pin Diameter 0.110 inch (2.79 mm)
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)4 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel StyleButted
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Inside Diameter0.135 Inch
Overall Length (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Overall Length (Imperial)1.06
Product ColorYellow
Connection Width (Imperial) UOMin
Pin Length (PL)0.55 Inch
Connection Width (Metric)2.794
Packaging50 per bottle
Terminal TypePin
Conductor Sizes (Imperial)12 - 10 AWG
Maximum Conductor Size (Metric)6 mm²
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Metric) UOMmm
Dimension EPin Length 0.55 inch (13.97 mm)
Overall Length (Metric)26.924
Insulation MaterialVinyl
Connection Width (Imperial)0.11
Units per Case500.0
