3M Products & Supplies

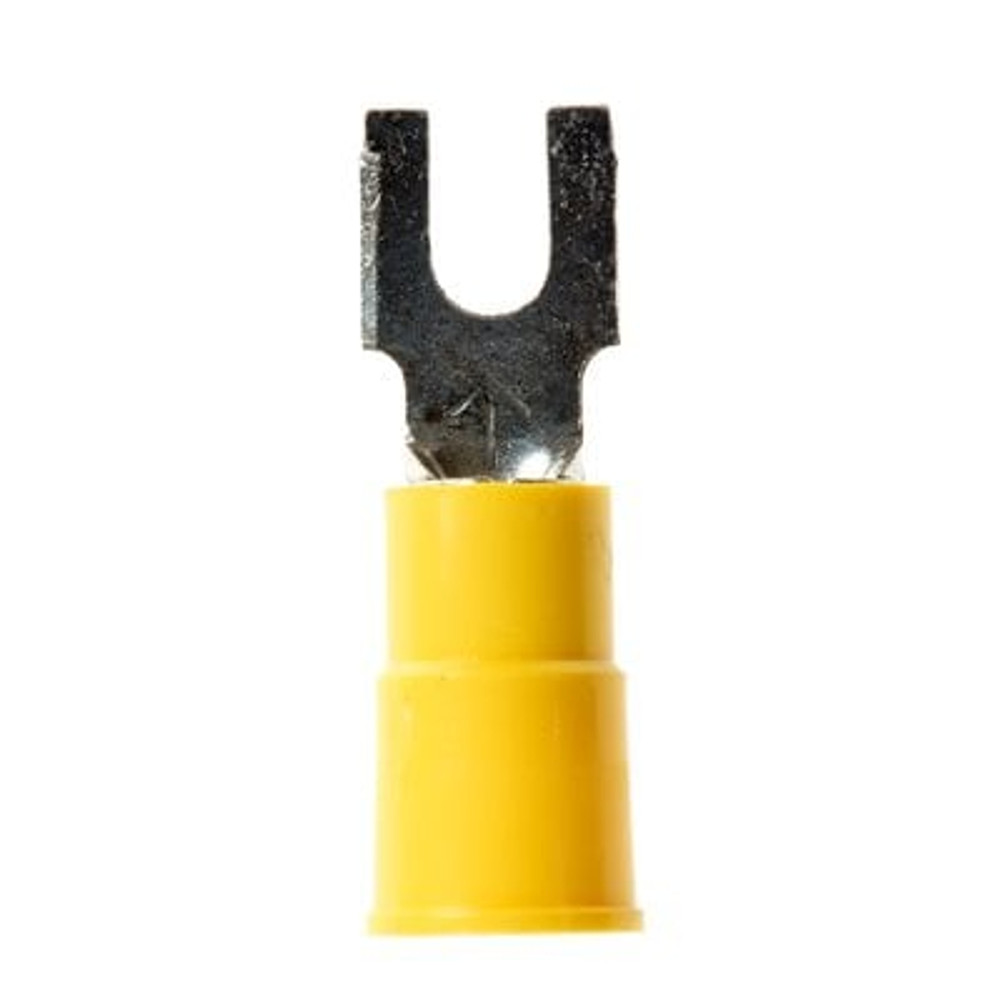

3M™ Scotchlok™ Block Fork Vinyl Insulated, 50/bottle, MVU10-6FBX, suitable for use in a terminal block, 500/Case - 7010398198

Sold As: 500-Pack
SKU: 7010398198
MPN: 7010398198
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588557
3M ID: 80611465016
5 Digit UPC: 58855
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Stud Diameter (Metric)3.505
Fork TypeBlock
Stud Size#6
Stud Diameter (Imperial)0.138
Clearance (C)0.29 Inch
Dimension E0.84 Inch
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)5.26 mm²
Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Barrel Length (Imperial)0.25 Inch
Barrel StyleButted
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeFork
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Units per Case500.0
Overall Width (Imperial)0.32
UL File NumberE70512
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Inside Diameter0.135 Inch
Insulation MaterialVinyl
Packaging50 per bottle
Minimum Conductor Size (Imperial)12 AWG
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Imperial)1.03
Terminal StyleBlock
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Conductor Size (Metric)3.31 mm²
