3M Products & Supplies

3M™ Scotchlok™ Block Fork Vinyl Insulated, 100/bottle, MV14-6FBX, suitable for use in a terminal block, 500/Case - 7000133325

Sold As: 100-Pack
SKU: 7000133325
MPN: 7000133325
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587461
3M ID: 80611458912
5 Digit UPC: 58746
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

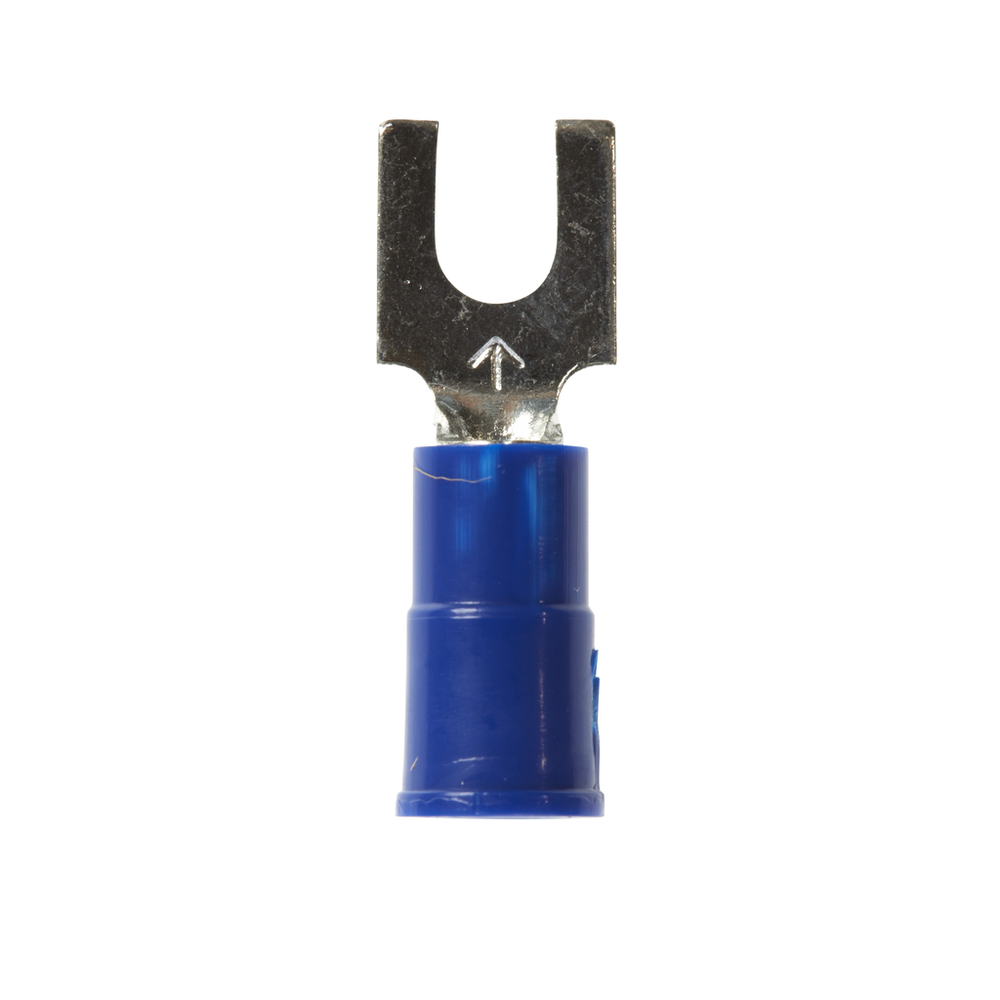

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block

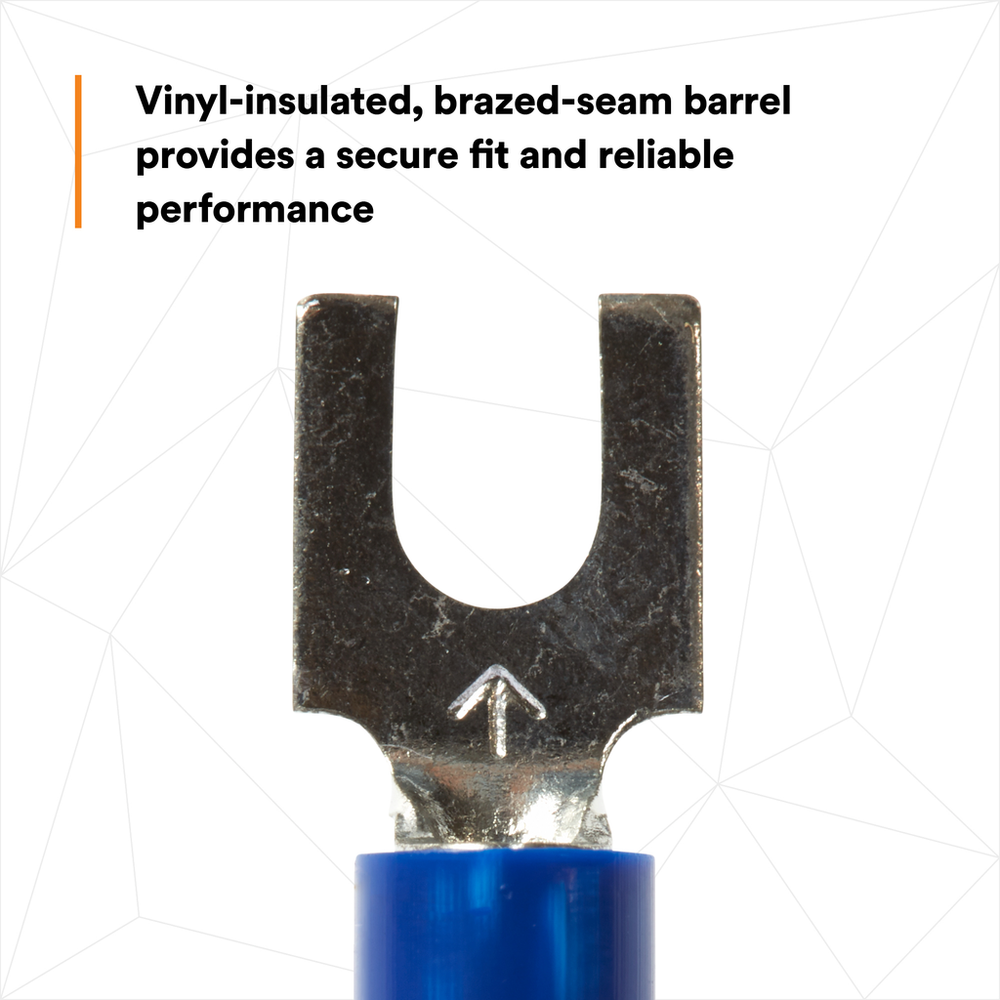

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Fork TypeBlock

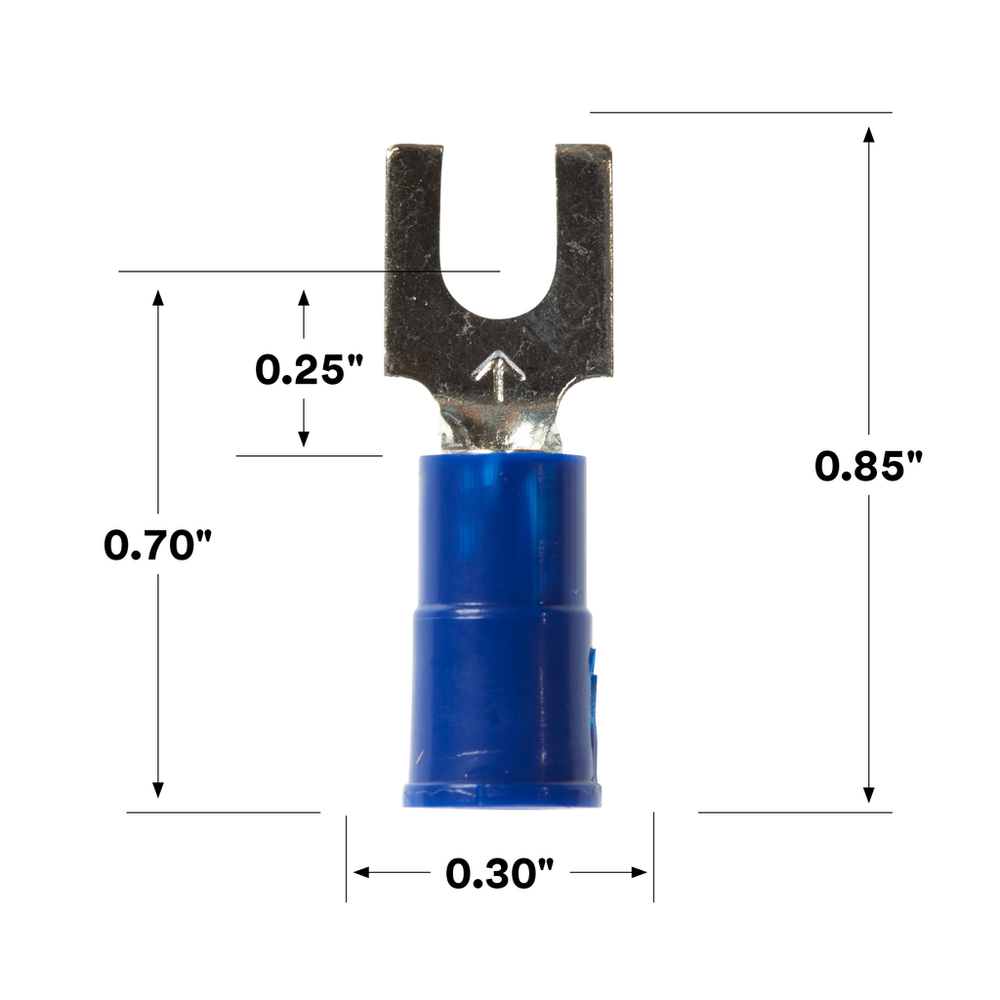

Overall Length (Imperial)0.85
Overall Length (Metric)21.59
Product ColorBlue
Overall Length (Imperial) UOMin
Packaging100 per bottle
Dimension E0.70 Inch
Units per Case500.0
Maximum Insulation Outside Diameter0.145 in
Maximum Insulation Outer Diameter (Imperial)0.17
UL File NumberE23438
Clearance (C)0.25 Inch
Maximum Operating Temperature (Fahrenheit)221.0
MaterialETP Copper
Maximum Recommended Voltage Rating600.0
Barrel Inside Diameter0.090 Inch
Minimum Conductor Size (Metric)1.31 mm²
Stud Size#6
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)14 AWG
Maximum Recommended Voltage Rating UOMV
Maximum Conductor Size (Metric)2.08 mm²
Terminal StyleBlock
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.3
Maximum Insulation Outer Diameter (Imperial) UOMin
Insulation MaterialVinyl
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Metric)3.7
Overall Width (Metric)7.62
Overall Length (Metric) UOMmm
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Metric) UOMmm
Barrel StyleBrazed
Overall Width (Metric) UOMmm
