3M Products & Supplies

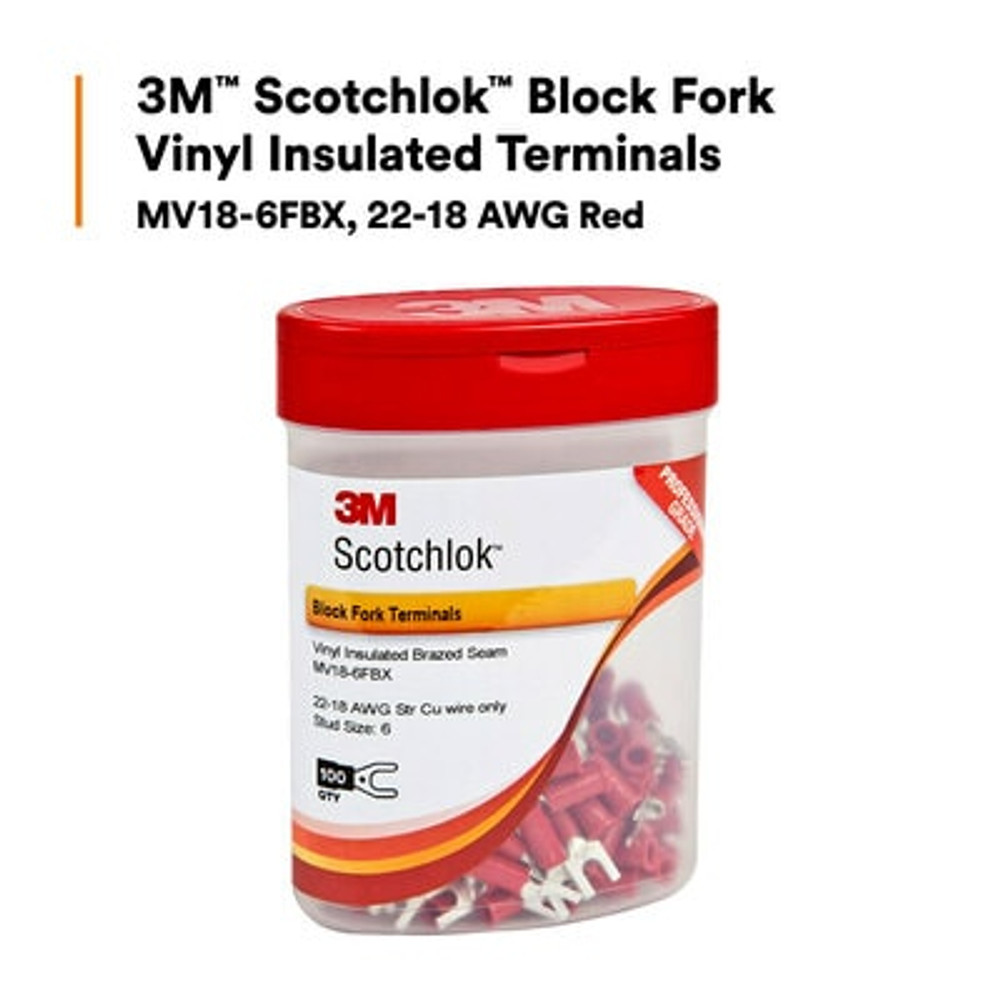

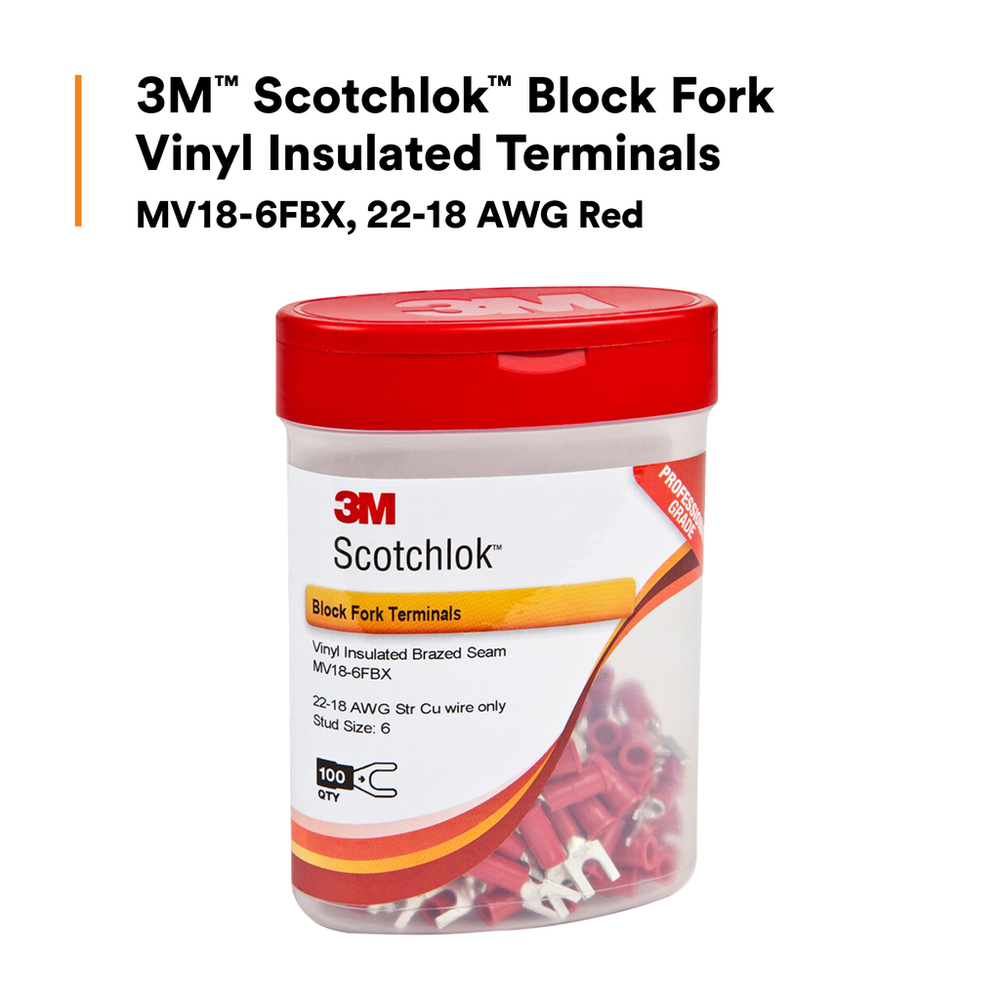

3M™ Scotchlok™ Block Fork Vinyl Insulated, 100/bottle, MV18-6FBX, suitable for use in a terminal block, 500/Case - 7000133322

Sold As: 100-Pack
SKU: 7000133322
MPN: 7000133322
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587430
3M ID: 80611458888
5 Digit UPC: 58743
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

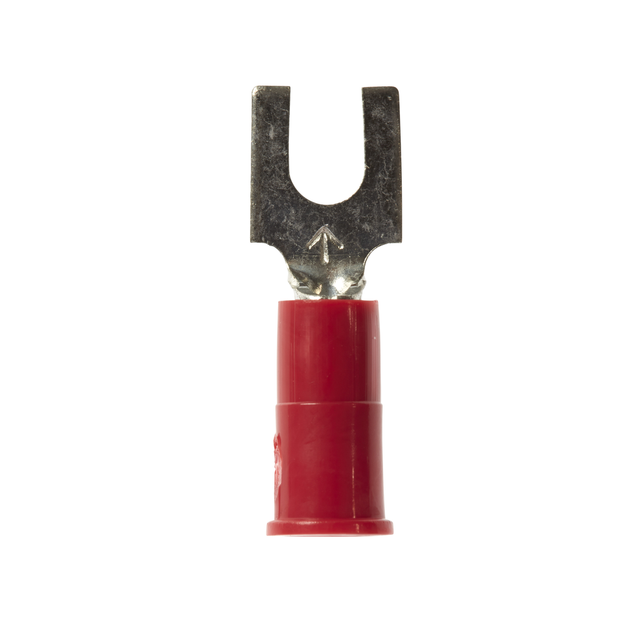

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

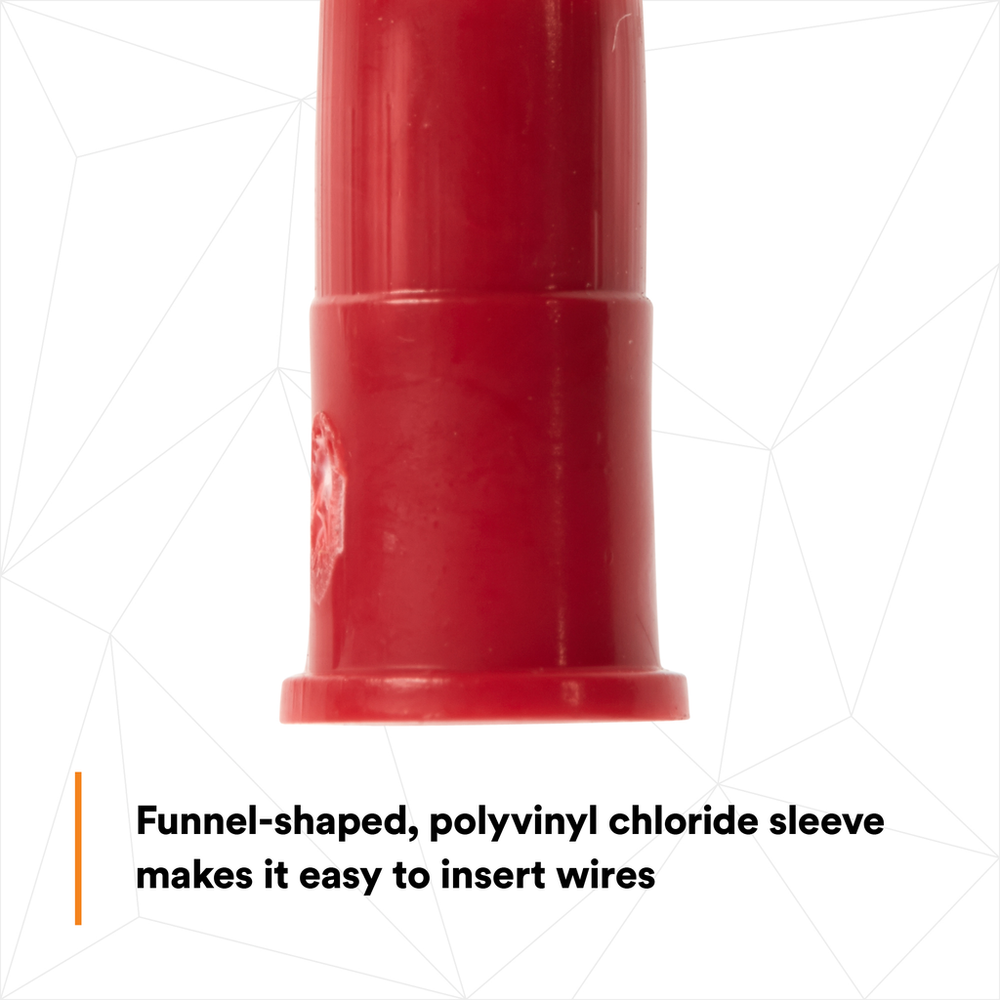

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

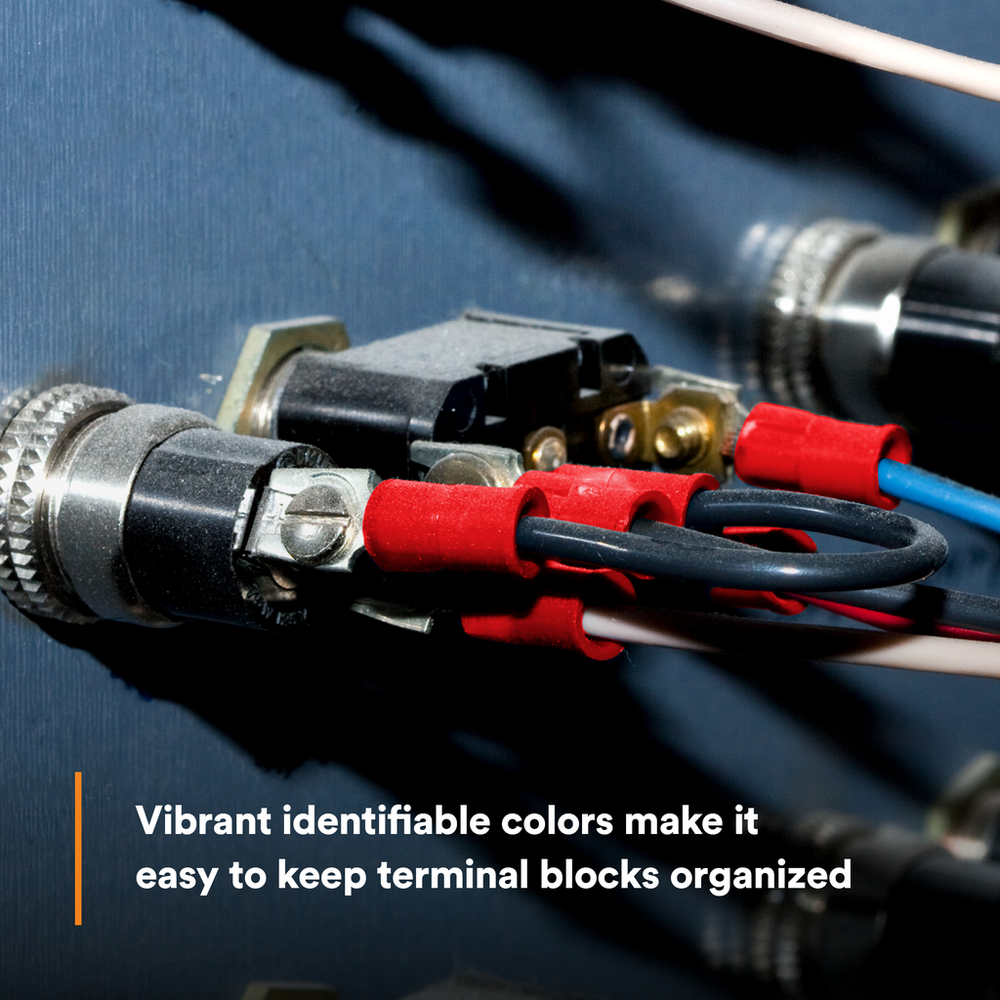

  • Suitable for use in a terminal block

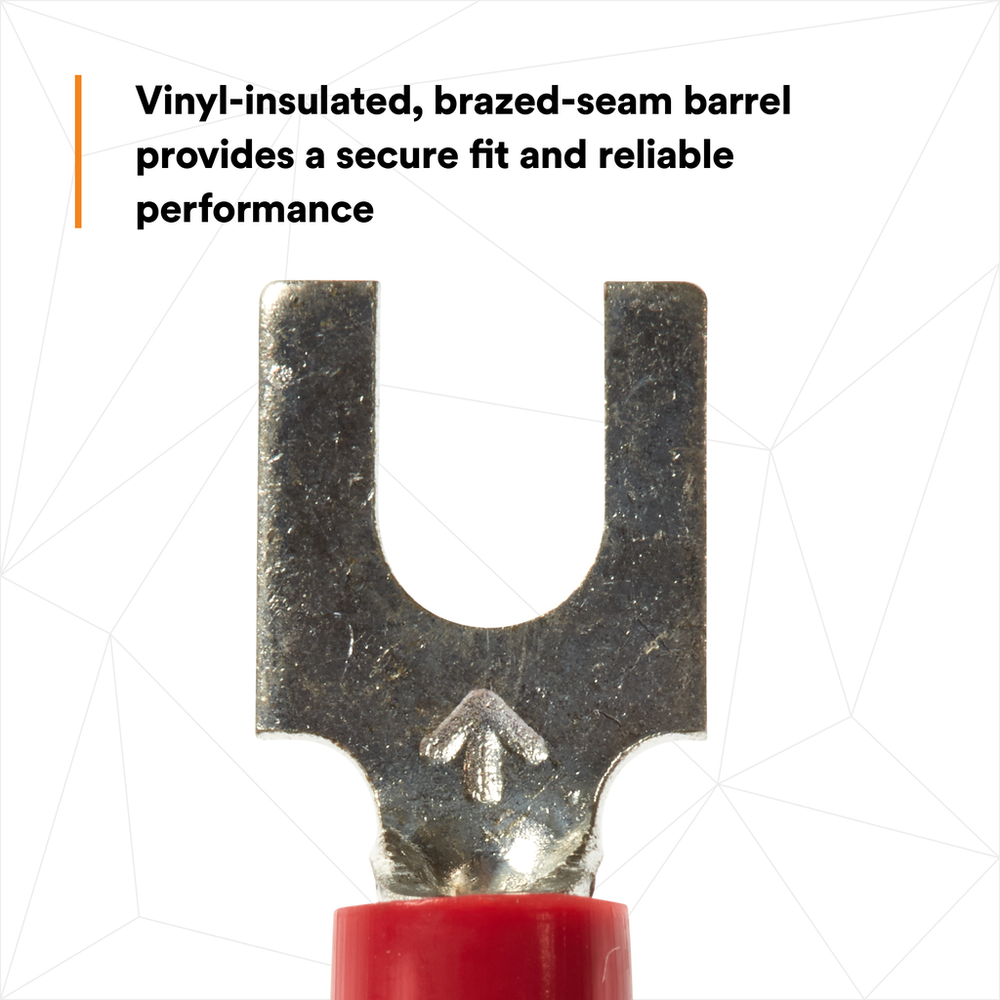

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)0.326 mm²
Overall Width (Metric)7.62
Maximum Conductor Size (Imperial)18 AWG
Packaging100 per bottle
Units per Case500.0
Maximum Operating Temperature (Fahrenheit)221.0
Product ColorRed
Maximum Insulation Outer Diameter (Imperial) UOMin
MaterialETP Copper
Barrel StyleBrazed
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Metric)3.7
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG

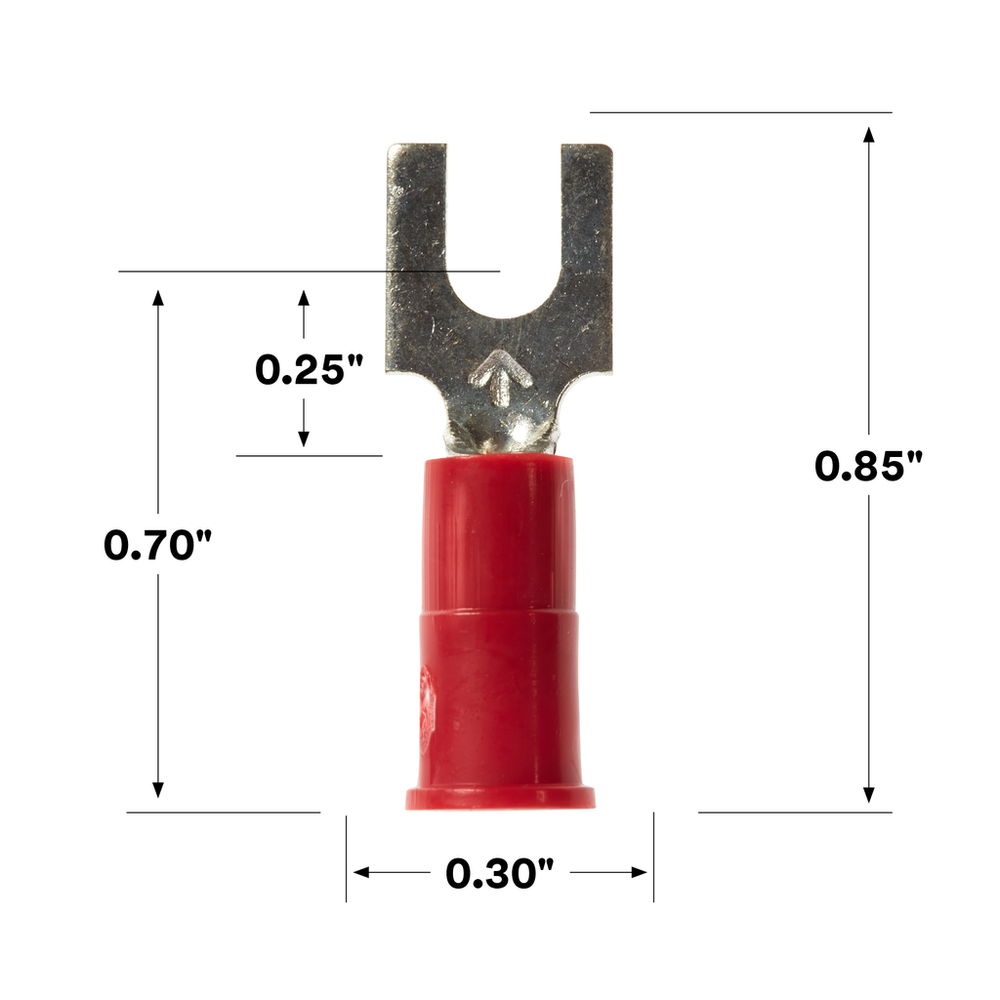

Clearance (C)0.25 Inch
Dimension E0.70 Inch
Overall Width (Metric) UOMmm
Terminal StyleBlock
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)21.59
Maximum Insulation Outside Diameter0.145 in
Maximum Insulation Outer Diameter (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Recommended Voltage Rating600.0
Overall Width (Imperial)0.3
Overall Length (Imperial)0.85
Stud Size#6
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Maximum Recommended Voltage Rating UOMV
Barrel Inside Diameter0.070 Inch
UL File NumberE23438
Maximum Conductor Size (Metric).0823 mm²
Fork TypeBlock
