3M Products & Supplies

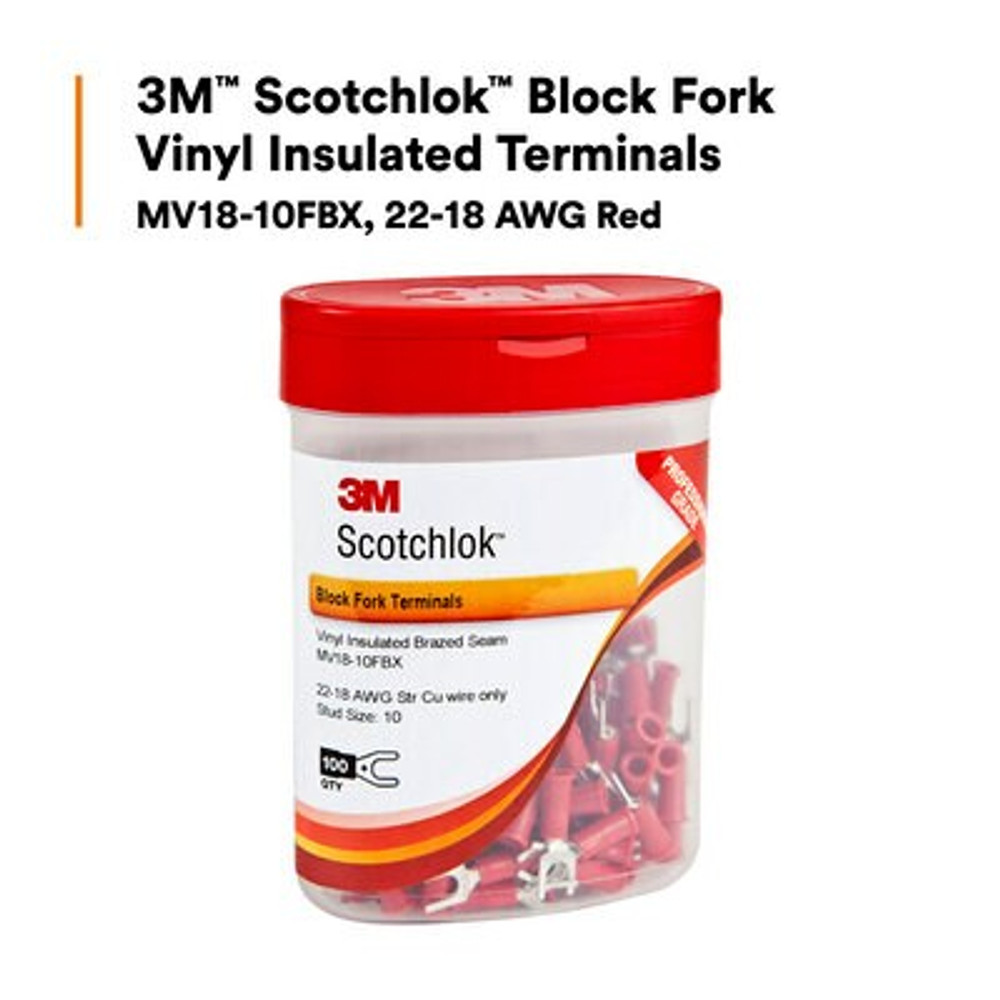

3M™ Scotchlok™ Block Fork Vinyl Insulated, 100/bottle, MV18-10FBX, suitable for use in a terminal block, 500/Case - 7000133324

Sold As: 100-Pack
SKU: 7000133324
MPN: 7000133324
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587454
3M ID: 80611458904
5 Digit UPC: 58745
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

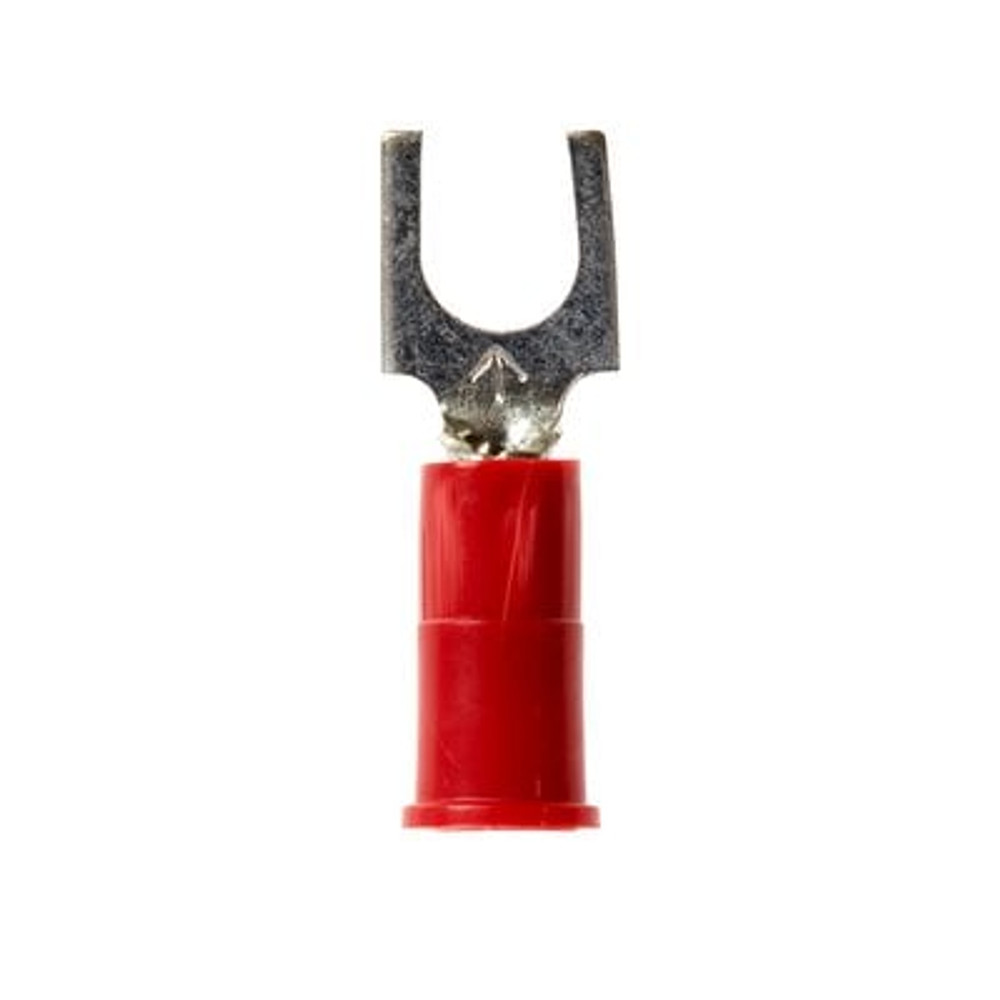

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

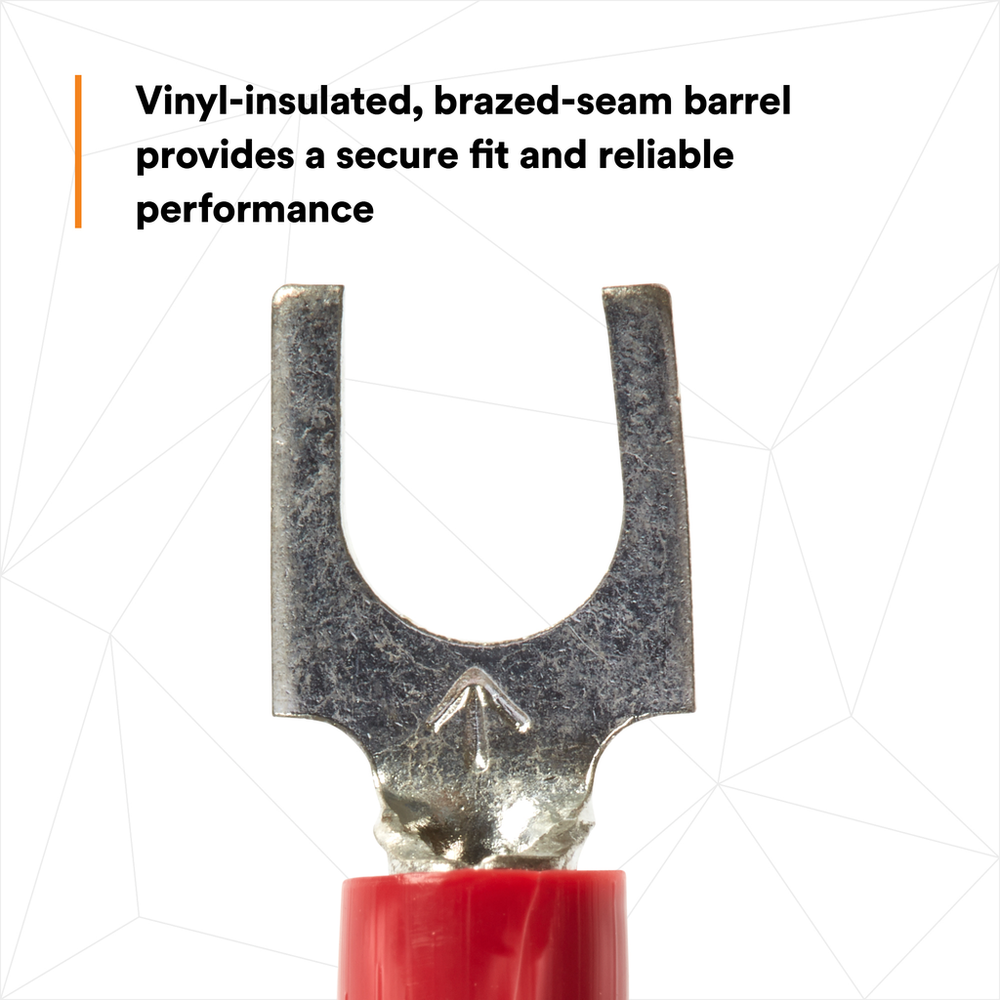

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

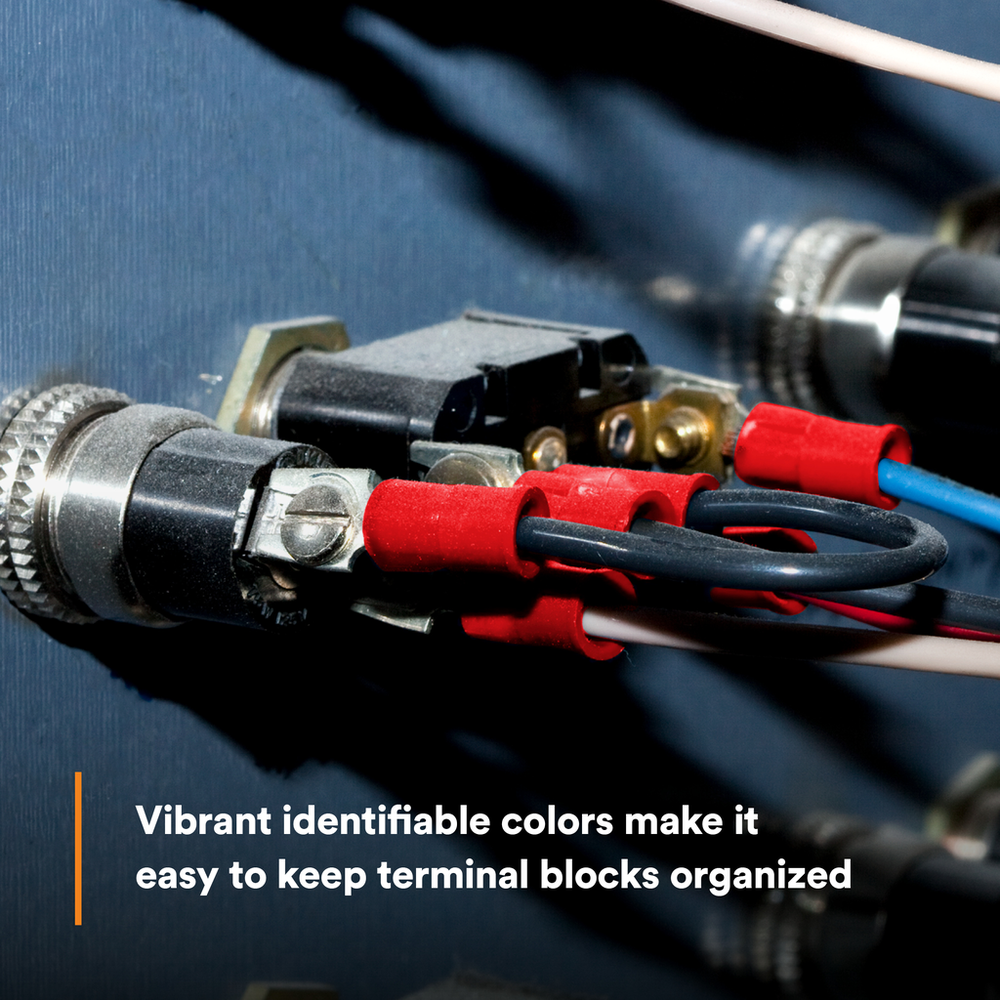

  • Suitable for use in a terminal block
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States

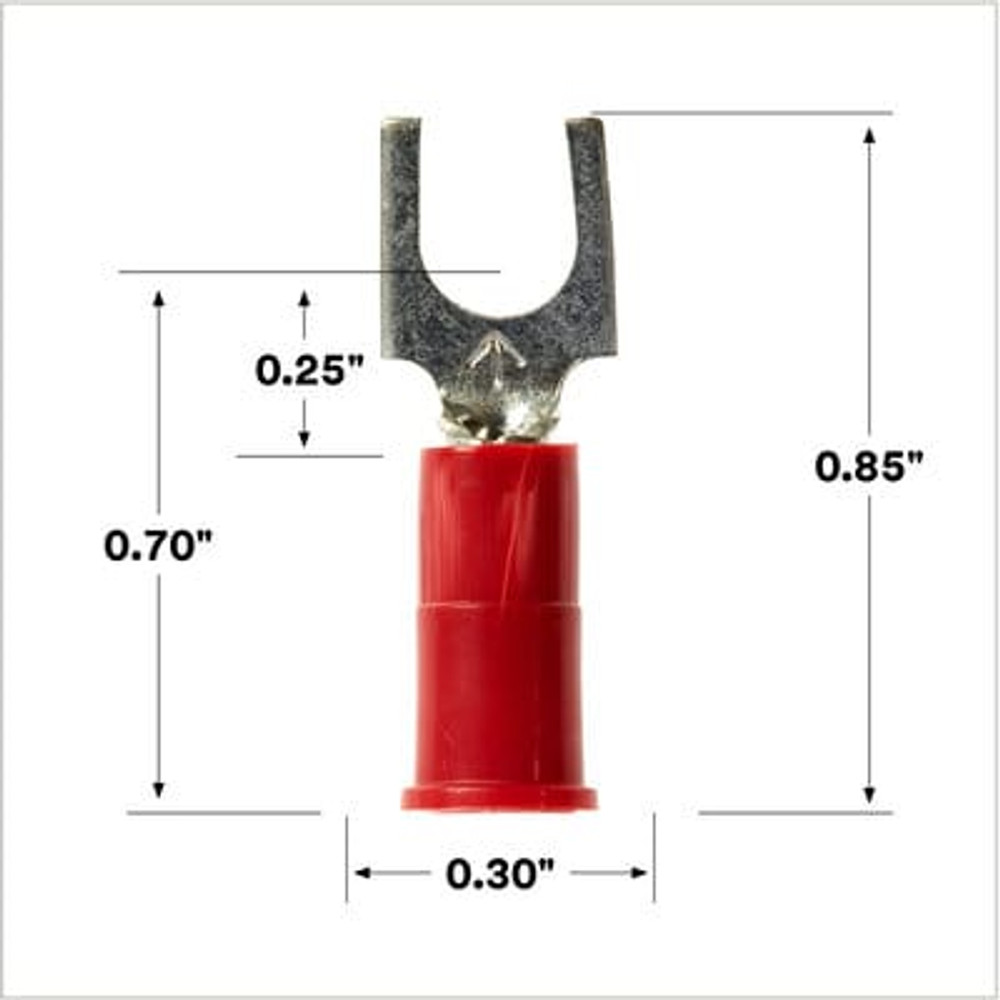

Dimension E0.70 Inch
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Metric) UOMmm
Overall Width (Imperial)0.3
Clearance (C)0.25 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Inside Diameter0.070 Inch
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit)221.0
UL File NumberE23438
Overall Length (Imperial) UOMin
Units per Case500.0
Overall Width (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Overall Width (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Metric)21.59
Product ColorRed
Insulation MaterialVinyl
Packaging100 per bottle
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Barrel StyleBrazed
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleBlock
Fork TypeBlock
Maximum Recommended Voltage Rating600.0
Maximum Recommended Voltage Rating UOMV
Overall Length (Imperial)0.85
Stud Size#10
Maximum Conductor Size (Metric).0823 mm²
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Insulation Outer Diameter (Metric) UOMmm
MaterialETP Copper
Maximum Insulation Outer Diameter (Metric)3.7
