3M Products & Supplies

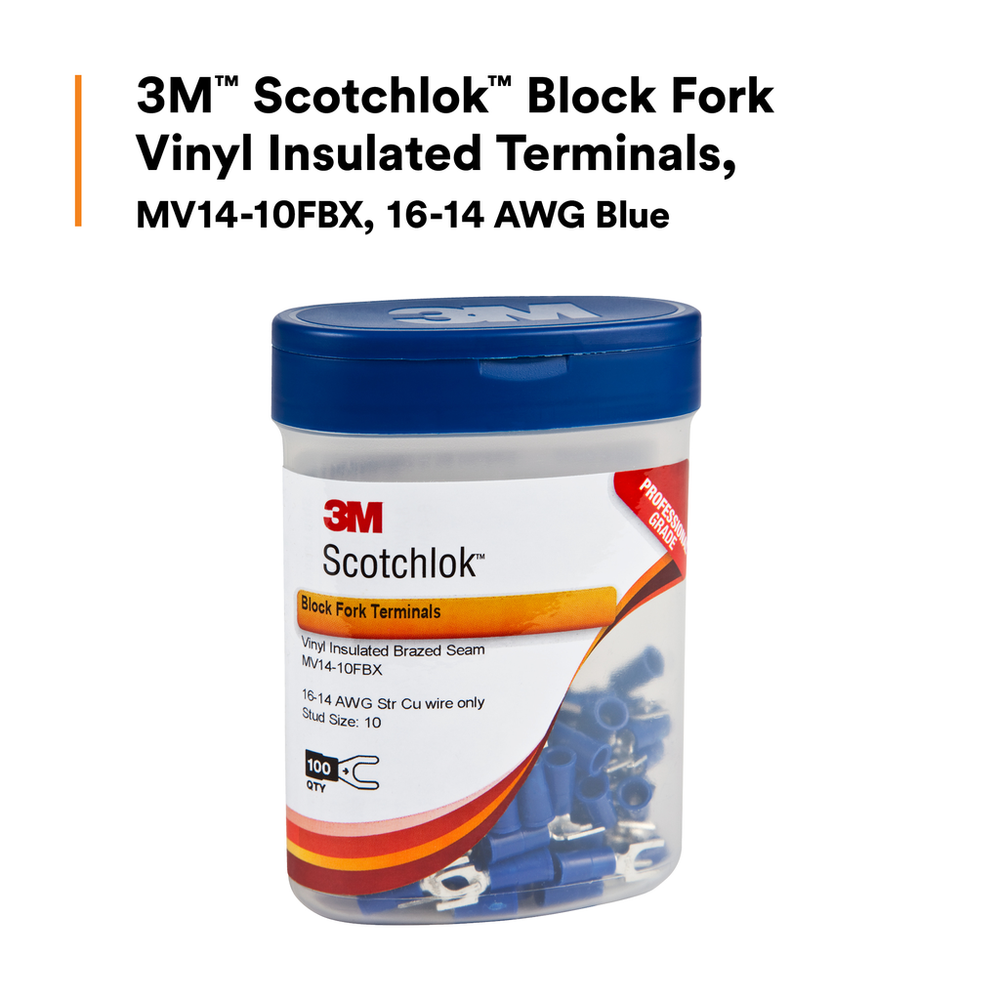

3M™ Scotchlok™ Block Fork Vinyl Insulated, 100/bottle, MV14-10FBX, suitable for use in a terminal block, 500/Case - 7000133327

Sold As: 100-Pack
SKU: 7000133327
MPN: 7000133327
For an accurate lead time please contact us
UPC: 00051128587485
3M ID: 80611458938
5 Digit UPC: 58748
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

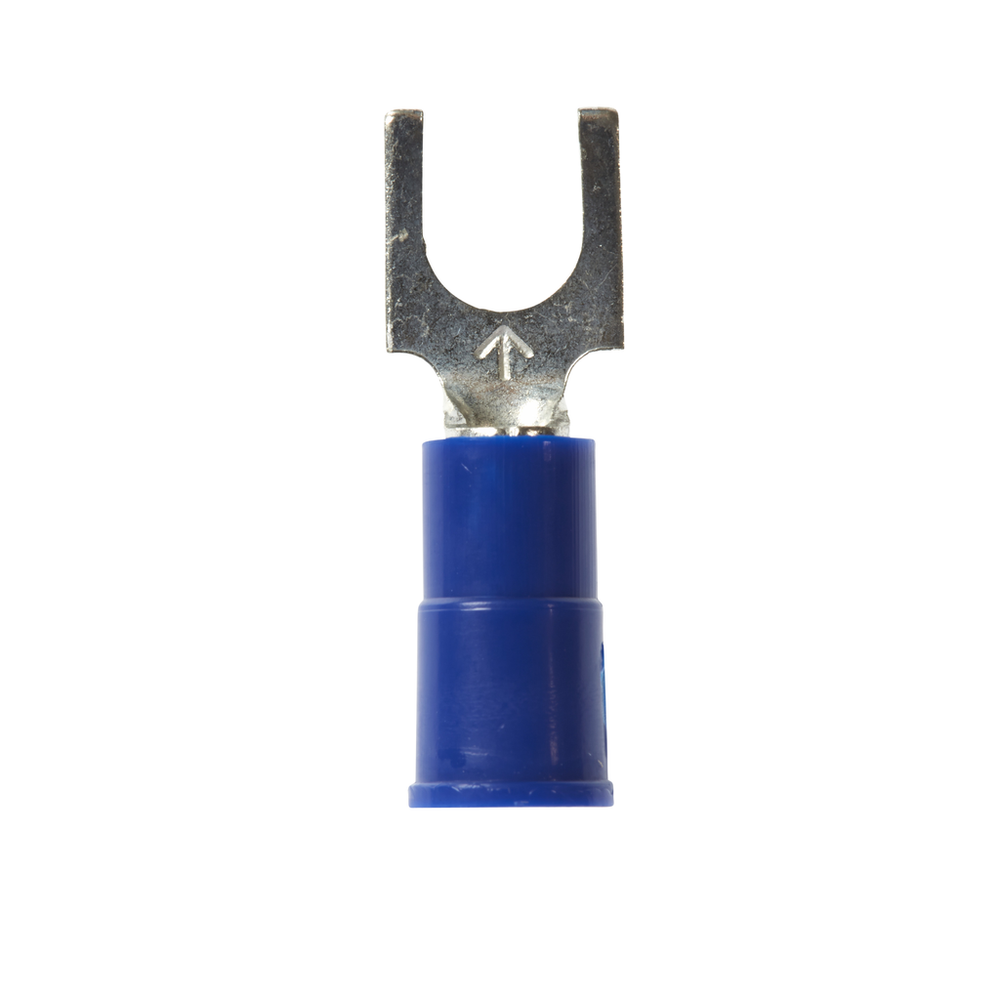

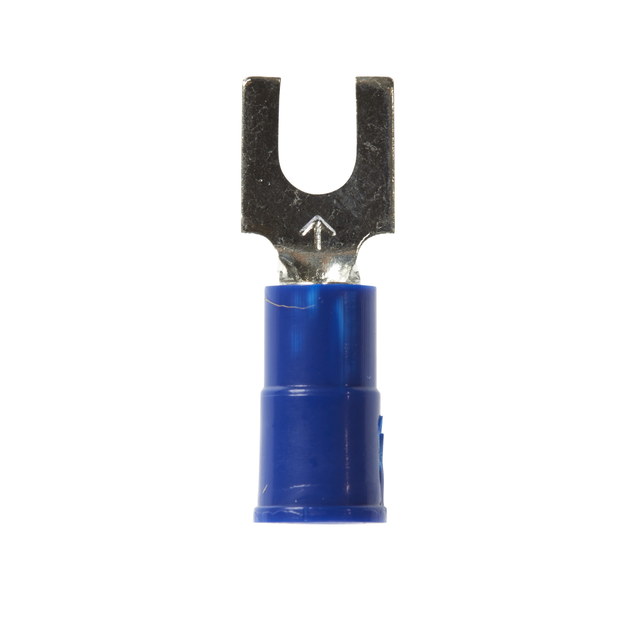

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

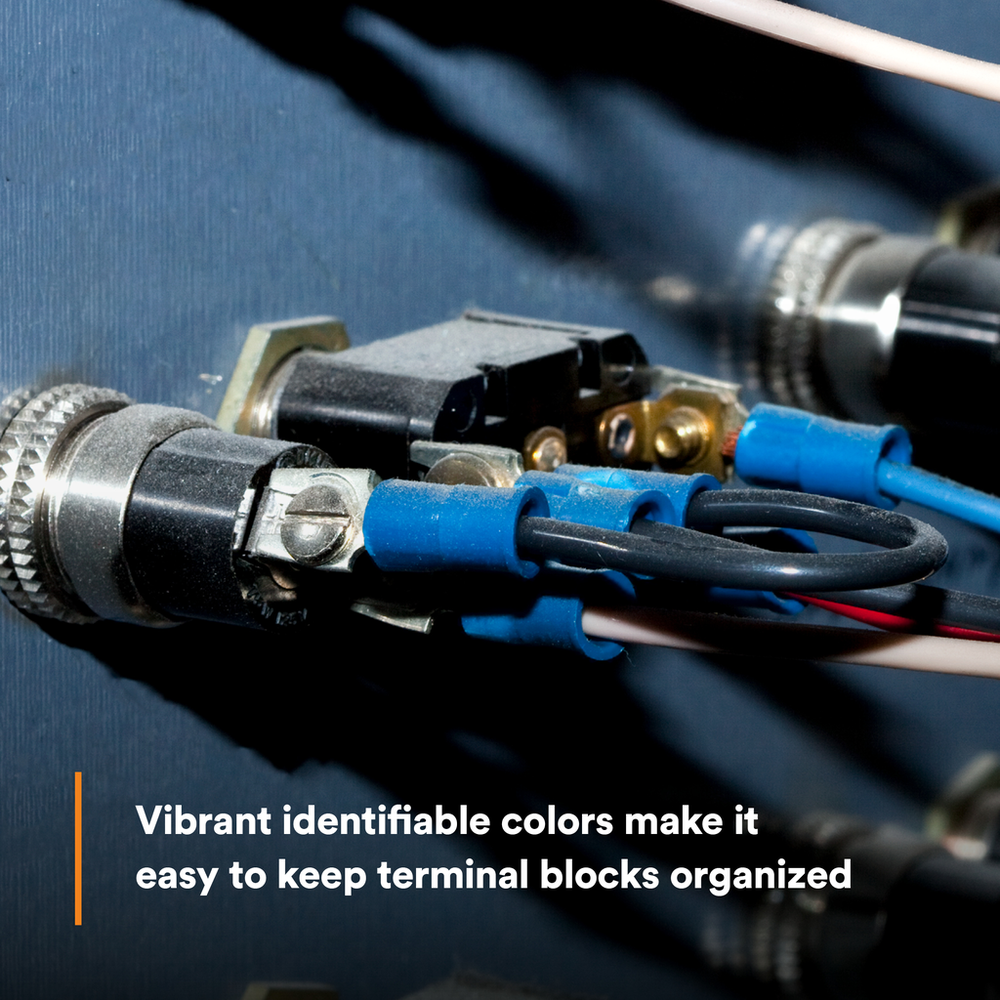

  • Suitable for use in a terminal block

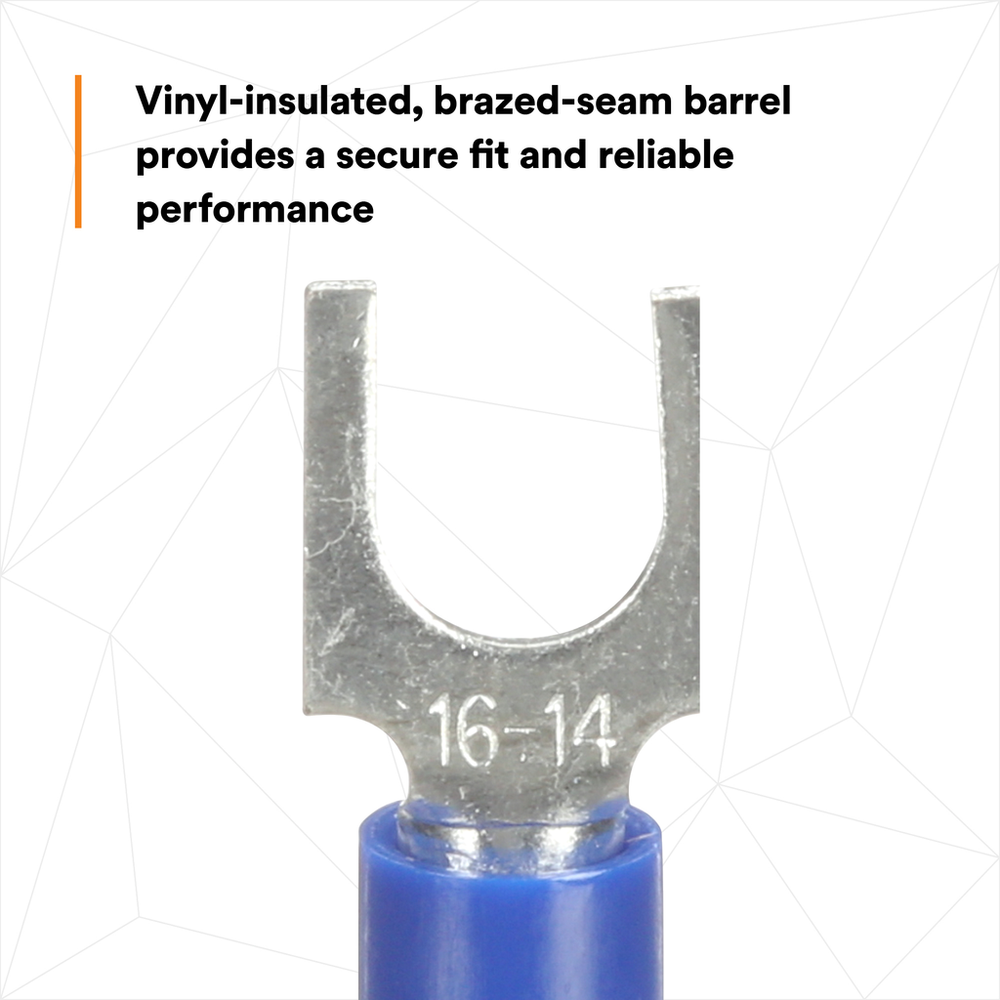

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

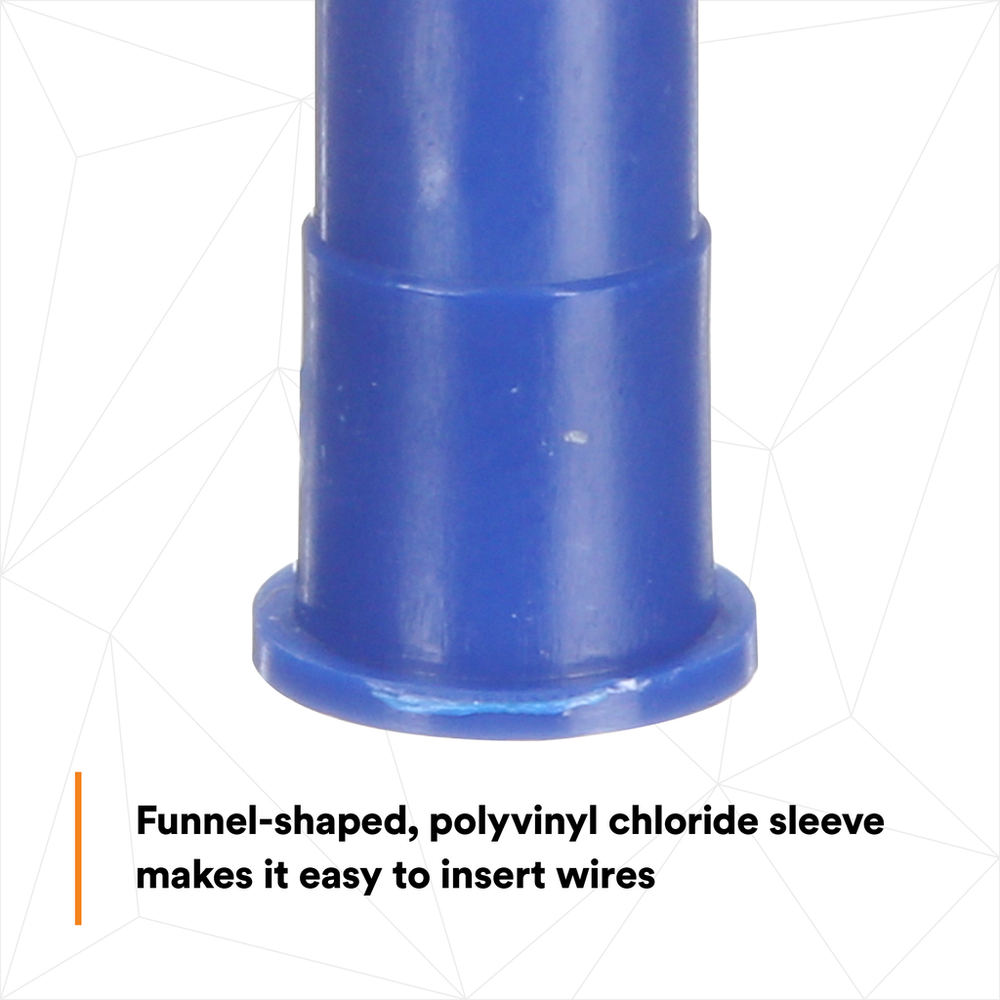

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Fork TypeBlock
Units per Case500.0
Product ColorBlue
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Width (Imperial) UOMin
Insulation MaterialVinyl
Maximum Conductor Size (Imperial)14 AWG
Minimum Conductor Size (Metric)1.31 mm²
Packaging100 per bottle
UL File NumberE23438
Overall Width (Metric)7.62
Terminal StyleBlock
Maximum Insulation Outer Diameter (Imperial)0.17
Maximum Recommended Voltage Rating600.0
Overall Length (Imperial)0.85
Maximum Insulation Outer Diameter (Metric)3.7
Overall Length (Metric) UOMmm
Overall Width (Imperial)0.3
Stud Size#10
Barrel Inside Diameter0.090 Inch
Clearance (C)0.25 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel StyleBrazed
Maximum Insulation Outside Diameter0.145 in
MaterialETP Copper
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)2.08 mm²
Dimension E0.70 Inch
Overall Length (Metric)21.59
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Imperial)16 AWG
