3M Products & Supplies

3M™ Scotchlok™ Block Fork Vinyl Insulated, 100/bottle, MV14-8FBX, suitable for use in a terminal block, 500/Case - 7000133326

Sold As: 100-Pack
SKU: 7000133326
MPN: 7000133326
For an accurate lead time please contact us
UPC: 00051128587478
3M ID: 80611458920
5 Digit UPC: 58747
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

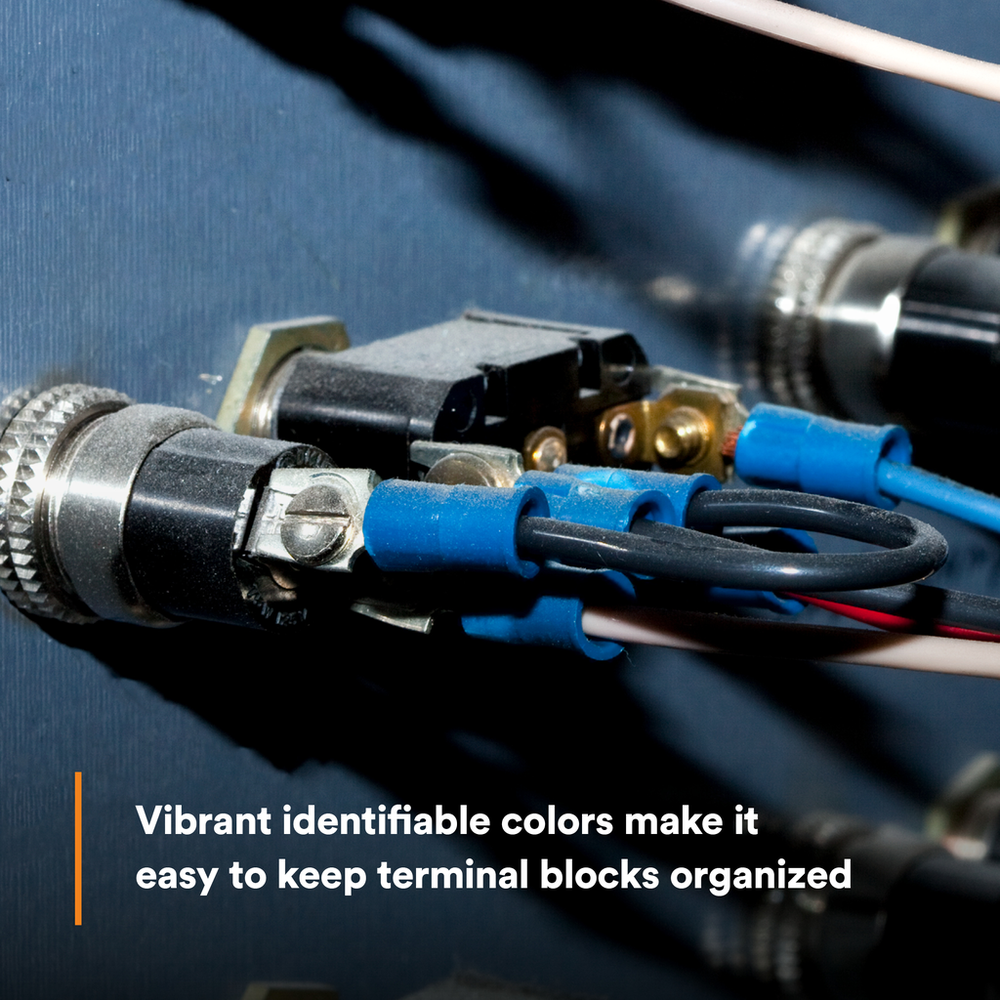

  • Suitable for use in a terminal block
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

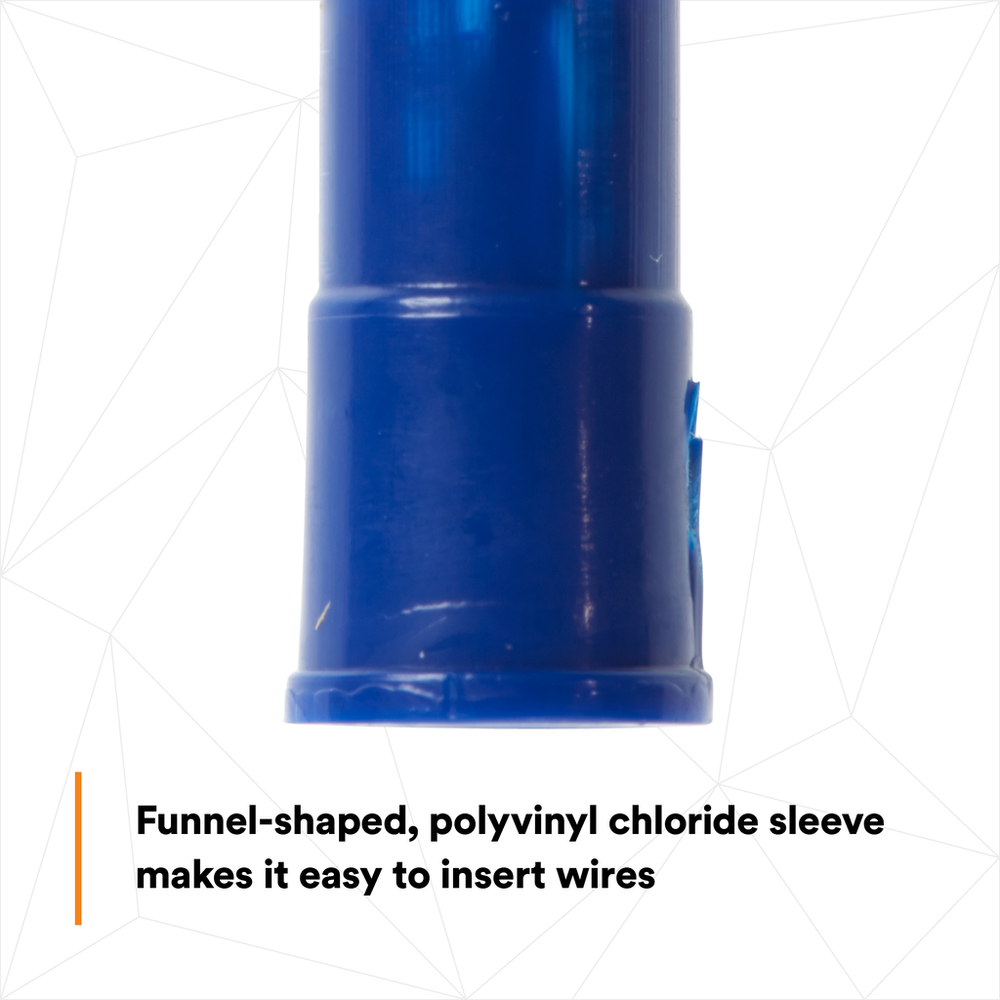

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)14 AWG
UL File NumberE23438
Maximum Operating Temperature (Fahrenheit) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Metric)3.7

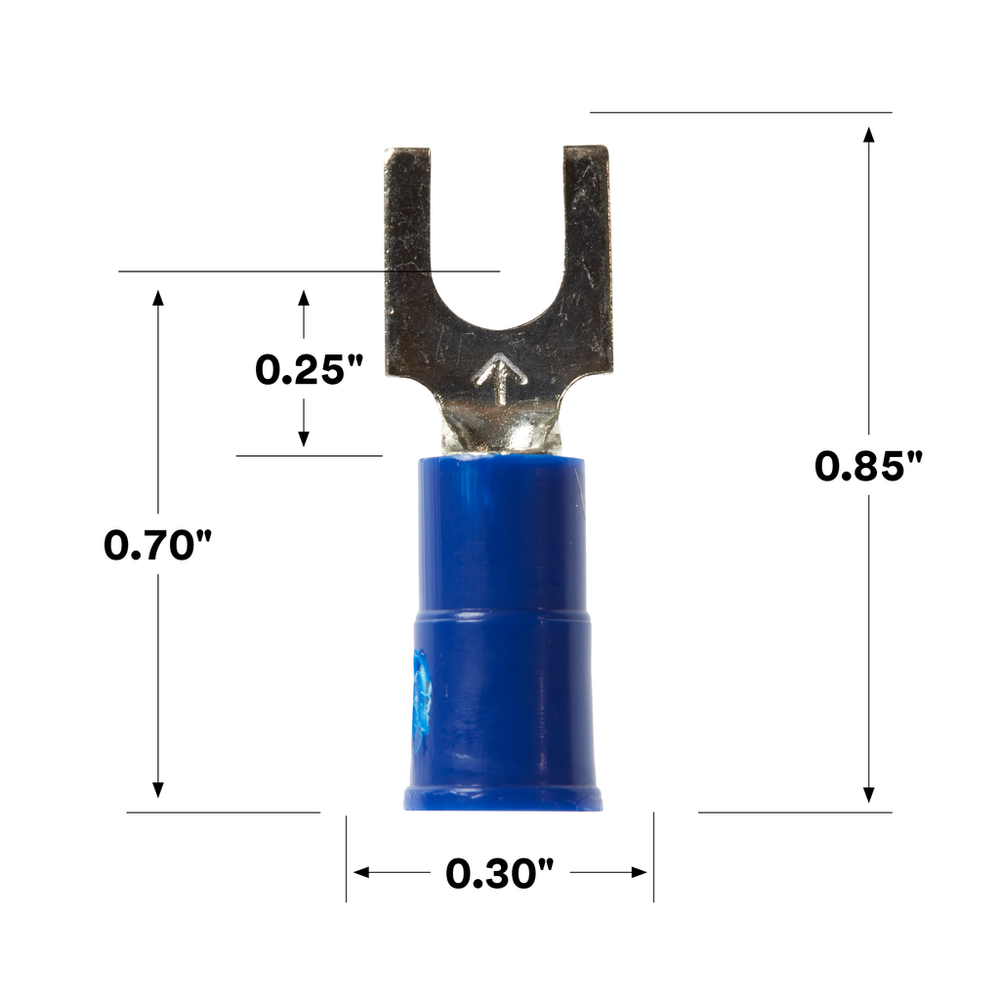

Dimension E0.70 Inch
Maximum Insulation Outer Diameter (Imperial)0.17
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Clearance (C)0.25 Inch
Insulation MaterialVinyl
Maximum Recommended Voltage Rating UOMV
Barrel StyleBrazed
Overall Length (Metric) UOMmm
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Imperial)0.3
Overall Length (Metric)21.59
Overall Width (Metric)7.62
Maximum Operating Temperature (Celsius) UOMDegree
Packaging100 per bottle
Overall Width (Imperial) UOMin
Stud Size#8
Fork TypeBlock
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Maximum Recommended Voltage Rating600.0
MaterialETP Copper
Minimum Conductor Size (Metric)1.31 mm²
Maximum Conductor Size (Metric)2.08 mm²
Units per Case500.0
Overall Width (Metric) UOMmm
Product ColorBlue
Maximum Insulation Outside Diameter0.145 in
Terminal StyleBlock
Barrel Inside Diameter0.090 Inch
Overall Length (Imperial)0.85
