3M Products & Supplies

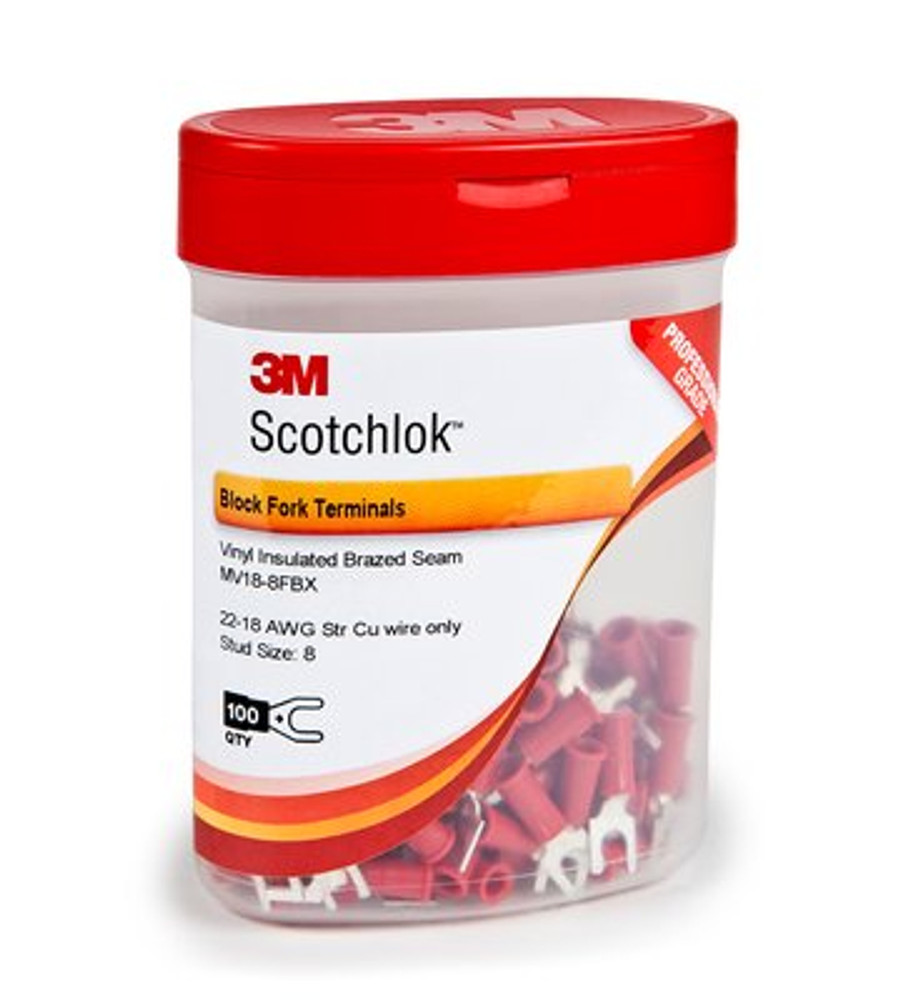

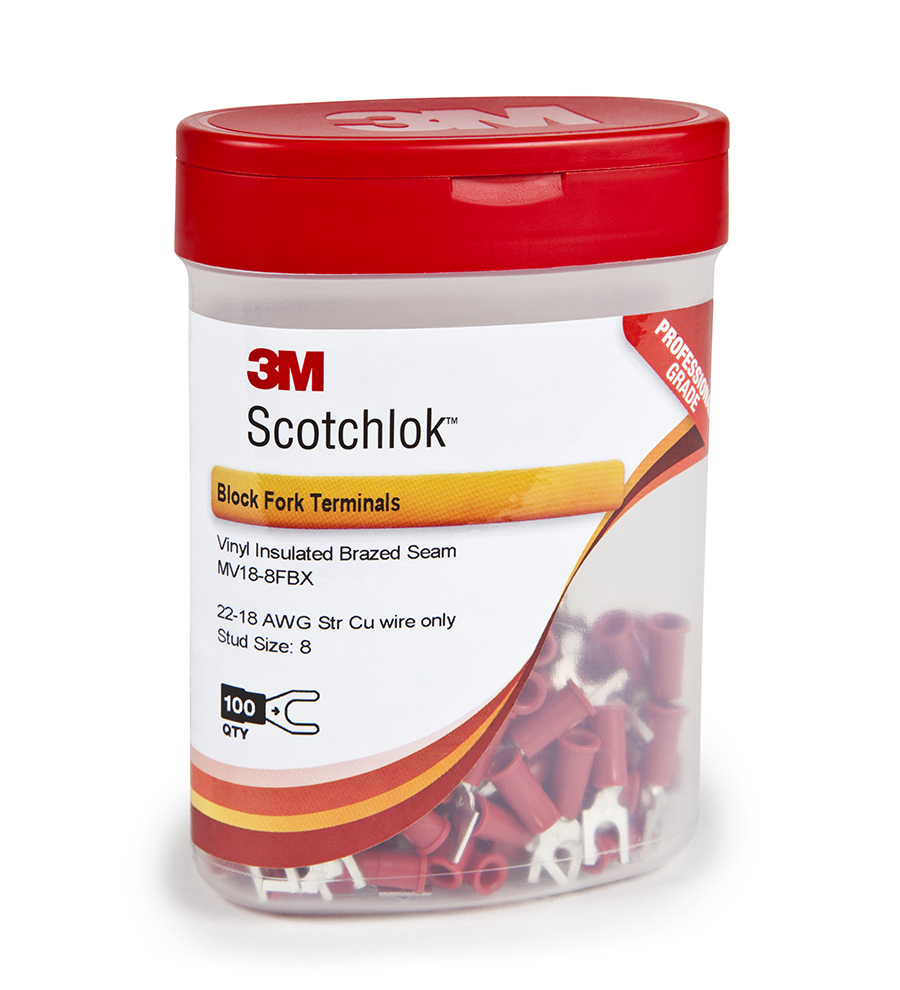

3M™ Scotchlok™ Block Fork Vinyl Insulated, 100/bottle, MV18-8FBX, suitable for use in a terminal block, 500/Case - 7000133323

Sold As: 100-Pack
SKU: 7000133323
MPN: 7000133323
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587447
3M ID: 80611458896
5 Digit UPC: 58744
$76.71 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

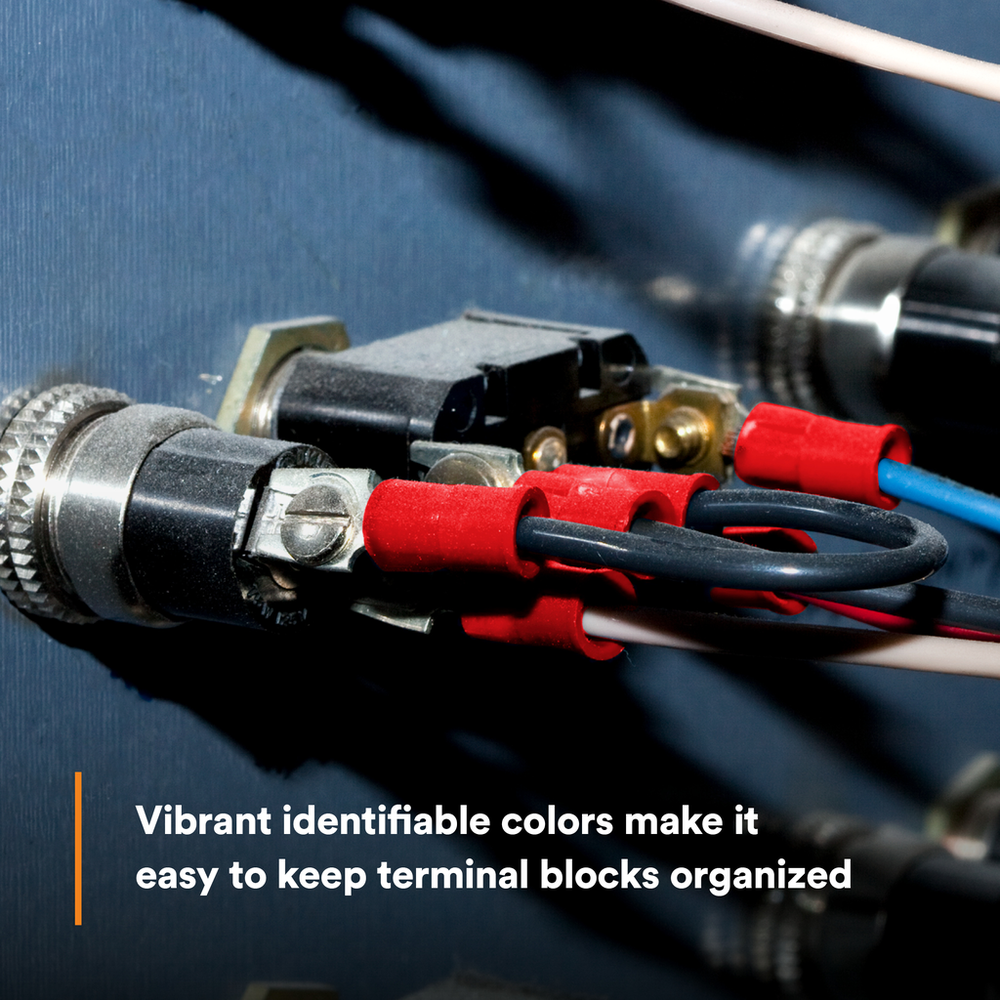

  • Suitable for use in a terminal block
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric).0823 mm²
Minimum Conductor Size (Metric)0.326 mm²
Clearance (C)0.25 Inch
MaterialETP Copper
UL File NumberE23438
Maximum Recommended Voltage Rating UOMV
Product ColorRed
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Overall Width (Metric)7.62
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Fork TypeBlock
Maximum Conductor Size (Imperial)18 AWG
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)21.59
Dimension E0.70 Inch
Overall Length (Imperial)0.85
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Inside Diameter0.070 Inch
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric)3.7
Insulation MaterialVinyl
Units per Case500.0
Maximum Insulation Outer Diameter (Imperial)0.145
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Imperial)0.3
Stud Size#8
Terminal StyleBlock
Packaging100 per bottle
Barrel StyleBrazed
