3M Products & Supplies

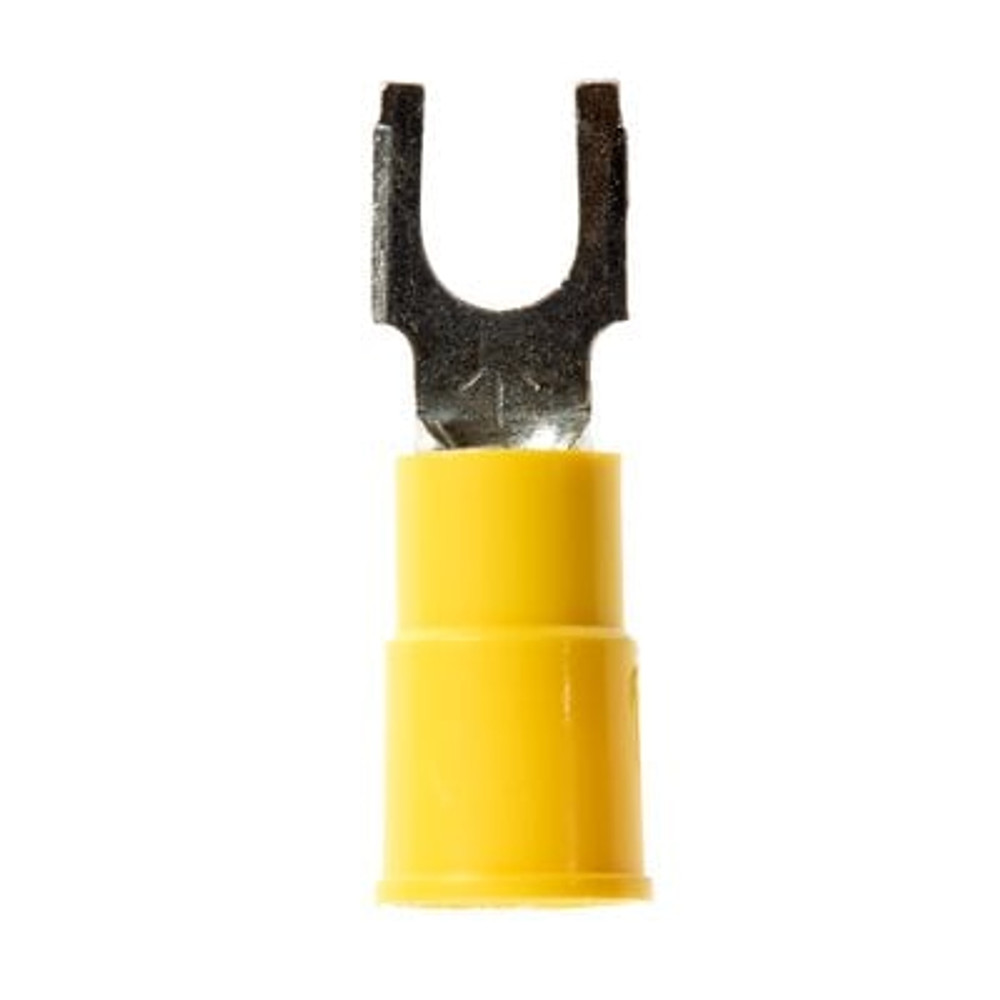

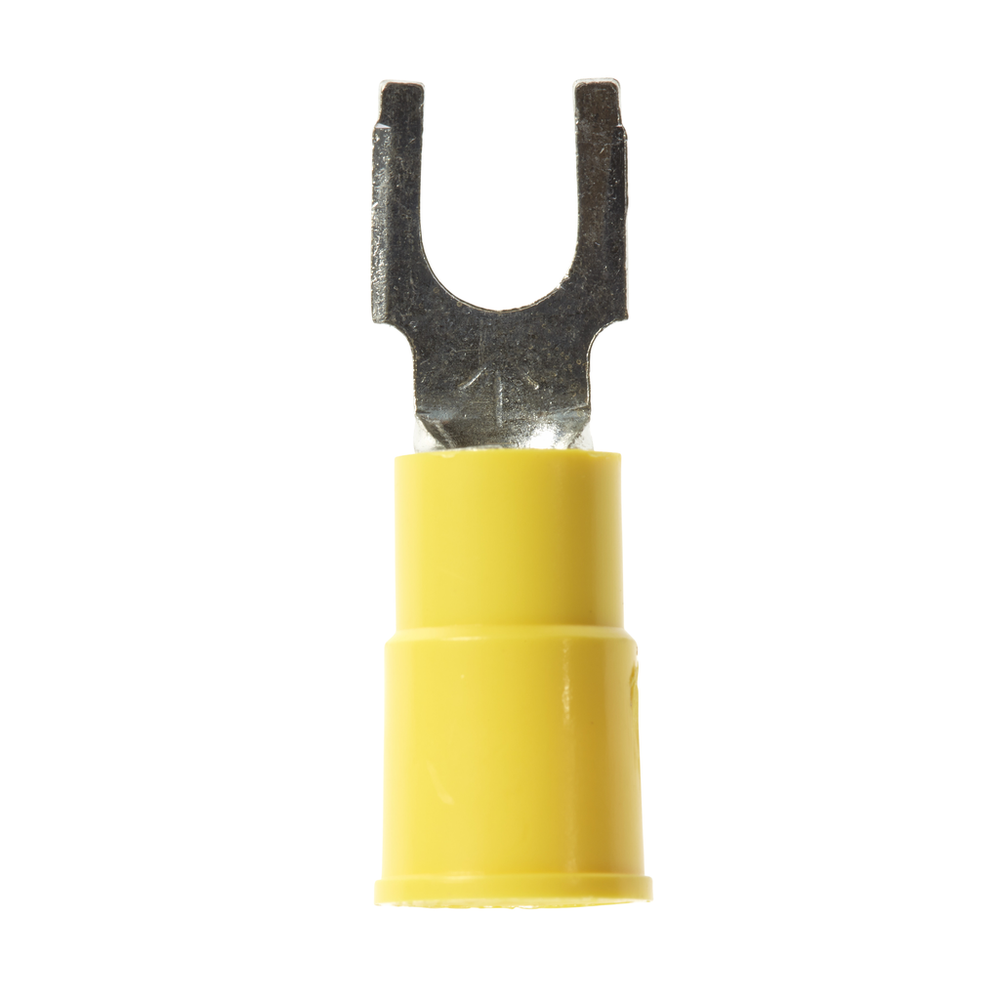

3M™ Scotchlok™ Block Fork Vinyl Insulated, 50/bottle, MVU10-10FBX, suitable for use in a terminal block, 500/Case - 7010398240

Sold As: 50-Pack
SKU: 7010398240
MPN: 7010398240
For an accurate lead time please contact us
UPC: 10051128590369
3M ID: 80611466824
5 Digit UPC: 59036
$23.34 ($0.47 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Clearance (C)0.29 Inch
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)3.31 mm²
Dimension E0.84 Inch
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Stud Size#10
UL File NumberE70512
Barrel Inside Diameter0.135 Inch
Overall Width (Imperial) UOMin
Units per Case500.0
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Barrel StyleButted
Maximum Operating Temperature (Celsius)105.0
Barrel Length (Imperial)0.25 Inch
Packaging50 per bottle
Maximum Insulation Outer Diameter (Imperial)0.25
Stud Diameter (Imperial)0.19
Maximum Conductor Size (Metric)5.26 mm²
Terminal StyleBlock
Overall Length (Imperial)1.03
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Terminal TypeFork
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Fork TypeBlock
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Width (Imperial)0.32
Stud Diameter (Metric) UOMmm
Stud Diameter (Metric)4.826
