3M Products & Supplies

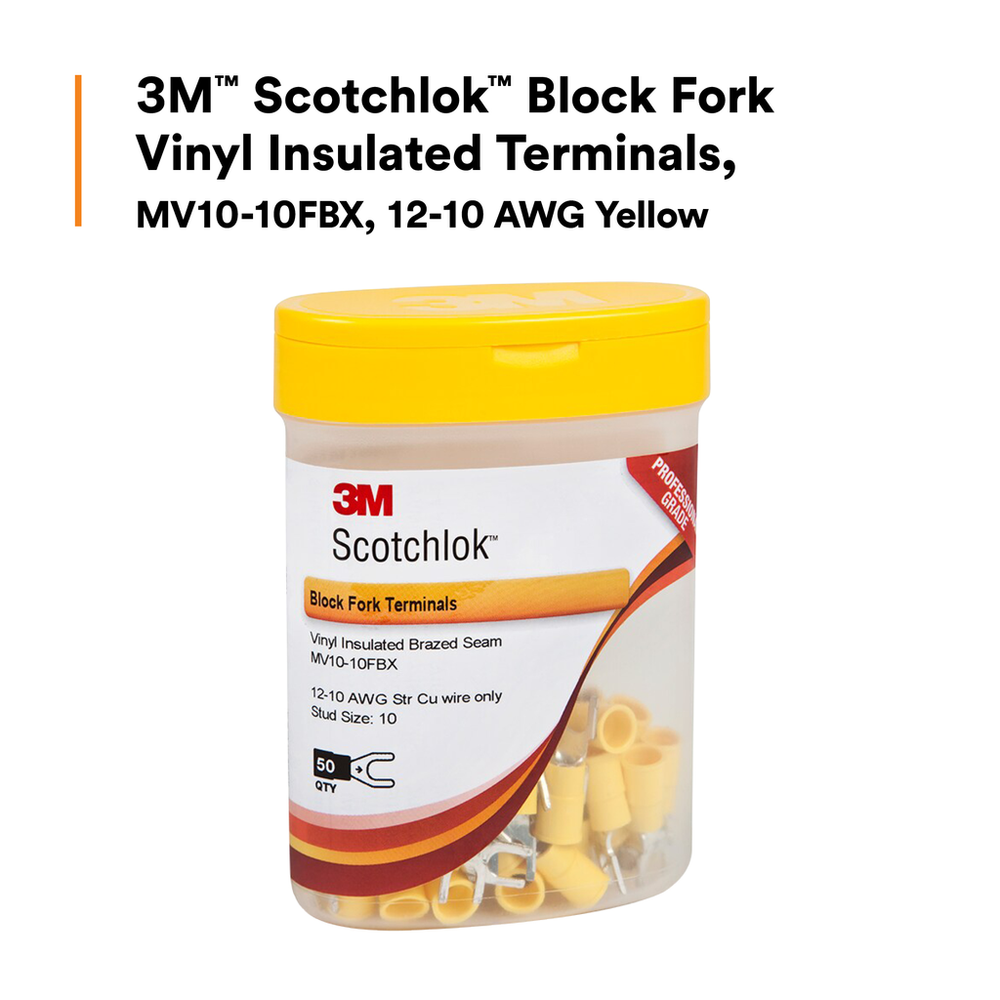

3M™ Scotchlok™ Block Fork Vinyl Insulated, 50/bottle, MV10-10FBX, suitable for use in a terminal block, 500/Case - 7000133343

Sold As: 50-Pack
SKU: 7000133343
MPN: 7000133343
For an accurate lead time please contact us
UPC: 00051128587669
3M ID: 80611464126
5 Digit UPC: 58766
$48.70 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

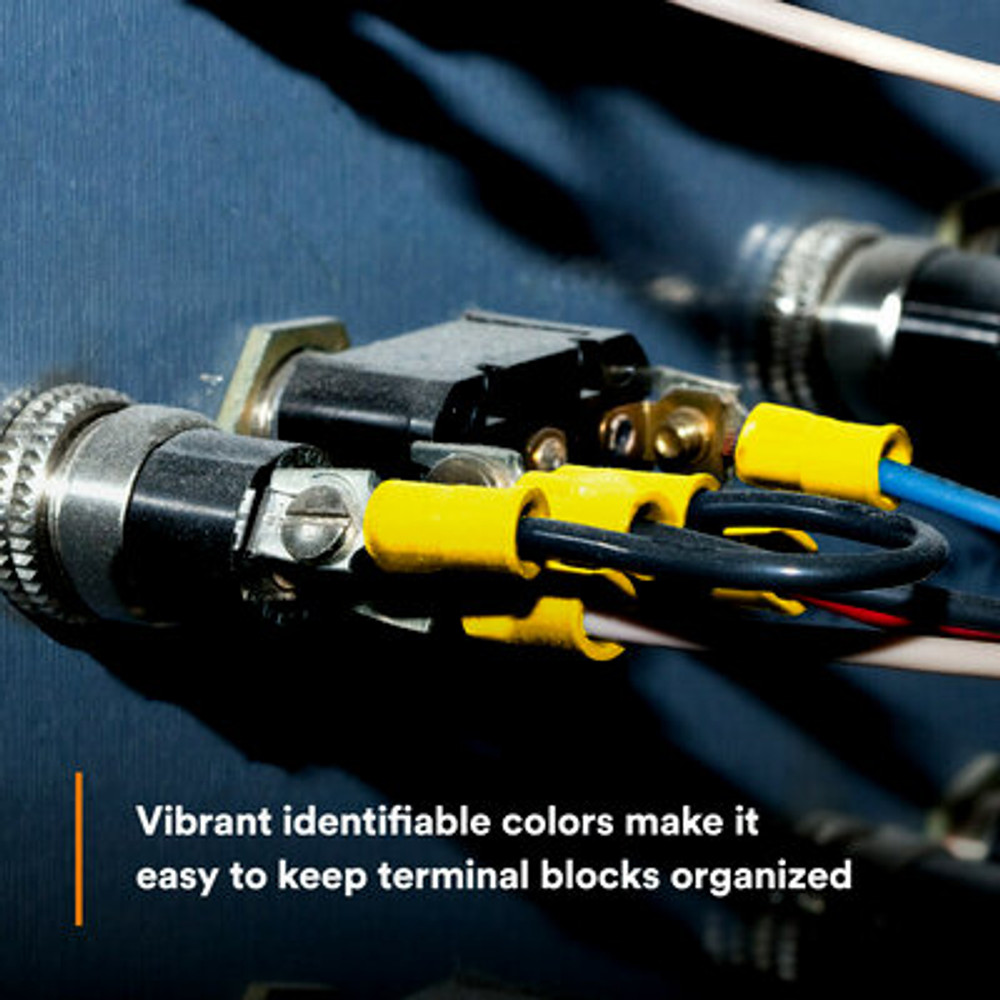

  • Suitable for use in a terminal block

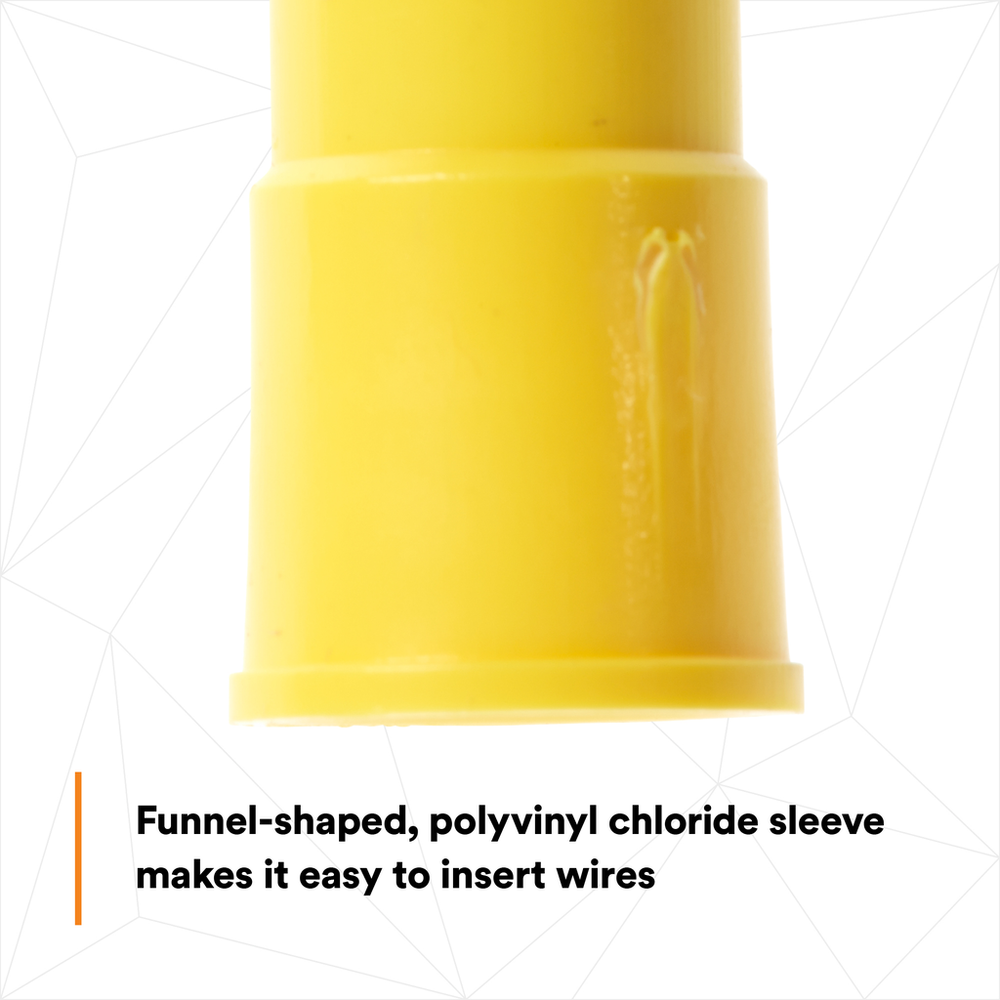

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.32
UL File NumberE23438
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial) UOMin
Barrel StyleBrazed
Overall Length (Metric)26.162
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial)1.03
Dimension E0.84 Inch
Maximum Insulation Outer Diameter (Metric) UOMmm
MaterialETP Copper
Maximum Insulation Outside Diameter0.145 in
Fork TypeBlock
Product ColorYellow
Units per Case500.0
Minimum Conductor Size (Metric)3.31 mm²
Insulation MaterialVinyl
Overall Length (Metric) UOMmm
Stud Size#10
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Imperial)0.25
Clearance (C)0.29 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Maximum Conductor Size (Metric)5.26 mm²
Terminal StyleBlock
Packaging50 per bottle
Barrel Inside Diameter0.135 Inch
Overall Width (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
