3M Products & Supplies

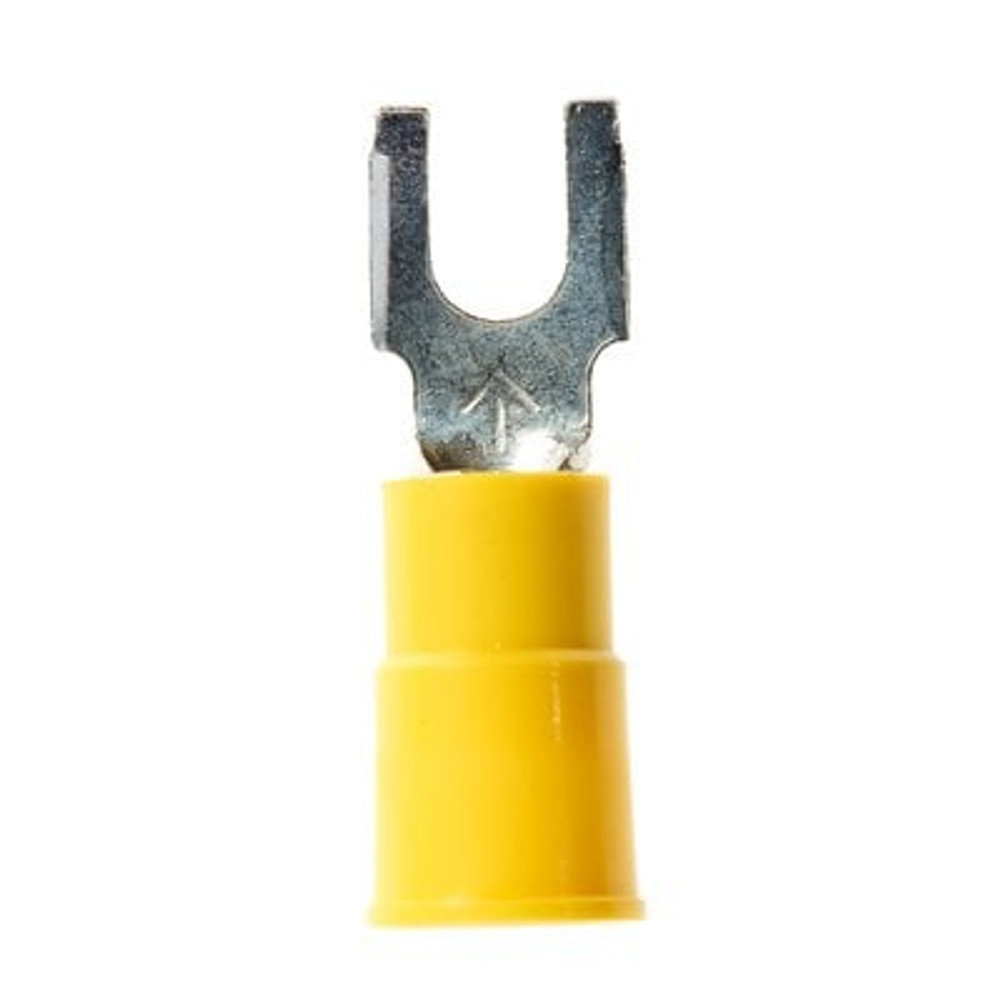

3M™ Scotchlok™ Block Fork Vinyl Insulated, 50/bottle, MVU10-8FBX, suitable for use in a terminal block, 500/Case - 7010304208

Sold As: 50-Pack
SKU: 7010304208
MPN: 7010304208
For an accurate lead time please contact us
UPC: 10051128590352
3M ID: 80611466816
5 Digit UPC: 59035
$23.34 ($0.47 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
UL File NumberE70512
Minimum Conductor Size (Metric)3.31 mm²
Overall Width (Imperial)0.32
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel StyleButted
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Dimension E0.84 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Imperial)10 AWG
Terminal StyleBlock
Units per Case500.0
Stud Diameter (Metric) UOMmm
Packaging50 per bottle
Stud Diameter (Imperial)0.164
Barrel Length (Imperial)0.25 Inch
Terminal TypeFork
Stud Diameter (Imperial) UOMin
Fork TypeBlock
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius)105.0
Barrel Inside Diameter0.135 Inch
Overall Length (Imperial)1.03
Insulation MaterialVinyl
Maximum Conductor Size (Metric)5.26 mm²
Clearance (C)0.29 Inch
Stud Diameter (Metric)4.166
Stud Size#8
