3M Products & Supplies

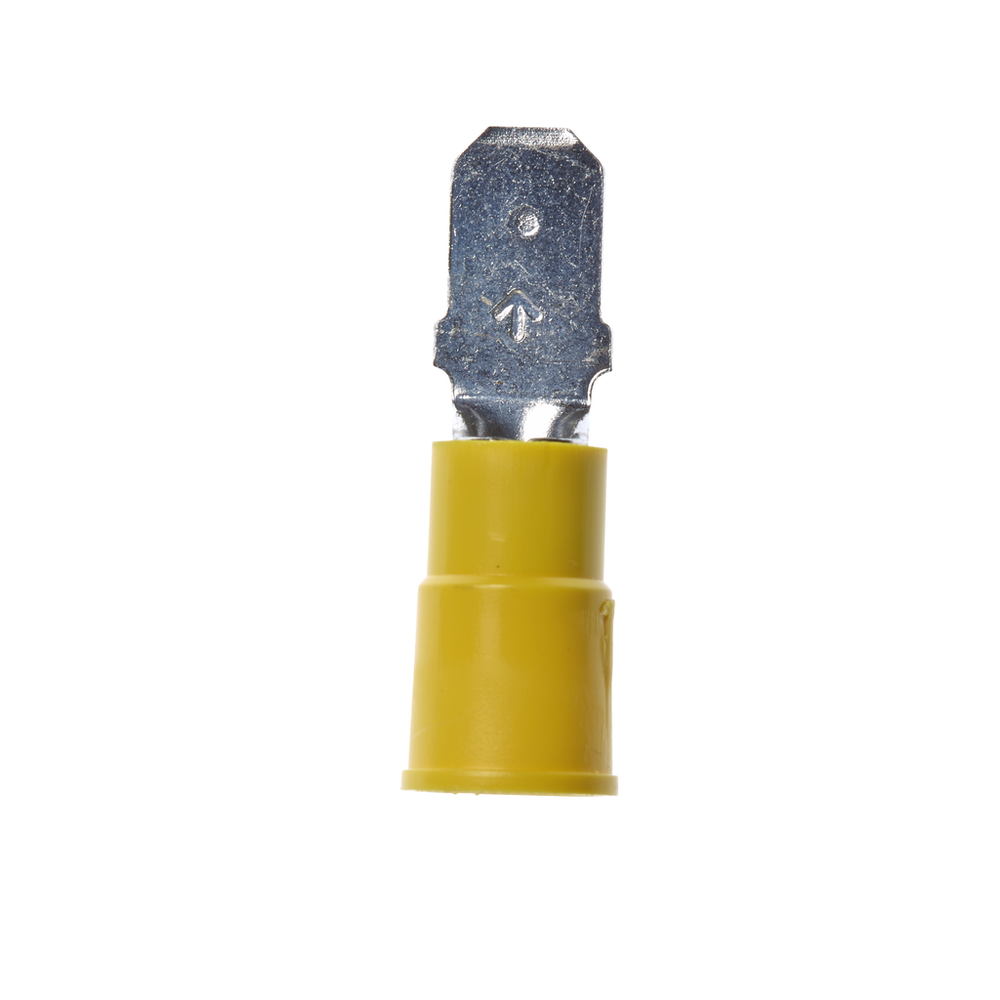

3M™ Scotchlok™ Male Disconnect Vinyl Insulated, 50/bottle, MVU10-250DMX, 500/Case - 7000133288

Sold As: 50-Pack
SKU: 7000133288
MPN: 7000133288
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586754
3M ID: 80611458201
5 Digit UPC: 58675
$61.06 ($1.22 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Features

  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Insulation ColorYellow
Units per Case500.0
Maximum Conductor Size (Metric)6 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Terminal StyleStandard
Conductor Sizes (Imperial)12 - 10 AWG
Pad Width0.25
Connection Width (Imperial) UOMin
Terminal TypeDisconnect
Fastener OrientationMale
Tab Width0.250
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Recommended Voltage Rating600.0
Male Tab Width (W')0.250 Inch
Packaging50 per bottle
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel StyleButted
Connection Width (Metric) UOMmm
Connection Width (Metric)6.35
Overall Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial) UOMin
Insulation MaterialVinyl
MaterialPlastic
Overall Length (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial)0.25
Voltage ApplicationLow Voltage
Minimum Conductor Size (Imperial)12 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Disconnect TypeMale
Overall Length (Metric)26.67
Maximum Operating Temperature (Celsius) UOMDegree
Solution forWireless Network: Infrastructure Accessories
UL File NumberE70512
Maximum Insulation Outer Diameter (Metric)3.7
Overall Length (Imperial)1.05
Maximum Conductor Size (Imperial)10 AWG
Diameter (D)0.39 Inch
Connection Width (Imperial)0.25
Overall Diameter (Imperial)0.39
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorYellow
Barrel Inside Diameter0.150 Inch
Maximum Recommended Voltage Rating UOMV
Minimum Conductor Size (Metric)4 mm²
