3M Products & Supplies

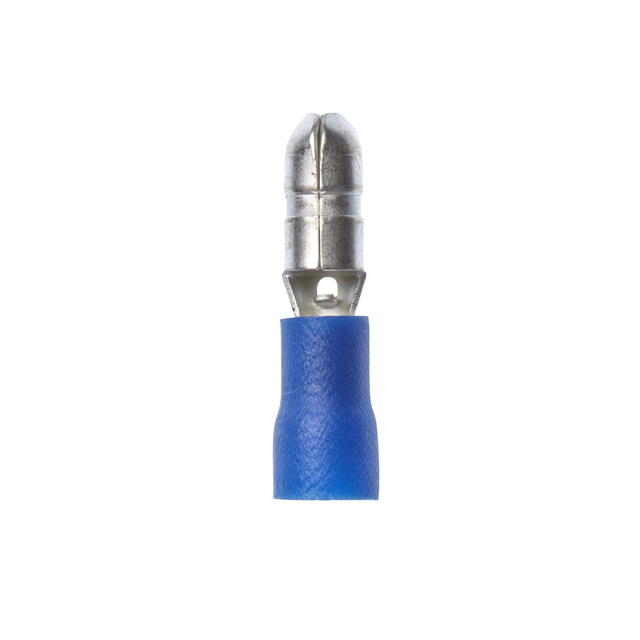

3M™ Scotchlok™ Male Disconnect Vinyl Insulated, 100/bottle, MVU14-250DMX, 500/Case - 7000133289

Sold As: 100-Pack
SKU: 7000133289
MPN: 7000133289
For an accurate lead time please contact us
UPC: 00051128586761
3M ID: 80611458219
5 Digit UPC: 58676
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Features

  • This male disconnect terminal offers excellent holding force
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Allows for quick and easy disconnect of wires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)221.0
Diameter (D)0.39 Inch
Pad Width0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Male Tab Width (W')0.250 Inch
Overall Length (Imperial) UOMin
Product ColorBlue
Solution forWireless Network: Infrastructure Accessories
Minimum Conductor Size (Metric)1.5 mm²
MaterialPlastic
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial)0.25
Maximum Recommended Voltage Rating600.0
Maximum Conductor Size (Metric)2.5 mm²
Disconnect TypeMale
Connection Width (Imperial) UOMin
Packaging100 per bottle
Maximum Insulation Outer Diameter (Metric)3.7
Connection Width (Metric) UOMmm
Maximum Insulation Outer Diameter (Metric) UOMmm
Insulation MaterialVinyl
Terminal TypeDisconnect
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Imperial) UOMin
Insulation ColorBlue
UL File NumberE70512
Voltage ApplicationLow Voltage
Overall Length (Metric) UOMmm
Fastener OrientationMale
Barrel StyleButted
Minimum Conductor Size (Imperial)16 AWG
Units per Case500.0
Overall Length (Metric)23.6
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Conductor Sizes (Imperial)16 - 14 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Diameter (Imperial)0.39
Overall Diameter (Imperial) UOMin
Tab Width0.187
Maximum Insulation Outer Diameter (Imperial)0.17
Connection Width (Metric)6.35
Maximum Conductor Size (Imperial)14 AWG
Barrel Inside Diameter0.085 Inch
Overall Length (Imperial)0.93
