3M Products & Supplies

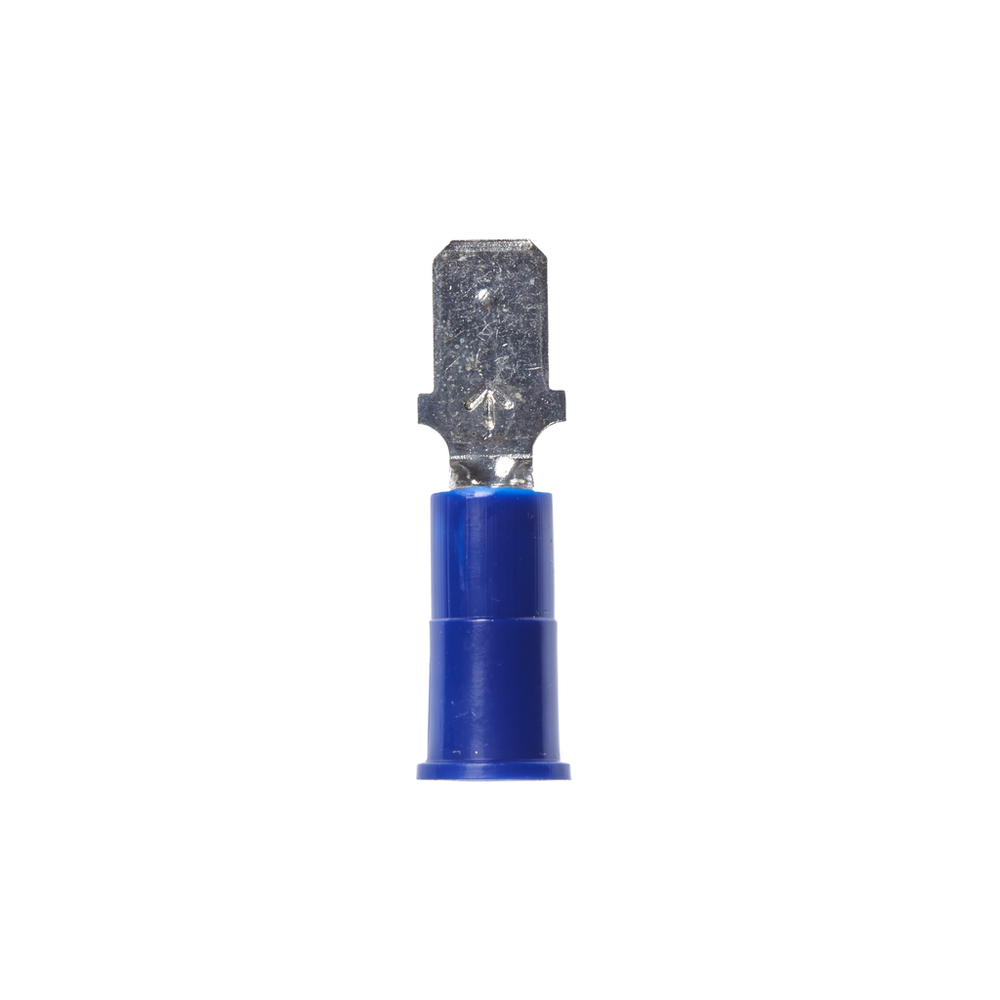

3M™ Scotchlok™ Male Disconnect Vinyl Insulated, 100/bottle, MVU14-187DMX, 500/Case - 7000133287

Sold As: 100-Pack
SKU: 7000133287
MPN: 7000133287
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586747
3M ID: 80611458193
5 Digit UPC: 58674
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Features

  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Diameter (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Disconnect TypeMale
Overall Length (Metric)21.59
Male Tab Width (W')0.187 Inch
Terminal TypeDisconnect
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.85
Maximum Recommended Voltage Rating600.0
UL File NumberE70512
Maximum Operating Temperature (Celsius) UOMDegree
Conductor Sizes (Imperial)16 - 14 AWG
Units per Case500.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Packaging100 per bottle
Maximum Insulation Outer Diameter (Metric)3.7
Tab Width0.250
Minimum Conductor Size (Imperial)16 AWG
Barrel StyleButted
Maximum Conductor Size (Metric)2.5 mm²
Overall Length (Metric) UOMmm
Connection Width (Metric)4.75
Maximum Recommended Voltage Rating UOMV
Pad Width0.187
Overall Diameter (Imperial)0.39
Maximum Insulation Outer Diameter (Imperial)0.145
Voltage ApplicationLow Voltage
Barrel Inside Diameter0.080 Inch
Insulation ColorBlue
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Celsius)105.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Metric)1.5 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Diameter (D)0.39 Inch
Product ColorBlue
MaterialPlastic
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal StyleStandard
Connection Width (Imperial) UOMin
Insulation MaterialVinyl
Fastener OrientationMale
Connection Width (Imperial)0.187
