3M Products & Supplies

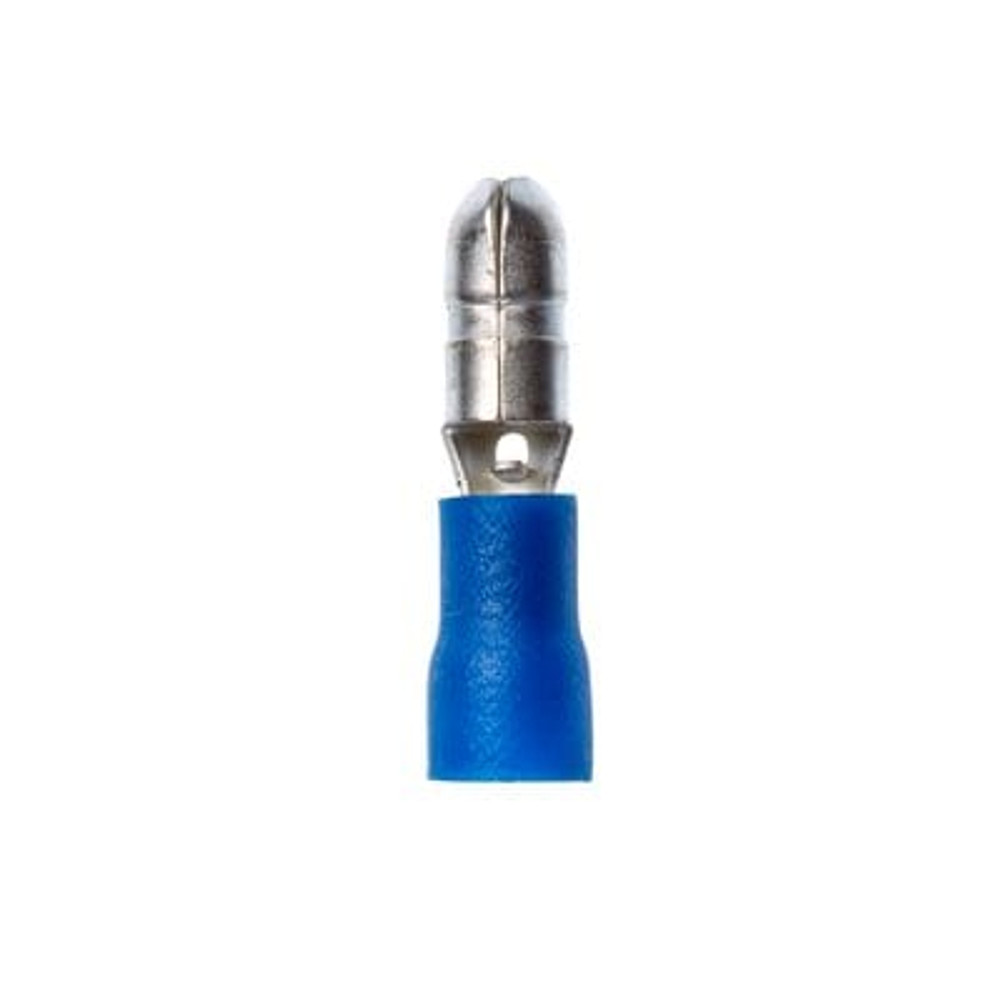

3M™ Scotchlok™ Male Disconnect Vinyl Insulated, 100/bottle, MVU14-180DMX-A, 500/Case - 7100165276

Sold As: 500-Pack
SKU: 7100165276
MPN: 7100165276
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128588666
3M ID: 80611465123
5 Digit UPC: 58866
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Butted Seam Bullet-Style Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The snap plug has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Accommodates wire sizes 22 to 18 AWG
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Mates with 0.156-in wide female tab
  • Allows for quick and easy disconnect of wires
  • This male disconnect terminal offers excellent holding force

Downloads

Specifications

Country of OriginTaiwan
Fastener OrientationMale
Terminal TypeStandard
Maximum Insulation Outer Diameter (Imperial)0.17
Disconnect TypeMale
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection Width (Imperial) UOMin
Mating Snap Diameter (S)0.180 Inch
Packaging100 per bottle
Solution forWireless Network: Infrastructure Accessories
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.18
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Insulation MaterialVinyl
Units per Case500.0
Connection Width (Metric)4.572
UL File NumberE70512
Overall Length (Imperial)0.83
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel StyleButted
Tab Width0.250
Pad Width0.18
Terminal StyleBullet Snap Plug
Overall Length (Metric)21.0
