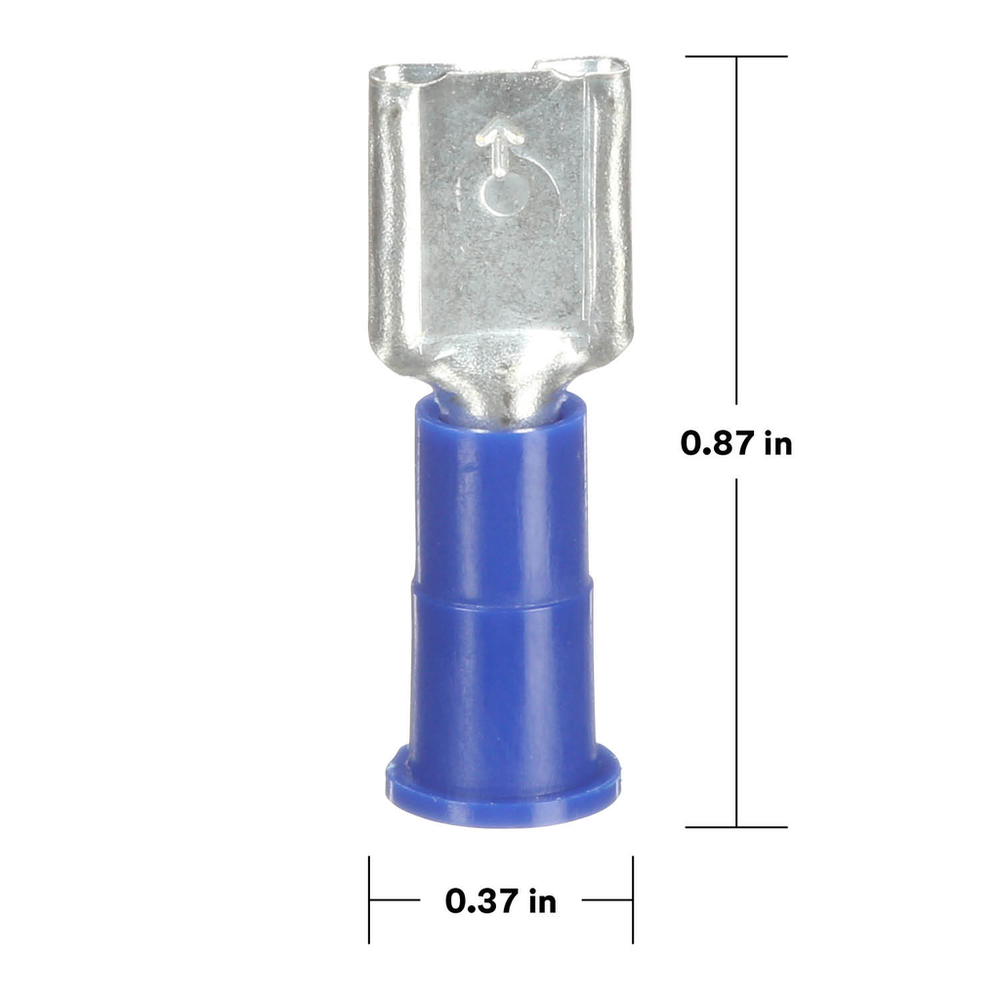

3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVU14-250DFX, 500/Case - 7000133285

Sold As: 100-Pack
SKU: 7000133285
MPN: 7000133285
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586716
3M ID: 80611458169
5 Digit UPC: 58671
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

Country of OriginUnited States
Mates with Female Width0.250 Inch
Conductor Sizes (Imperial)16 - 14 AWG
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Pad Width0.25
Minimum Conductor Size (Imperial)14 AWG
Maximum Insulation Outer Diameter (Metric)3.7
Connection TypeWire
Grease Filling Against CorrosionNo
Maximum Recommended Voltage Rating UOMV
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)2.5 mm²
Maximum Insulation Outer Diameter (Imperial)0.145
Connection Width (Imperial)0.25
Fastener OrientationFemale
Solution forWireless Network: Infrastructure Accessories
Connector StyleInsulation Displacement
Overall Width (Imperial)0.37
Insulation ColorBlue
Maximum Conductor Size (Imperial)16 AWG
Flame RetardantNo
Tab Width0.250
Connection Width (Metric)6.35
Barrel Inside Diameter0.080 Inch
Maximum Recommended Voltage Rating600.0
Terminal TypeDisconnect
Mates with Male Tab Width (W')0.25 Inch
Overall Diameter (Imperial) UOMin
Product ColorBlue
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)221.0
Disconnect TypeFemale
MaterialETP Copper
Connection Width (Imperial) UOMin
Barrel StyleButted
Interrupt Free ShiftingNo
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric) UOMmm
Terminal StyleStandard
UL File NumberE70512
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connector / Connector ToolConnector
Connection Width (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Maximum Conductor Size (Metric)1.5 mm²
Overall Diameter (Imperial)0.23
Overall Length (Imperial)0.87
Diameter (D)0.23 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Packaging100 per bottle
Overall Length (Metric)22.09
Units per Case500.0
