3M Products & Supplies

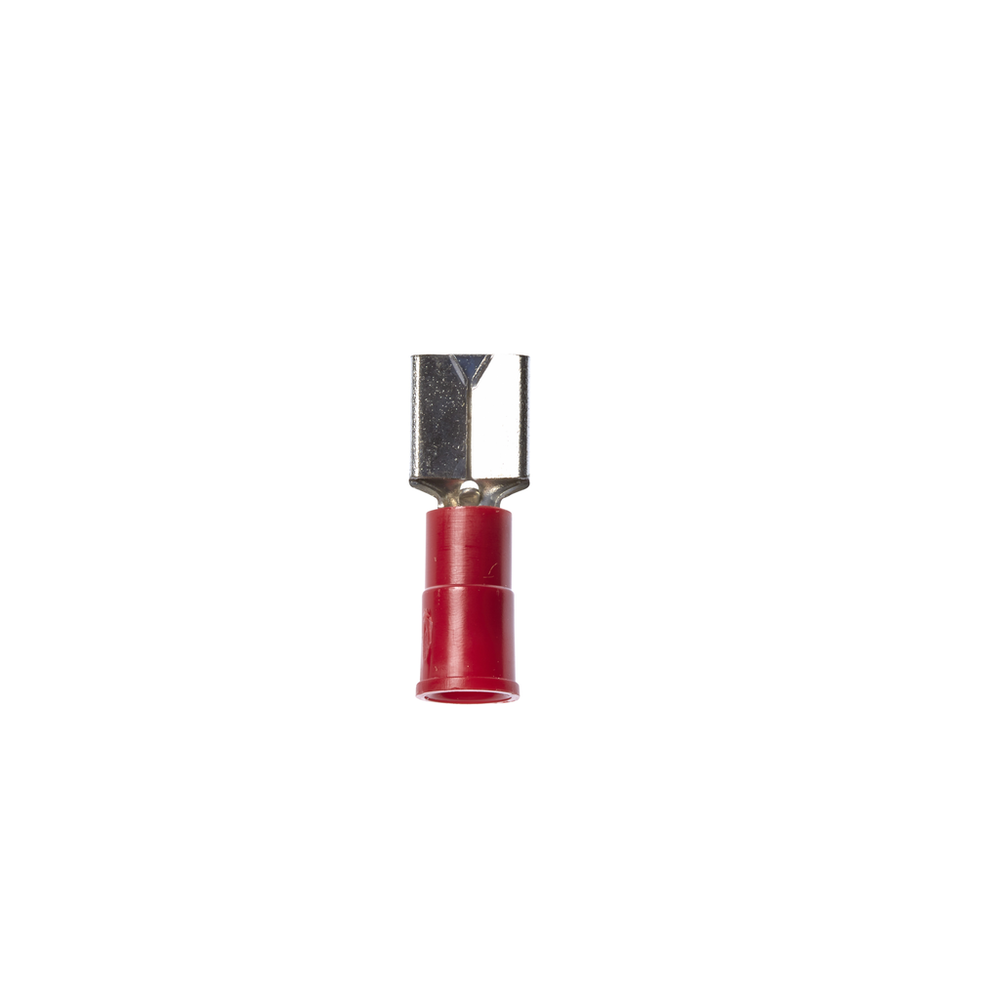

3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVI18-250DFX, 500/Case - 7100165292

Sold As: 500-Pack
SKU: 7100165292
MPN: 7100165292
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128589356
3M ID: 80611465818
5 Digit UPC: 58935
$486.95 ($0.97 / Count)
Hurry up! Current stock:

Product Description

The disconnects are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.

Features

  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Mates with 0.25-in wide male tab
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Imperial)0.25
Packaging100 per bottle
Mates with Female Width0.250 Inch
Minimum Conductor Size (Metric).34 mm²
Overall Length (Imperial) UOMin
Units per Case500.0
Overall Length (Imperial)0.83
Maximum Conductor Size (Metric)1 mm²
Mates with Male Tab Width (W')0.250 Inch
Terminal StyleStandard
UL File NumberE70512
Insulation MaterialVinyl
Connection Width (Metric)6.35
Connection Width (Metric) UOMmm
Disconnect TypeFemale
Pad Width0.25
Terminal TypeDisconnect
Maximum Insulation Outer Diameter (Imperial) UOMin
Fastener OrientationFemale
Minimum Conductor Size (Imperial)22 AWG
Barrel Inside Diameter0.076 Inch
Connection Width (Imperial) UOMin
Fork TypeStandard Fork
Maximum Conductor Size (Imperial)18 AWG
Barrel StyleInterlocking Barrel
Solution forWireless Network: Infrastructure Accessories
Maximum Insulation Outer Diameter (Imperial)0.145
