3M Products & Supplies

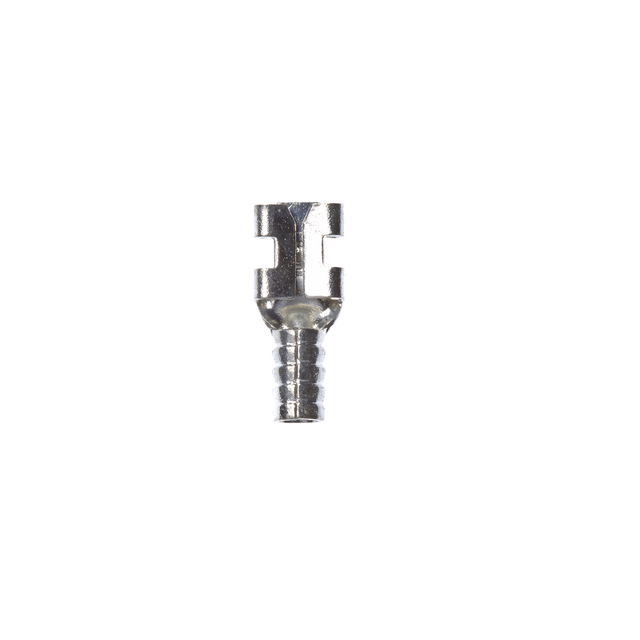

3M™ Scotchlok™ Female Disconnect Non-Insulated, 100/bottle, MU14-250DFX, 500/Case - 7010297496

Sold As: 100-Pack
SKU: 7010297496
MPN: 7010297496
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587089
3M ID: 80611458532
5 Digit UPC: 58708
$67.42 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial)0.25
Packaging100 per bottle
Insulation MaterialNon-insulated
Terminal StyleStandard
Overall Length (Imperial) UOMin
Connection Width (Metric)6.35
Units per Case500.0
Solution forWireless Network: Infrastructure Accessories
Minimum Conductor Size (Metric)1.5 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Conductor Sizes (Imperial)16 - 14 AWG
Terminal TypeDisconnect
Barrel StyleButted
Fastener OrientationFemale
Pad Width0.25
Maximum Conductor Size (Metric)2.5 mm²
Mates with Female Width0.250 Inch
Connection Width (Metric) UOMmm
Tab Width0.250
Disconnect TypeFemale
Overall Length (Imperial)0.66
Minimum Conductor Size (Imperial)16 AWG
Barrel Inside Diameter0.080 Inch
UL File NumberE70512
Mates with Male Tab Width (W')0.250 Inch
Connection Width (Imperial) UOMin
