3M Products & Supplies

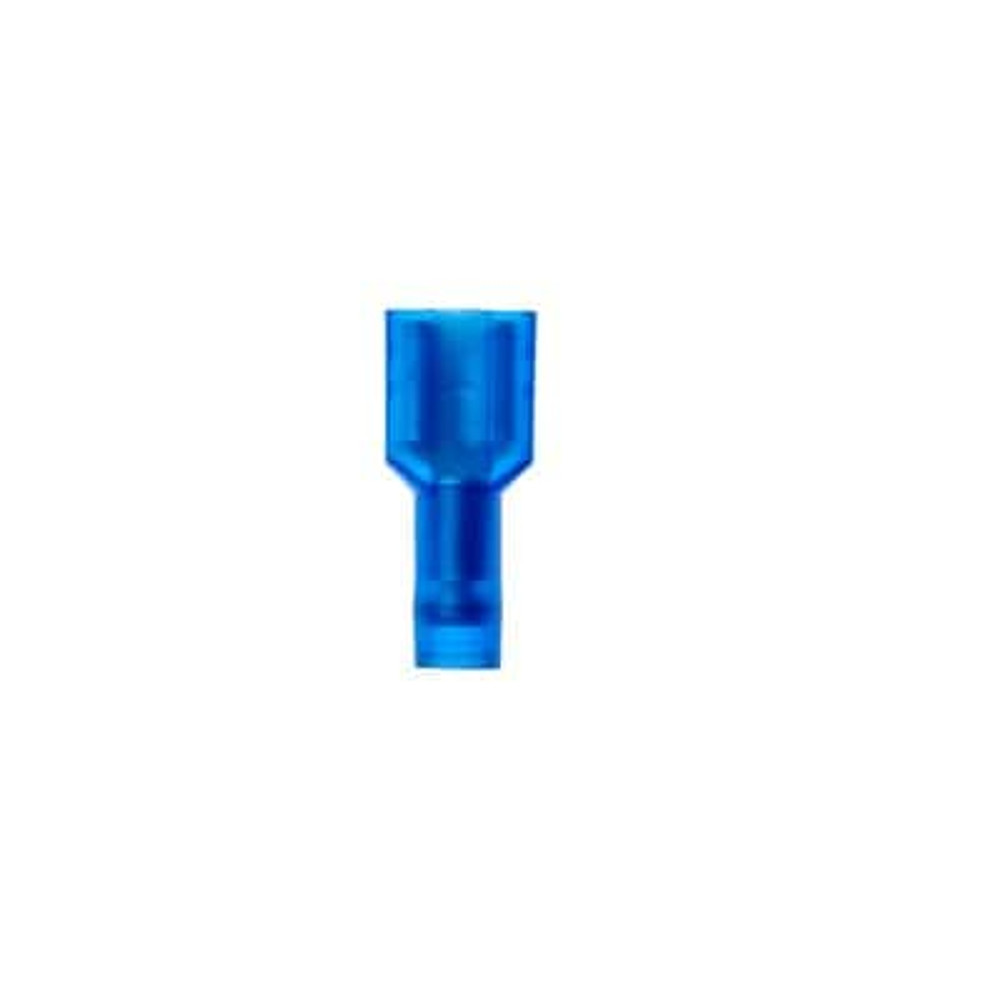

3M™ Scotchlok™ Female Disconnect Nylon Insulated, 100/bottle, MNGI14-250DFX, 500/Case - 7100165288

Sold As: 500-Pack
SKU: 7100165288
MPN: 7100165288
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589274
3M ID: 80611465735
5 Digit UPC: 58927
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ High-Temperature Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • For use in ovens, motors, light fixtures and other applications
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)

Downloads

Specifications

Country of OriginUnited States
Disconnect TypeFemale
Terminal TypeDisconnect
Barrel StyleInterlocking Barrel
Pad Width0.25
Maximum Conductor Size (Imperial)14 AWG
Fastener OrientationFemale
Maximum Conductor Size (Metric)2.5 mm²
Connection Width (Imperial) UOMin
Units per Case500.0
Barrel Inside Diameter0.076 Inch
Mates with Female Width0.250 Inch
Overall Length (Imperial)0.83
Insulation MaterialNylon with Insulation Grip
Tab Width0.250
Minimum Conductor Size (Imperial)16 AWG
Mates with Male Tab Width (W')0.250 Inch
Minimum Conductor Size (Metric)1.5 mm²
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.145
UL File NumberE70512
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection Width (Metric)6.35
Connection Width (Metric) UOMmm
Terminal StyleStandard
Packaging100 per bottle
Connection Width (Imperial)0.25
