3M Products & Supplies

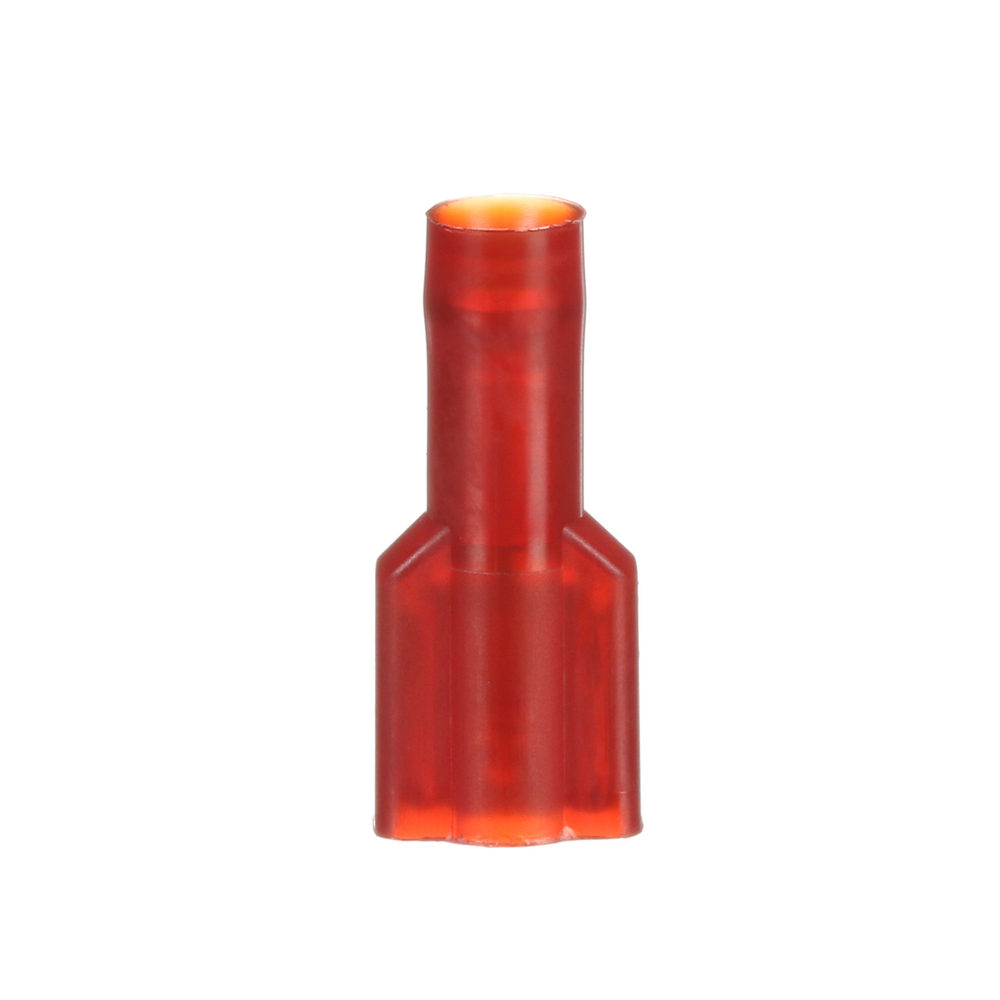

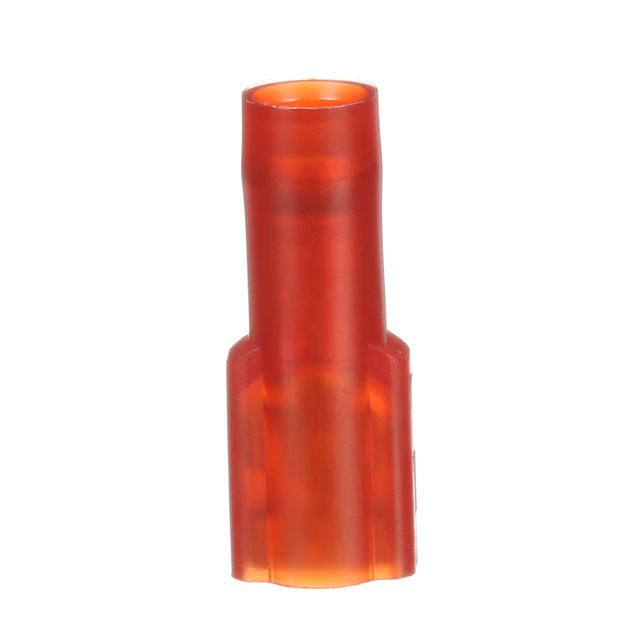

3M™ Scotchlok™ Female Disconnect Nylon Insulated, 100/bottle, MNG18-250DFX, 500/Case - 7000133355

Sold As: 500-Pack
SKU: 7000133355
MPN: 7000133355
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128587898
3M ID: 80611464357
5 Digit UPC: 58789
$561.87 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Metric) UOMmm
Connector / Connector ToolConnector
Interrupt Free ShiftingNo
Terminal StyleStandard
Minimum Conductor Size (Metric).34 mm²
Maximum Insulation Outer Diameter (Metric)3.7
Conductor Sizes (Imperial)22 - 18 AWG
Barrel Length (Imperial)0.25 Inch
Maximum Recommended Voltage Rating600.0
Overall Length (Metric) UOMmm
Connection TypeWire
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal TypeDisconnect
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Width (Imperial)0.37
Mates with Female Width0.250 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Connector StyleInsulation Displacement
Overall Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Tab Width0.250
Product ColorRed
Overall Width (Imperial) UOMin
MaterialETP Copper
Pad Width0.25
Overall Length (Metric)21.84
Barrel StyleButted
Insulation MaterialNylon with Insulation Grip
Barrel Inside Diameter0.080 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.25
Maximum Conductor Size (Metric)1 mm²
Maximum Recommended Voltage Rating UOMV
Mates with Male Tab Width (W')0.25 Inch
Connection Width (Metric)6.35
Diameter (D)0.23 Inch
Grease Filling Against CorrosionNo
Maximum Operating Temperature (Celsius)105.0
Packaging100 per bottle
Connection Width (Imperial) UOMin
Overall Diameter (Imperial)0.23
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE70512
Overall Length (Imperial)0.86
Maximum Insulation Outer Diameter (Imperial)0.145
Insulation ColorRed
Flame RetardantNo
Units per Case500.0
Connection Width (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Minimum Conductor Size (Imperial)22 AWG
Fastener OrientationFemale
Disconnect TypeFemale
