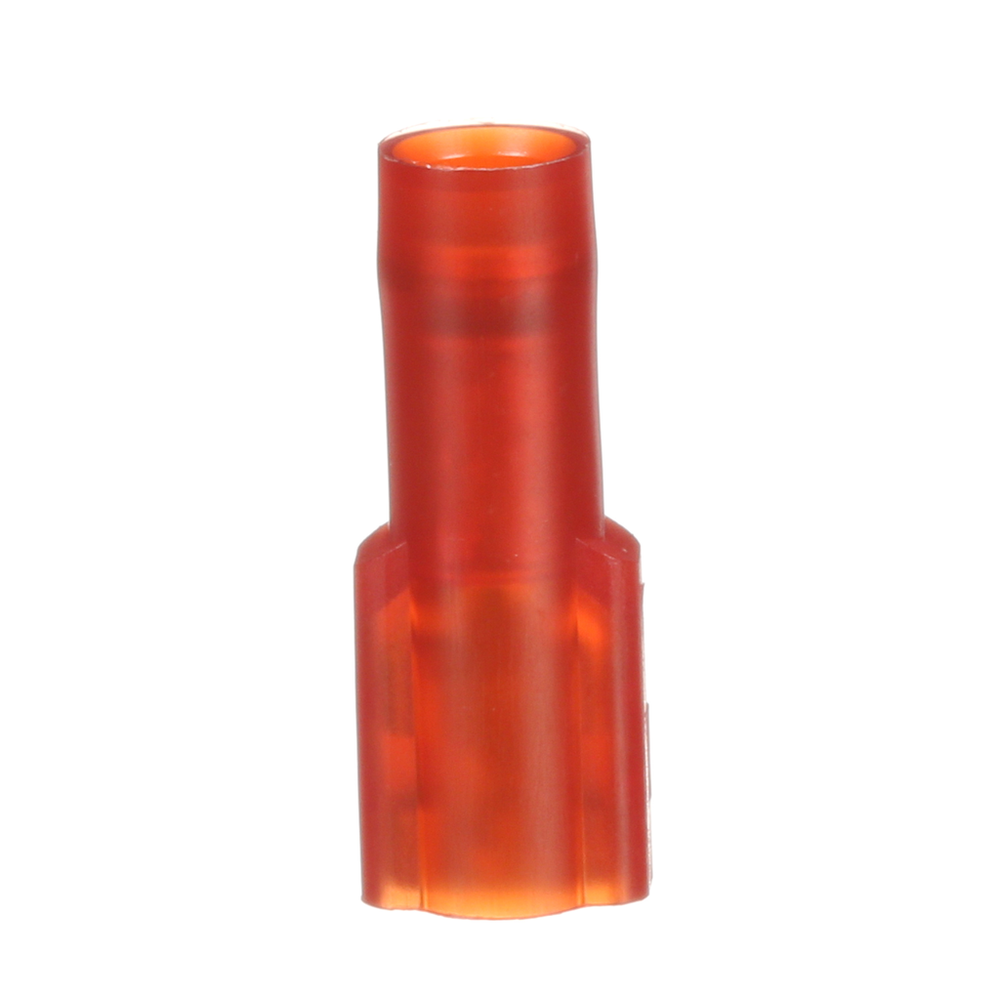

3M™ Scotchlok™ Female Disconnect Nylon Insulated, 100/bottle, MNG18-187DFIX, 500/Case - 7000133364

Sold As: 500-Pack
SKU: 7000133364
MPN: 7000133364
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128588086
3M ID: 80611464548
5 Digit UPC: 58808
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Features

  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric)20.57
Bullet Diameter0.180
UL File NumberE70512
Terminal StyleFully Insulated
Maximum Insulation Outer Diameter (Imperial) UOMin
Conductor Sizes (Imperial)22 - 18 AWG
Fastener OrientationFemale
Mates with Male Tab Width (W')0.187 Inch
Diameter (D)0.23 Inch
Overall Diameter (Imperial)0.23
Connection Width (Imperial)0.187
Connection TypeWire
Maximum Recommended Voltage Rating600.0
Disconnect TypeFemale
Overall Length (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Maximum Conductor Size (Imperial)18 AWG
Packaging100 per bottle
Units per Case500.0
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Connector / Connector ToolConnector
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Fahrenheit)221.0
Pad Width0.187
Product ColorRed
Overall Length (Imperial)0.81
Insulation MaterialNylon with Insulation Grip
Grease Filling Against CorrosionNo
Interrupt Free ShiftingNo
Mates with Female Width0.187 Inch
Terminal TypeDisconnect
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial) UOMin
MaterialETP Copper
Barrel Inside Diameter0.085 Inch
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Metric)1 mm²
Male Tab Width (W')0.187 Inch
Connection Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric) UOMmm
Minimum Conductor Size (Imperial)22 AWG
Flame RetardantNo
Overall Diameter (Imperial) UOMin
Minimum Conductor Size (Metric).34 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial)0.3
Maximum Insulation Outer Diameter (Imperial)0.145
Barrel StyleButted
Connection Width (Metric)4.75
Insulation ColorRed
Connection Width (Metric) UOMmm
Connector StyleInsulation Displacement
Barrel Length (Imperial)0.25 Inch
