3M Products & Supplies

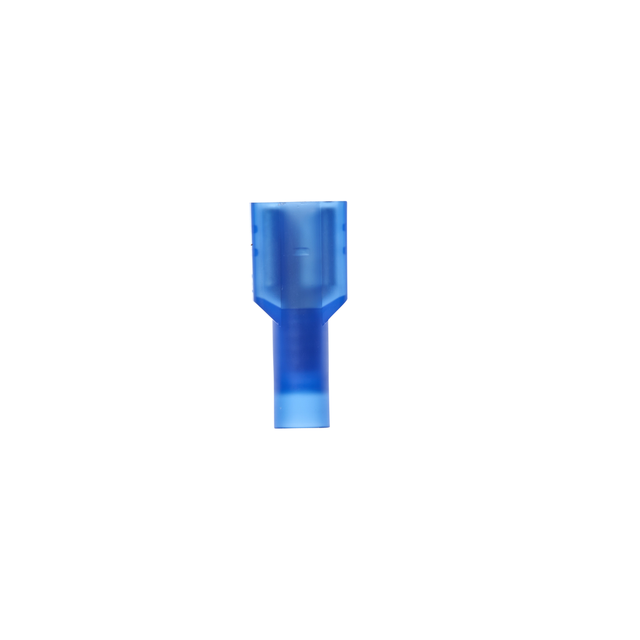

3M™ Scotchlok™ Female Disconnect Nylon Insulated, 100/bottle, MNU14-187DFIX, 500/Case - 7000133354

Sold As: 100-Pack
SKU: 7000133354
MPN: 7000133354
For an accurate lead time please contact us
UPC: 00051128587874
3M ID: 80611464332
5 Digit UPC: 58787
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 16-14 AWG and has case quantities of 500 per case.

Features

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Allows for quick and easy disconnect of wires
  • Nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating

Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.187
Maximum Recommended Voltage Rating600.0
Male Tab Width (W')0.187 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Imperial)14 AWG
Grease Filling Against CorrosionNo
Interrupt Free ShiftingNo
Barrel StyleButted
Minimum Conductor Size (Metric)1.5 mm²
Fastener OrientationFemale
Connector / Connector ToolConnector
UL File NumberE70512
Insulation MaterialNylon
Maximum Recommended Voltage Rating UOMV
Terminal StyleFully Insulated
Maximum Conductor Size (Metric)2.5 mm²
Barrel Length (Imperial)0.25 Inch
Terminal TypeDisconnect
Maximum Insulation Outside Diameter0.145 in
Connection TypeWire
Maximum Insulation Outer Diameter (Imperial)0.145
Packaging100 per bottle
Minimum Conductor Size (Imperial)16 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Product ColorBlue
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Celsius)105.0
Overall Width (Metric) UOMmm
Diameter (D)0.23 Inch
Overall Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric) UOMmm
Barrel Inside Diameter0.085 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Flame RetardantNo
Mates with Female Width0.187 Inch
Conductor Sizes (Imperial)16 - 14 AWG
Overall Length (Metric) UOMmm
Overall Width (Metric)9.4
Connector StyleInsulation Displacement
Units per Case500.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Diameter (Imperial)0.23
Disconnect TypeFemale
Overall Length (Metric)20.57
Pad Width0.187
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection Width (Metric)4.75
Tab Width0.187
Overall Width (Imperial)0.3
Connection Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Insulation ColorBlue
Mates with Male Tab Width (W')0.187 Inch
Overall Length (Imperial)0.81
MaterialETP Copper
