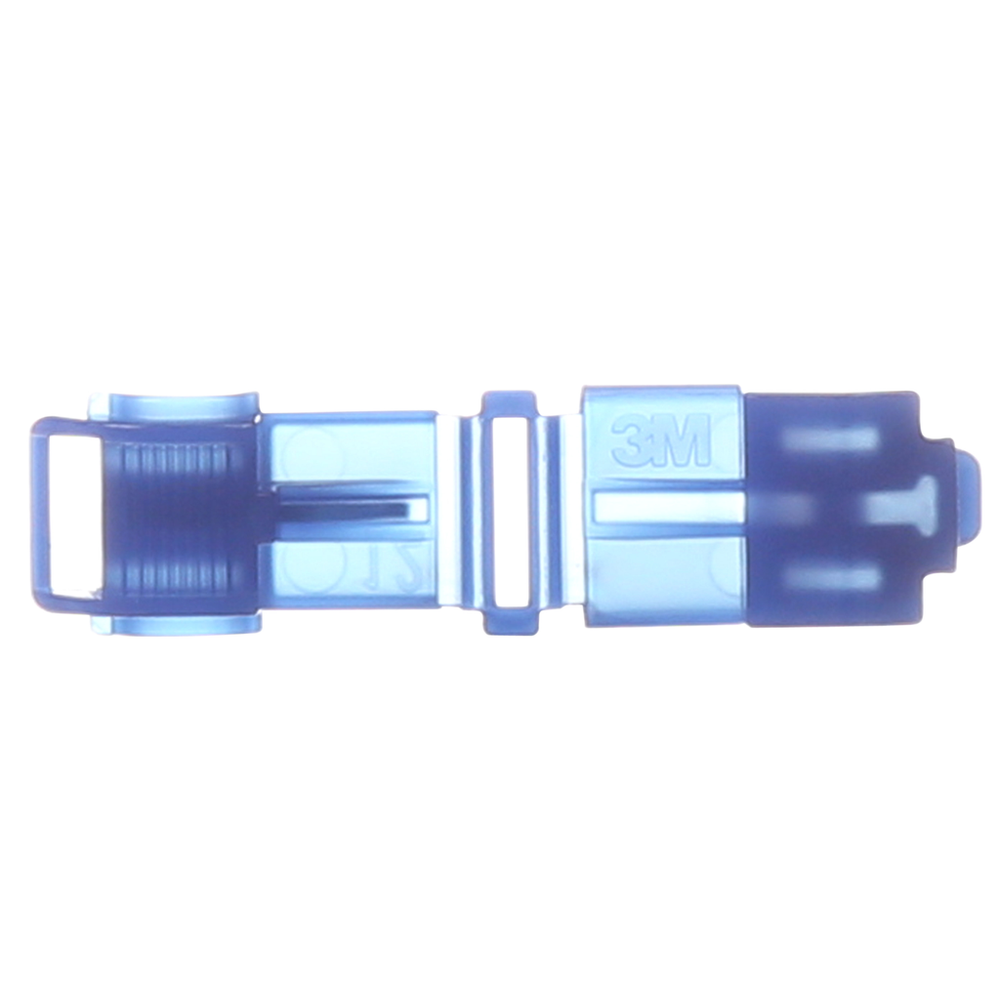

3M™ Scotchlok™ Female Disconnect Nylon Insulated, 100/bottle, MNG14-187DFIX, 500/Case - 7000133312

Sold As: 500-Pack
SKU: 7000133312
MPN: 7000133312
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128587249
3M ID: 80611458698
5 Digit UPC: 58724
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Features

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating600.0
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
Barrel Inside Diameter0.085 Inch
Tab Width0.250
Overall Diameter (Imperial) UOMin
Flame RetardantNo
Maximum Recommended Voltage Rating UOMV
Units per Case500.0
Maximum Operating Temperature (Fahrenheit)221.0
Disconnect TypeFemale
UL File NumberE70512
Connection Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection TypeWire
Connection Width (Metric) UOMmm
Product ColorBlue
Terminal StyleFully Insulated
Diameter (D)0.23 Inch
Minimum Conductor Size (Metric)1.5 mm²
Terminal TypeDisconnect
MaterialETP Copper
Grease Filling Against CorrosionNo
Insulation ColorBlue
Maximum Insulation Outside Diameter0.145 in
Maximum Operating Temperature (Celsius)105.0
Mates with Male Tab Width (W')0.187 Inch
Connection Width (Imperial)0.187
Maximum Insulation Outer Diameter (Metric)3.7
Overall Length (Metric) UOMmm
Overall Length (Metric)20.57
Overall Length (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Packaging100 per bottle
Overall Diameter (Imperial)0.23
Interrupt Free ShiftingNo
Connection Width (Metric)4.75
Overall Length (Imperial)0.81
Maximum Conductor Size (Imperial)14 AWG
Barrel StyleButted
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.3
Connector StyleInsulation Displacement
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Conductor Sizes (Imperial)16 - 14 AWG
Insulation MaterialNylon with Insulation Grip
Maximum Conductor Size (Metric)2.5 mm²
Connector / Connector ToolConnector
Mates with Female Width0.187 Inch
Pad Width0.187
Fastener OrientationFemale
Maximum Insulation Outer Diameter (Metric) UOMmm
