3M Products & Supplies

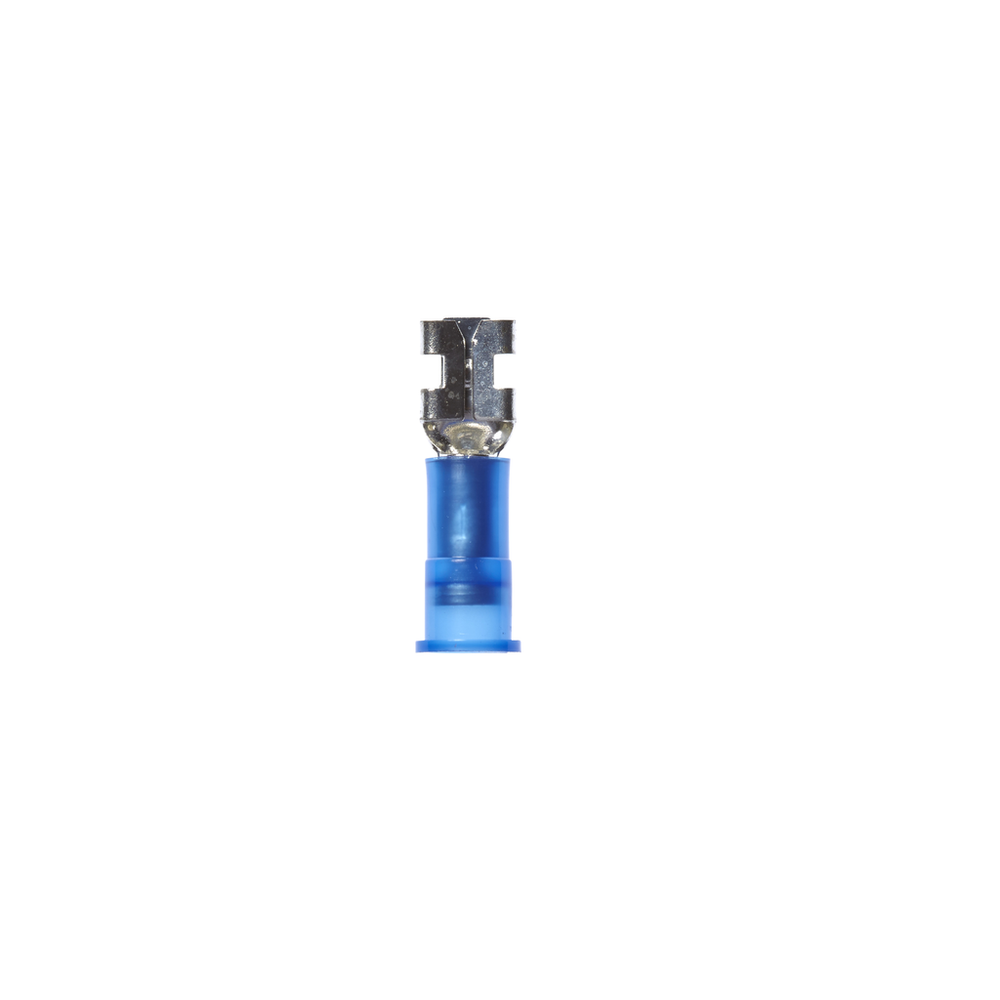

3M™ Scotchlok™ Female Disconnect Nylon Insulated, 100/bottle, MNG14-187DFX, 500/Case - 7100165234

Sold As: 500-Pack
SKU: 7100165234
MPN: 7100165234
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128586723
3M ID: 80611458177
5 Digit UPC: 58672
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric)2.5 mm²
Barrel StyleButted
Connection Width (Imperial) UOMin
Pad Width0.187
Minimum Conductor Size (Metric)1.5 mm²
Mates with Male Tab Width (W')0.187 Inch
Disconnect TypeFemale
Overall Length (Imperial) UOMin
Terminal StyleStandard
Fastener OrientationFemale
Tab Width0.250
Connection Width (Metric)4.75
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel Inside Diameter0.085 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialNylon with Insulation Grip
Mates with Female Width0.187 Inch
Units per Case500.0
Maximum Insulation Outer Diameter (Imperial)0.145
Terminal TypeDisconnect
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Imperial)14 AWG
Packaging100 per bottle
Connection Width (Imperial)0.187
Overall Length (Imperial)0.77
UL File NumberE70512
