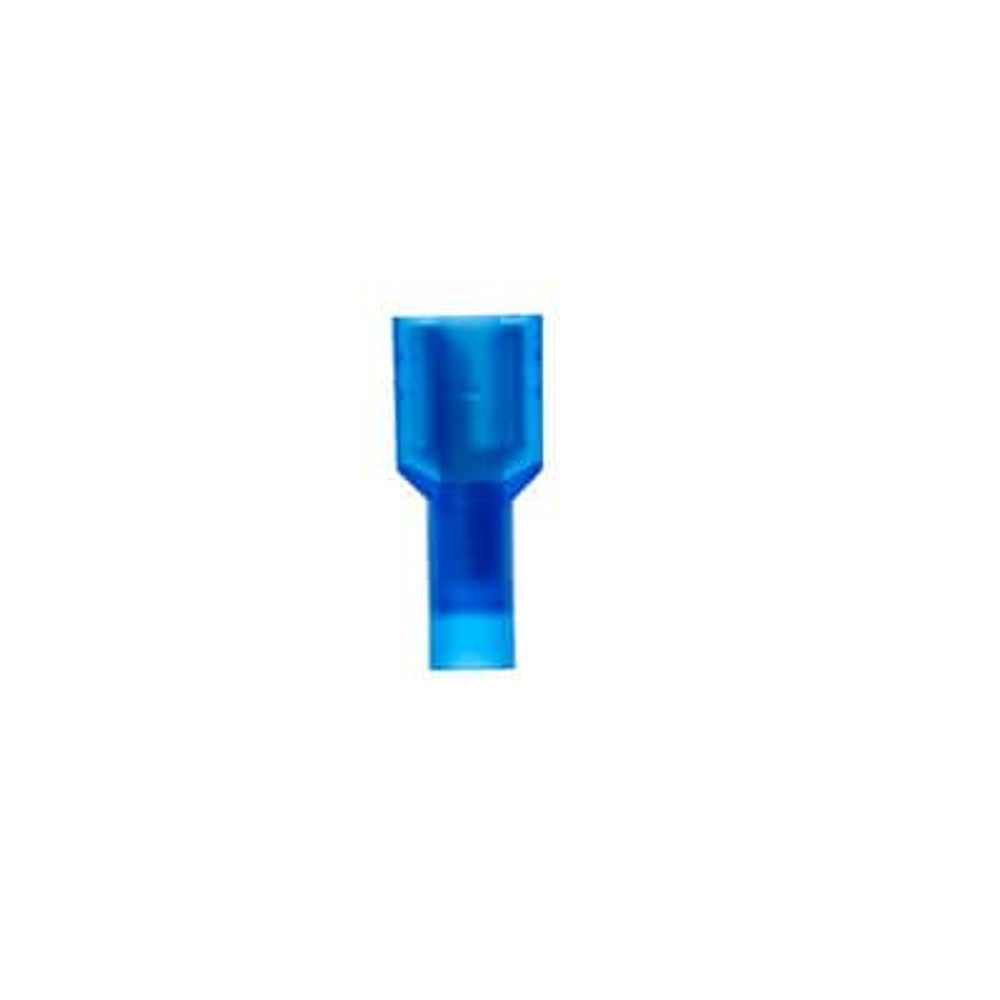

3M™ Scotchlok™ Female Disconnect Nylon Insulated, 100/bottle, MNU14-250DFIX, 500/Case - 7000133350

Sold As: 100-Pack
SKU: 7000133350
MPN: 7000133350
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587775
3M ID: 80611464233
5 Digit UPC: 58777
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 16-14 AWG and has case quantities of 500 per case.

Features

  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

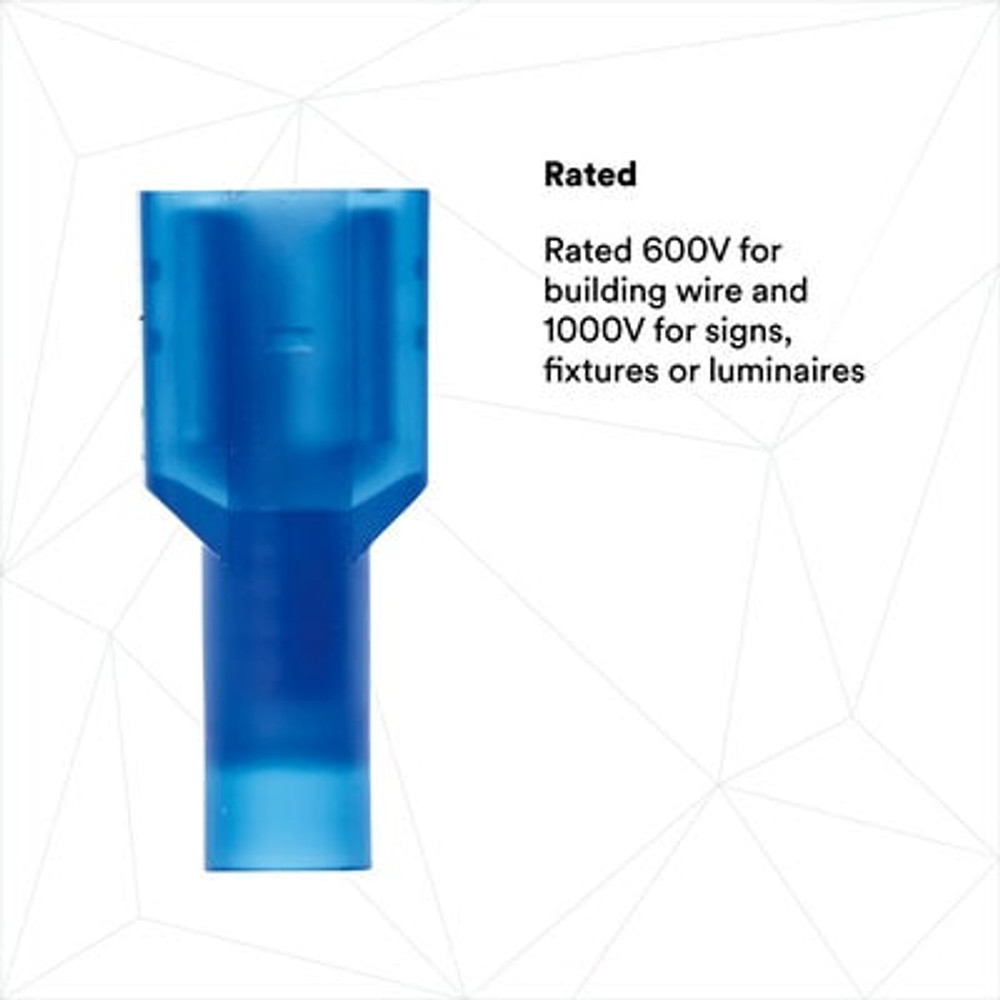

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force

Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating UOMV
UL File NumberE70512
Minimum Conductor Size (Metric)1.5 mm²
Maximum Recommended Voltage Rating600.0
Units per Case500.0
Maximum Insulation Outside Diameter0.145 in
Overall Diameter (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.37
Conductor Sizes (Imperial)16 - 14 AWG
Connector StyleInsulation Displacement
Insulation MaterialNylon
Terminal StyleFully Insulated
Maximum Insulation Outer Diameter (Imperial) UOMin
Diameter (D)0.23 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Metric)9.4
Barrel Inside Diameter0.080 Inch
MaterialETP Copper
Fastener OrientationFemale
Connection Width (Metric)6.35
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Connection Width (Imperial) UOMin
Overall Length (Imperial)0.87
Interrupt Free ShiftingNo
Barrel StyleButted
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)14 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
Insulation ColorBlue
Mates with Female Width0.250 Inch
Disconnect TypeFemale
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial) UOMin
Mates with Male Tab Width (W')0.25 Inch
Product ColorBlue
Overall Length (Metric)22.09
Connector / Connector ToolConnector
Flame RetardantNo
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Conductor Size (Metric)2.5 mm²
Overall Width (Metric) UOMmm
Connection Width (Metric) UOMmm
Tab Width0.187
Maximum Operating Temperature (Fahrenheit)221.0
Connection TypeWire
Connection Width (Imperial)0.25
Terminal TypeDisconnect
Maximum Operating Temperature (Celsius) UOMDegree
Overall Diameter (Imperial)0.23
Pad Width0.25
Packaging100 per bottle
Grease Filling Against CorrosionNo
