3M Products & Supplies

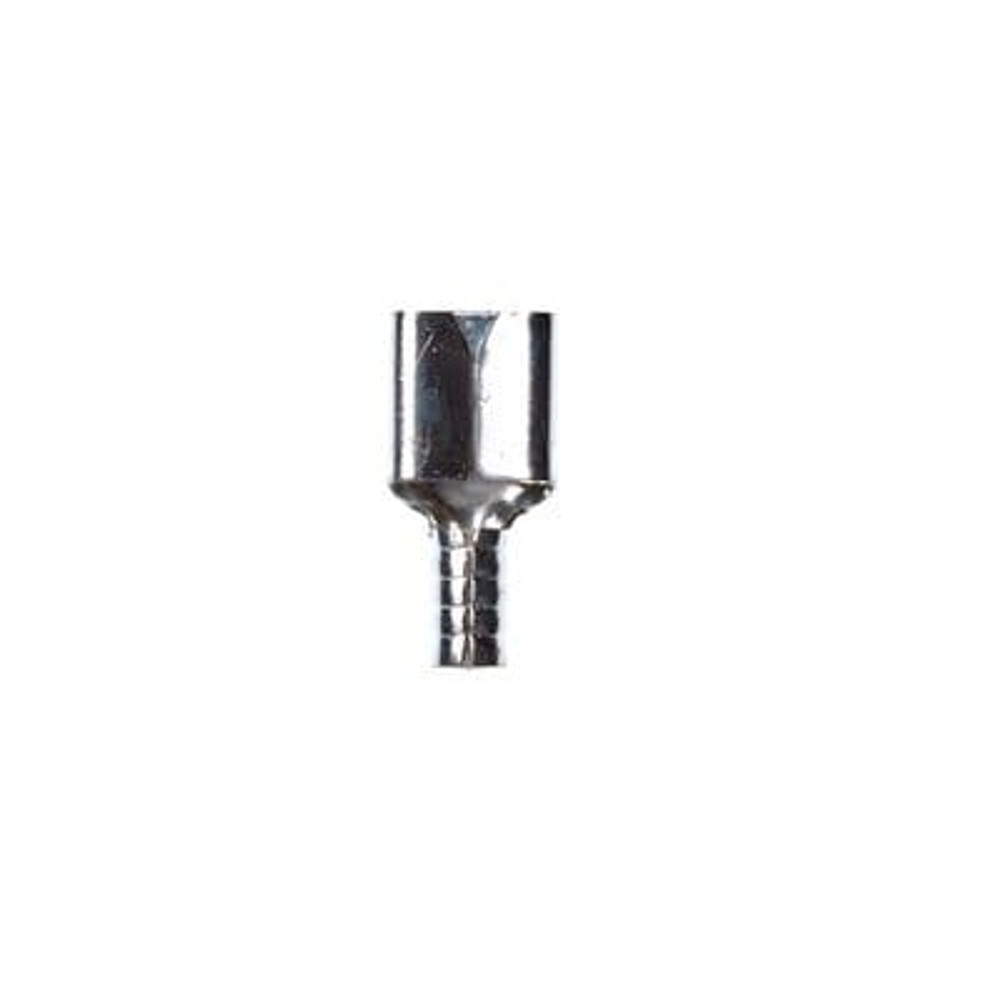

3M™ Scotchlok™ Female Disconnect Non-Insulated, 100/bottle, MU18-250DFX, 500/Case - 7010304199

Sold As: 500-Pack
SKU: 7010304199
MPN: 7010304199
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128587888
3M ID: 80611464340
5 Digit UPC: 58788
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Inside Diameter0.080 Inch
Pad Width0.25
Minimum Conductor Size (Metric).34 mm²
Disconnect TypeFemale
Terminal StyleStandard
Barrel StyleButted
Connection Width (Metric)6.35
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Maximum Conductor Size (Metric)1 mm²
Mates with Male Tab Width (W')0.250 Inch
Conductor Sizes (Imperial)22 - 18 AWG
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)0.66
Overall Length (Imperial) UOMin
Units per Case500.0
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.25
Insulation MaterialNon-insulated
Packaging100 per bottle
Terminal TypeDisconnect
Solution forWireless Network: Infrastructure Accessories
Mates with Female Width0.250 Inch
Tab Width0.250
UL File NumberE70512
Fastener OrientationFemale
