3M Products & Supplies

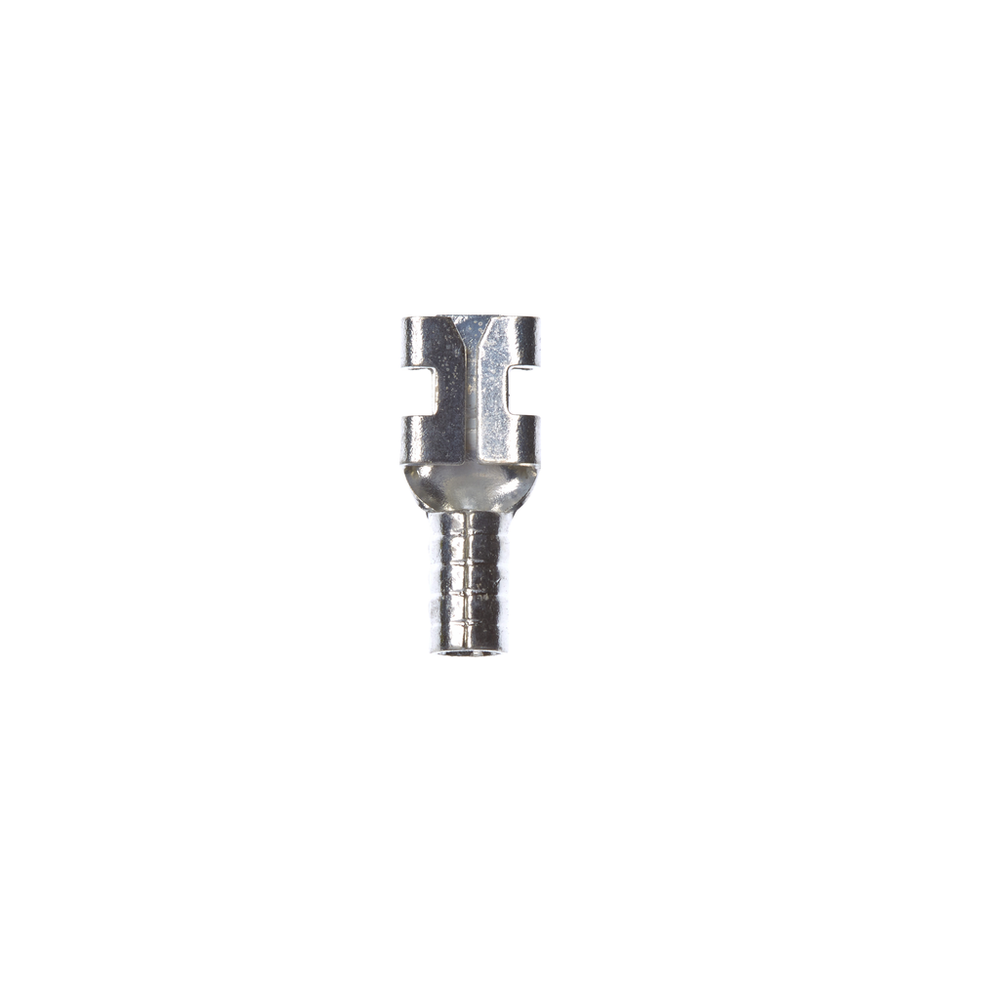

3M™ Scotchlok™ Female Disconnect Non-Insulated, 100/bottle, MU18-187DFX, 500/Case - 7010351310

Sold As: 500-Pack
SKU: 7010351310
MPN: 7010351310
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128590147
3M ID: 80611466600
5 Digit UPC: 59014
$41.57 ($0.08 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Solution forWireless Network: Infrastructure Accessories
UL File NumberE70512
Minimum Conductor Size (Metric).34 mm²
Units per Case500.0
Pad Width0.187
Maximum Conductor Size (Metric)1 mm²
Barrel StyleButted
Disconnect TypeFemale
Connection Width (Metric)4.75
Terminal TypeDisconnect
Mates with Female Width0.187 Inch
Barrel Inside Diameter0.085 Inch
Fastener OrientationFemale
Packaging100 per bottle
Insulation MaterialNon-insulated
Barrel Length (Imperial)0.25 Inch
Mates with Male Tab Width (W')0.187 Inch
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.58
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Connection Width (Imperial)0.187
Tab Width0.250
Overall Length (Imperial) UOMin
Terminal StyleStandard
