3M Products & Supplies

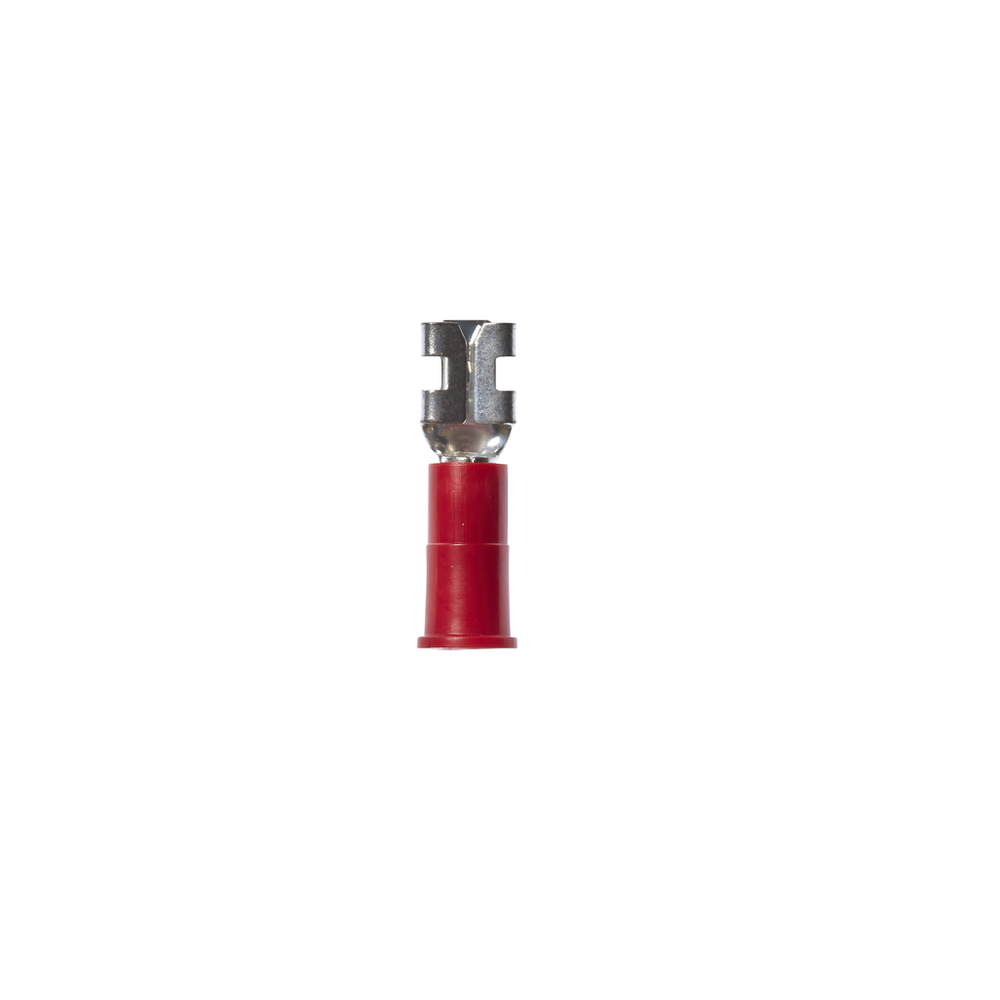

3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVU18-187DFX, 500/Case - 7010398230

Sold As: 100-Pack
SKU: 7010398230
MPN: 7010398230
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128590130
3M ID: 80611466592
5 Digit UPC: 59013
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Terminal TypeDisconnect
Mates with Male Tab Width (W')0.187 Inch
Connection Width (Metric)4.75
Maximum Insulation Outer Diameter (Imperial)0.145
Minimum Conductor Size (Imperial)22 AWG
Mates with Female Width0.187 Inch
Units per Case500.0
Pad Width0.187
Terminal StyleStandard
Fastener OrientationFemale
Barrel Length (Imperial)0.25 Inch
Disconnect TypeFemale
Connection Width (Metric) UOMmm
Packaging100 per bottle
UL File NumberE70512
Solution forWireless Network: Infrastructure Accessories
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Barrel StyleButted
Minimum Conductor Size (Metric).34 mm²
Maximum Conductor Size (Metric)1 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.187
Barrel Inside Diameter0.085 Inch
Overall Length (Imperial) UOMin
Insulation MaterialVinyl
Tab Width0.187
Overall Length (Imperial)0.78
