3M Products & Supplies

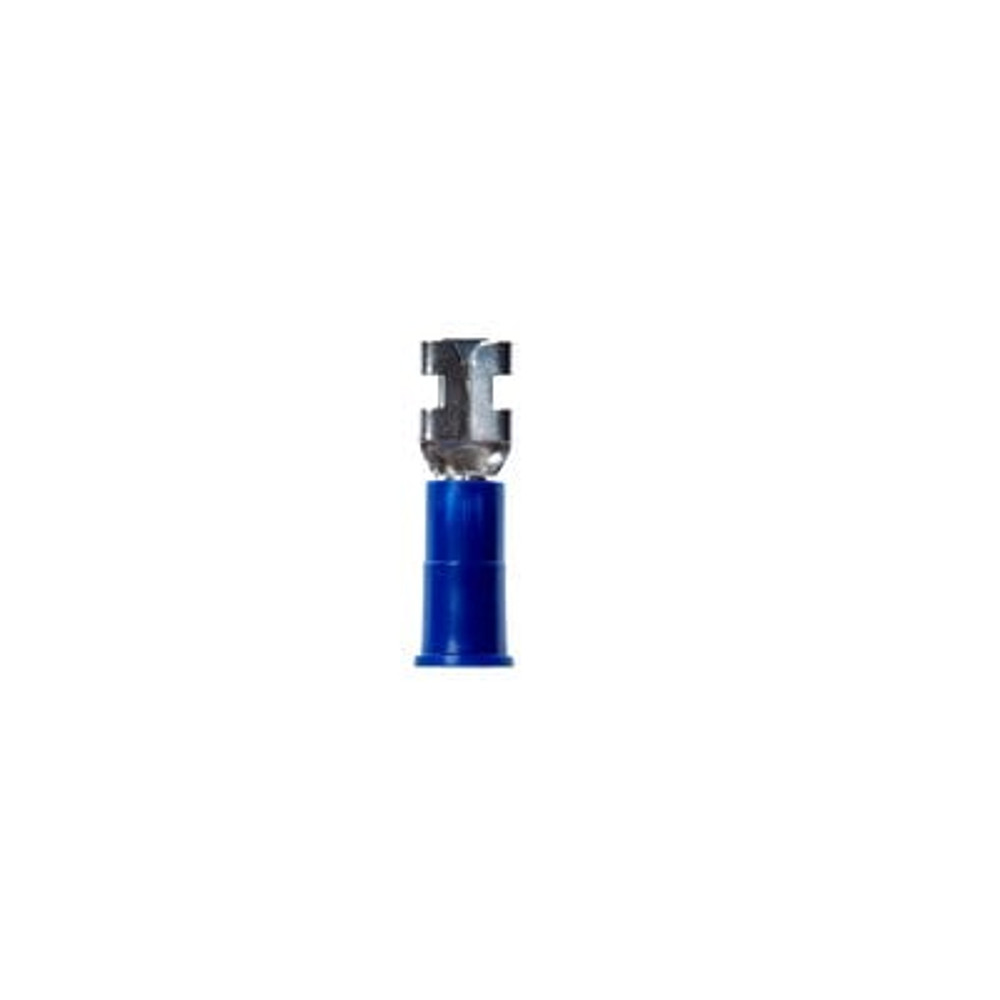

3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle, MVU14-187DFX, 500/Case - 7100033017

Sold As: 100-Pack
SKU: 7100033017
MPN: 7100033017
For an accurate lead time please contact us
UPC: 00051128586709
3M ID: 80611458151
5 Digit UPC: 58670
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force

Downloads

Specifications

Country of OriginUnited States
Fastener OrientationFemale
Overall Length (Imperial)0.78
Connection Width (Imperial)0.187
Maximum Conductor Size (Metric)2.5 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Terminal TypeDisconnect
Male Tab Width (W')0.187 Inch
Disconnect TypeFemale
Overall Length (Metric)19.812
Solution forWireless Network: Infrastructure Accessories
Mates with Female Width0.187 Inch
Terminal StyleStandard
Overall Length (Imperial) UOMin
Connection Width (Metric) UOMmm
Insulation MaterialVinyl
Mates with Male Tab Width (W')0.187 Inch
Units per Case500.0
Connection Width (Imperial) UOMin
Packaging100 per bottle
Connection Width (Metric)4.75
Overall Length (Metric) UOMmm
Tab Width0.250
Flame RetardantNo
Pad Width0.187
MaterialETP Copper
Minimum Conductor Size (Imperial)16 AWG
Product ColorBlue
Minimum Conductor Size (Metric)1.5 mm²
Maximum Conductor Size (Imperial)14 AWG
Grease Filling Against CorrosionNo
Barrel Inside Diameter0.085 Inch
Conductor Sizes (Imperial)16 - 14 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
UL File NumberE70512
Barrel StyleButted
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
