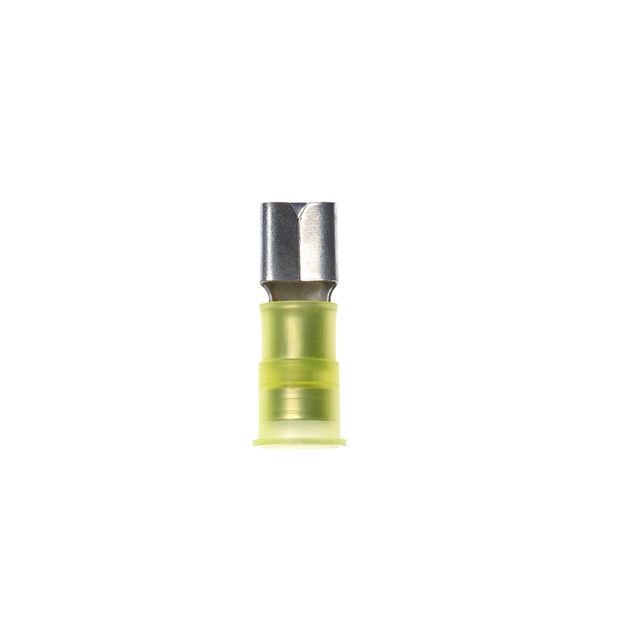

3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 50/bottle, MVI10-250DFX, 500/Case - 7000133403

Sold As: 50-Pack
SKU: 7000133403
MPN: 7000133403
For an accurate lead time please contact us
UPC: 00051128589366
3M ID: 80611465826
5 Digit UPC: 58936
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

The disconnects are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.

Features

  • Mates with 0.25-in wide male tab
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Insulation ColorYellow
Maximum Insulation Outside Diameter0.145 in
Maximum Operating Temperature (Celsius)105.0
Mates with Male Tab Width (W')0.25 Inch
Overall Diameter (Imperial)0.23
Minimum Conductor Size (Metric)4 mm²
Connection Width (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Connector / Connector ToolConnector
Connection Width (Imperial)0.25
Overall Length (Metric)24.13
Packaging50 per bottle
Connection Width (Metric) UOMmm
Connector StyleInsulation Displacement
Fork TypeStandard Fork
Overall Width (Imperial) UOMin
Units per Case500.0
Mates with Female Width0.250 Inch
Barrel StyleInterlocking Barrel
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Metric)3.7
Overall Diameter (Imperial) UOMin
Disconnect TypeFemale
Diameter (D)0.23 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
Overall Length (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial)0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Metric)6.35
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Conductor Sizes (Imperial)12 - 10 AWG
Overall Length (Imperial)0.95
Connection TypeWire
Interrupt Free ShiftingNo
Terminal TypeDisconnect
Fastener OrientationFemale
Barrel Inside Diameter0.128 Inch
MaterialETP Copper
Maximum Recommended Voltage Rating UOMV
Insulation MaterialVinyl
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Metric)6 mm²
Grease Filling Against CorrosionNo
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.37
UL File NumberE70512
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Recommended Voltage Rating600.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Pad Width0.25
Product ColorYellow
Flame RetardantNo
Maximum Conductor Size (Imperial)10 AWG
