3M Products & Supplies

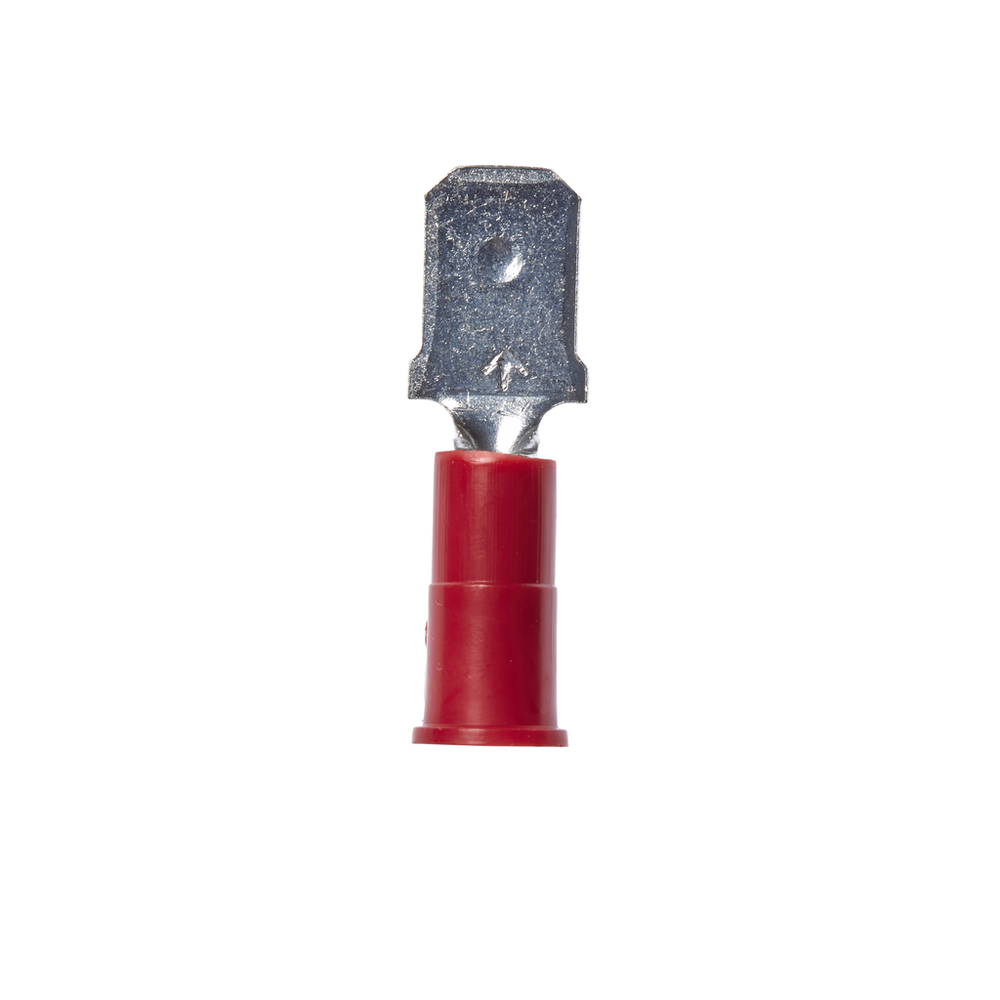

3M™ Scotchlok™ Male Disconnect Vinyl Insulated, 100/bottle, MVU18-250DMX, 500/Case - 7000133351

Sold As: 100-Pack
SKU: 7000133351
MPN: 7000133351
For an accurate lead time please contact us
UPC: 00051128587829
3M ID: 80611464282
5 Digit UPC: 58782
$97.39 ($0.97 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Features

  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
  • This male disconnect terminal offers excellent holding force

Specifications

Country of OriginUnited States
Pad Width0.25
Maximum Conductor Size (Metric)1 mm²
Connection Width (Imperial) UOMin
Conductor Sizes (Imperial)22 - 18 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
Insulation ColorRed
Maximum Insulation Outer Diameter (Metric) UOMmm
Diameter (D)0.39 Inch
Overall Length (Metric)23.6
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Diameter (Imperial)0.39
Solution forWireless Network: Infrastructure Accessories
Connection Width (Metric)6.35
Maximum Operating Temperature (Fahrenheit) UOMDegree
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Length (Imperial)0.93
Barrel Inside Diameter0.065 Inch
Maximum Recommended Voltage Rating600.0
Tab Width0.250
Minimum Conductor Size (Metric).34 mm²
Voltage ApplicationLow Voltage
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Metric) UOMmm
Disconnect TypeMale
Maximum Conductor Size (Imperial)18 AWG
Terminal StyleStandard
Barrel StyleButted
Connection Width (Metric) UOMmm
Packaging100 per bottle
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial)0.25
Product ColorRed
Terminal TypeDisconnect
Male Tab Width (W')0.250 Inch
Overall Diameter (Imperial) UOMin
Fastener OrientationMale
MaterialPlastic
Units per Case500.0
Maximum Recommended Voltage Rating UOMV
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
UL File NumberE70512
Maximum Operating Temperature (Celsius)105.0
