3M Products & Supplies

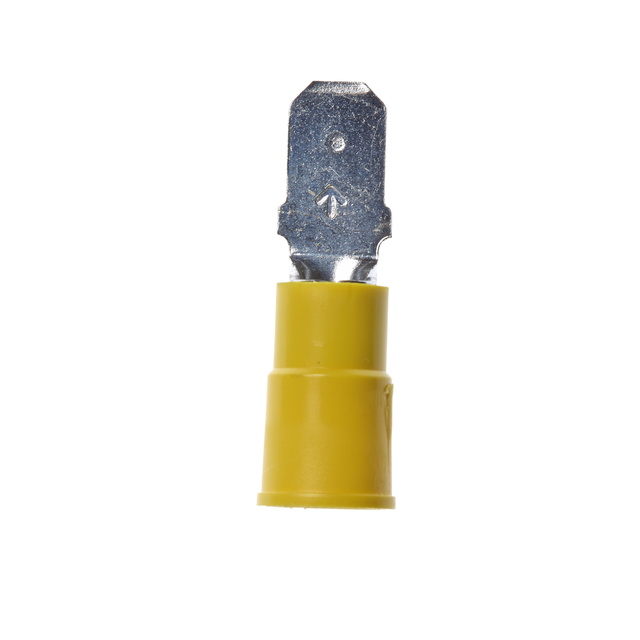

3M™ Scotchlok™ Male Disconnect Nylon Insulated, 50/bottle, MNG10-250DMX, 500/Case - 7000133310

Sold As: 500-Pack
SKU: 7000133310
MPN: 7000133310
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128587218
3M ID: 80611458664
5 Digit UPC: 58721
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Wider tongue design for use on free-standing studs
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Beveled mouth offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Overall Diameter (Imperial) UOMin
Pad Width0.25
UL File NumberE70512
Connection Width (Imperial)0.25
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric) UOMmm
Disconnect TypeMale
Maximum Operating Temperature (Fahrenheit)221.0
Barrel StyleInsulation Grip
Terminal TypeDisconnect
Insulation ColorYellow
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialNylon
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial) UOMin
Overall Length (Metric) UOMmm
Packaging50 per bottle
Maximum Conductor Size (Imperial)10 AWG
MaterialPlastic
Overall Length (Metric)26.67
Minimum Conductor Size (Imperial)12 AWG
Barrel Inside Diameter0.150 Inch
Fastener OrientationMale
Male Tab Width (W')0.250 Inch
Product ColorYellow
Voltage ApplicationLow Voltage
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)6 mm²
Maximum Insulation Outer Diameter (Imperial)0.25
Overall Diameter (Imperial)0.39
Overall Length (Imperial) UOMin
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)4 mm²
Overall Length (Imperial)1.05
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tab Width0.250
Diameter (D)0.39 Inch
Connection Width (Metric)6.35
Terminal StyleStandard
Maximum Recommended Voltage Rating UOMV
Units per Case500.0
Conductor Sizes (Imperial)12 - 10 AWG
Maximum Recommended Voltage Rating600.0
