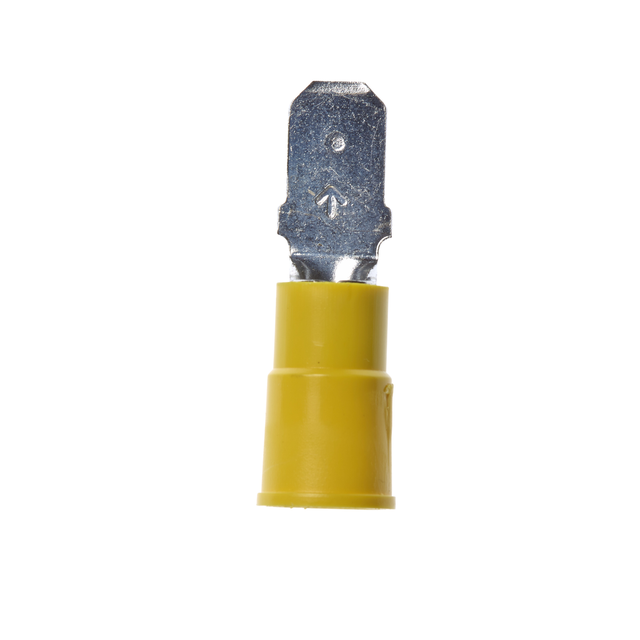

3M™ Scotchlok™ Male Disconnect Nylon Insulated, 50/bottle, MNG10-250DMIX, 500/Case - 7000133358

Sold As: 500-Pack
SKU: 7000133358
MPN: 7000133358
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128587935
3M ID: 80611464399
5 Digit UPC: 58793
$797.86 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • This male disconnect terminal offers excellent holding force
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

Country of OriginUnited States
Terminal TypeDisconnect
Insulation MaterialNylon with Insulation Grip
Connection Width (Imperial)0.25
Overall Length (Metric) UOMmm
Conductor Sizes (Imperial)12 - 10 AWG
Product ColorYellow
UL File NumberE70512
Male Tab Width (W')0.250 Inch
Overall Length (Imperial)1.05
Pad Width0.25
Overall Diameter (Imperial) UOMin
Packaging50 per bottle
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Disconnect TypeMale
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Barrel Inside Diameter0.250 Inch
Minimum Conductor Size (Imperial)12 AWG
Connection Width (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Celsius)105.0
Overall Width (Metric)11.93
Maximum Insulation Outer Diameter (Metric)3.7
Fastener OrientationMale
Overall Width (Imperial)0.47
Barrel StyleButted
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialPlastic
Voltage ApplicationLow Voltage
Maximum Conductor Size (Metric)6 mm²
Insulation ColorYellow
Overall Diameter (Imperial)0.39
Maximum Insulation Outer Diameter (Imperial)0.145
Minimum Conductor Size (Metric)4 mm²
Overall Length (Metric)26.67
Overall Width (Metric) UOMmm
Terminal StyleFully Insulated
Diameter (D)0.39 Inch
Units per Case500.0
Tab Width0.187
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection Width (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Connection Width (Metric)6.35
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
